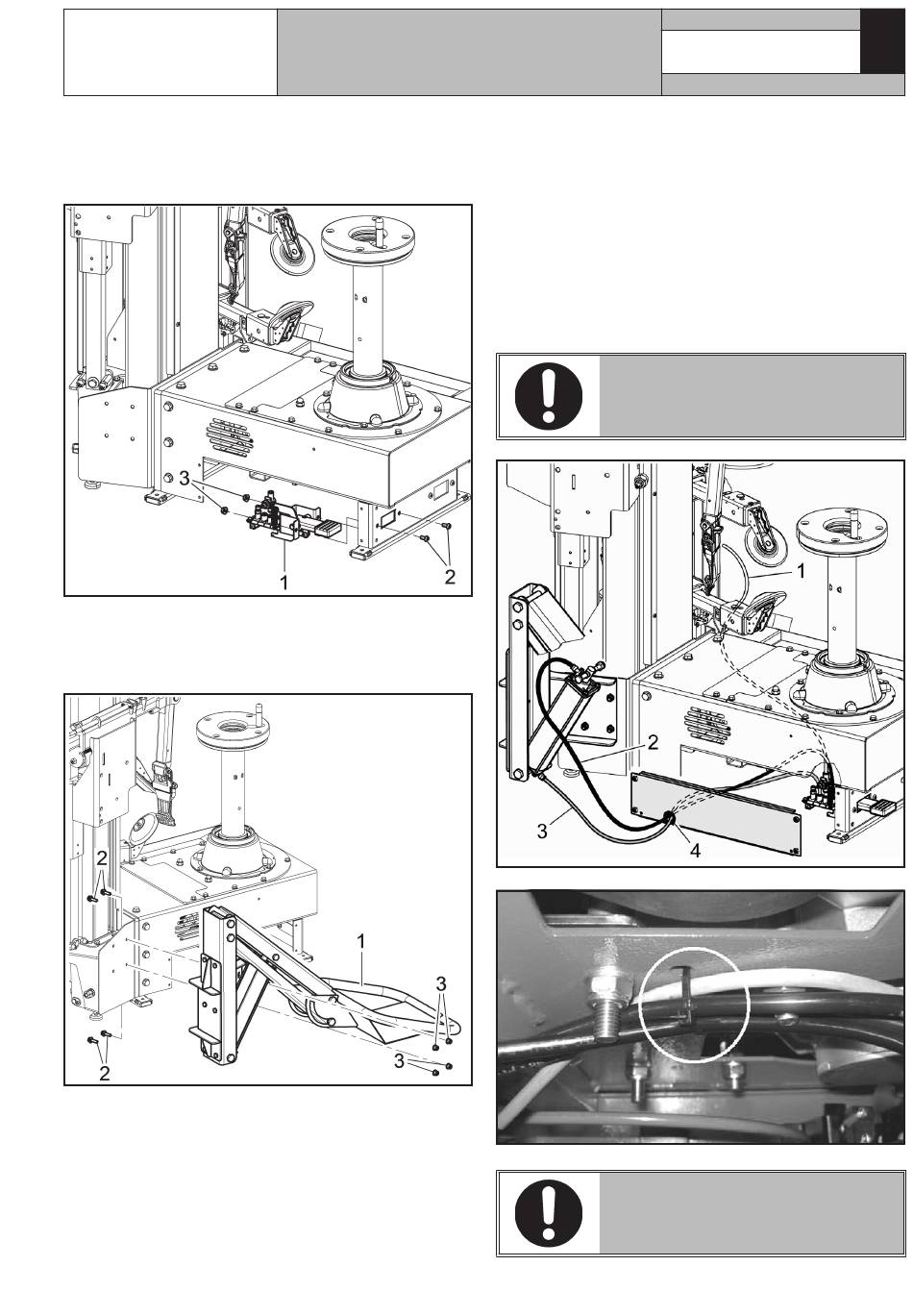

6 - Place the pedal support (Fig._5 ref._1)(#
710592000) from the inside next to hole left free.
Then fix with screws (Fig._5 ref._2)(# B1367300)
and nuts (Fig._5 ref._3)(# 228501), on issue.
Fig. 5
7 - Fix the lifting device (Fig._6 ref._1) (# 710591930)
to the tyre changer using screws (Fig._6 ref._2)
(# 272038) and nuts (Fig._6 ref._3) (# 228506),
on issue.
INSTRUCTIONS FOR
ASSEMBLY AND USE
8 - Fix the three pneumatic pipes (Fig._7 ref._1-2-3)
Fig. 6
Fig. 8
Page 10 of 19
G1000A99NP - G800A121NP
to the pedalboard, to the lifting cylinder and to the
machine as indicated in the figure.
- Pipe coming from the filter unit - pressure reducer
(# 317022) (L=1600 mm) (Fig._7 ref._1).
- Pipe coming from lifting device's cylinder (#
317022) (Fig._7 ref._2) (L= 1200 mm) (high
union).
- Pipe coming from the lifting device's cylinder (#
317022) (Fig._7 ref._3) (L= 1000 mm) (low
union).
BEFORE CONNECTING THE PIPES
(FIG. 7 REF. 2-3) MAKE SURE
THEY PASS THROUGH THE RUB-
BER FAIRLEAD (FIG. 7 REF . 4).
FASTEN THE PIPES AS SHOWN
IN FIG. 8, IN ORDER TO AVOID
THAT THEY INTERFERE WITH
THE BELT.
7105-M007-0
GB
Fig. 7
