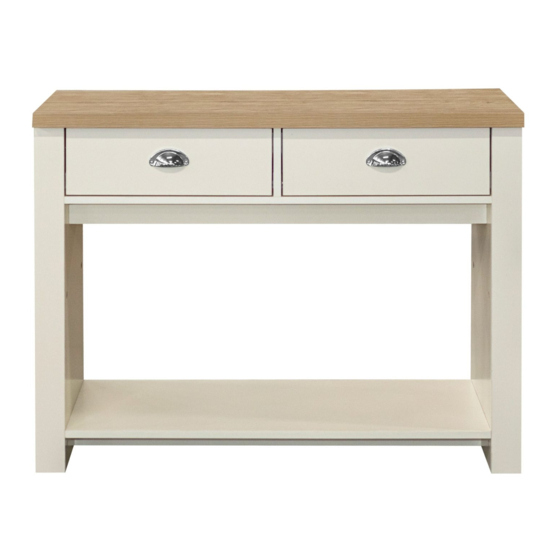

Summary of Contents for Birlea Highgate HIG2COTCRO
- Page 2 Always use on a level, even surface. It is recommended that two people handle and assemble the item. Birlea advise you use the wall straps provided to further enhance the safety of this product. CARE & MAINTENANCE: Assemble in the room of use.
-
Page 3: Parts List
Vendor: S000398 PARTS LIST HARDWARE LIST: Carton 1 of 1 Carton 1 of 1: Part Description Qty Part Description Top Panel CAM NUT 15mm Left Panel CAM BOLT Right Panel WOOD DOWEL M6 x 25mm Bottom Panel CSK SCREW M4 x 38mm Center Panel CSK SCREW M3.5 x 12mm Back Support Panel... - Page 4 Vendor: S000398 Insert hardware part A & part B using a screwdriver (not provided). Insert hardware part C using a small mallet (not provided). Insert hardware part J using a small mallet (not provided).Fix hardware H with screw E using screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim.
- Page 5 Insert hardware part A . Vendor: S000398 Attach the Left Front & Right Back Post Panel (10) and Left Back & Right Front Post Panel (11) to Left Panel (2) and Right Panel (3) by screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Fix hardware H with screw E using screwdriver (not provided).
- Page 6 Vendor: S000398 Attach the Center Support Panel (8) to Front Support Panel (7) using Screw (M) by screwdriver (not provided). Attach the Front and Back Support Panel (6) & (7) To Center Panel (5) using Screw (M) by screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim.
- Page 7 Vendor: S000398 Attach the Front and Back Support Panel (6) & (7) to Left Panel (2) by screwdriver (not provided). Attach the Bottom Panel (4) and Plinth Panel (9) to Left Panel (2) by screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Attach the Top Panel (1) to Left ,Right and Center Panel (2),(3)&(5) by screwdriver (not provided).
- Page 8 Vendor: S000398 Attach the Back Panel (17) with Nail (K) by small mallet (not provided). Fix Anti tip strap (N) with washer (M) and Screw (O) To Top Panel (1) by screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Attach the Drawer Left Panel (14) and Drawer Right Panel (15) to Drawer Back Panel (13) with screw (D)by screwdriver (not provided).
- Page 9 Vendor: S000398 Insert Drawer Bottom Panel (16) as shown and fix Drawer Front Panel (12) by screwdriver (not provided). Fix hardware (I) onto the Drawer Left Panel (14) and Drawer Right Panel (15) using screw (E) by screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim.
- Page 10 .If you have any issues with your item please contact the retailer directly you purchased it from who will be able to resolve any issues with Birlea. .Why don't you send us photos of your assembled furniture to info@birlea.com to be shared in our #birleahome feature on lnstagram.
