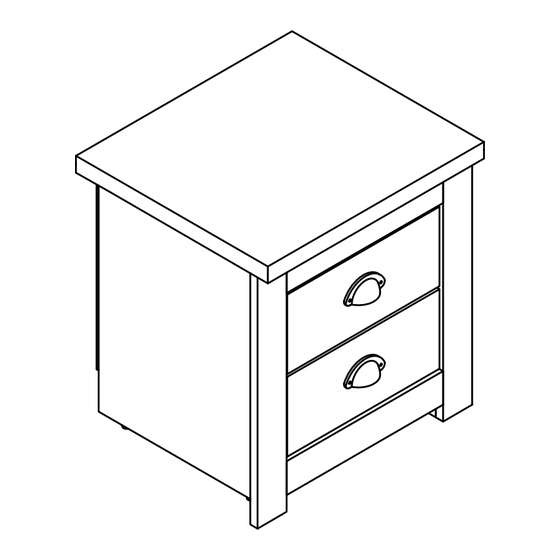

Birlea HIGHGATE 2 DRAWER BEDSIDE Assembly Instructions Manual
  1. Manuals
  2. Brands
  3. Birlea Manuals
  4. Indoor Furnishing
  5. HIGHGATE 2 DRAWER BEDSIDE
  6. Assembly instructions manual

Birlea HIGHGATE 2 DRAWER BEDSIDE Assembly Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Thank you for
purchasing a
Birlea product
Are you happy with your purchase?
Yes: That's great, we would love to hear more from you.
Please leave us a review on our Trustpilot link on the QR
code here. Your feedback will be greatly appreciated.
No: If for any reason there is something missing, indifferent or incorrect with
your order, please contact the retailer that you purchased your item from.
Please note that this items build time is around 30 minutes.
Assembly Instructions
www.birlea.com
For a chance to win a Love2Shop voucher
simply post a picture of your new product on
your preferred social channels tagging Birlea
Furniture. One winner will be selected at
random each month.
*Terms & conditions may apply.

Advertisement

loading
Need help?

Need help?

Do you have a question about the HIGHGATE 2 DRAWER BEDSIDE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Birlea HIGHGATE 2 DRAWER BEDSIDE

Summary of Contents for Birlea HIGHGATE 2 DRAWER BEDSIDE

  • Page 1 Thank you for For a chance to win a Love2Shop voucher simply post a picture of your new product on purchasing a your preferred social channels tagging Birlea Furniture. One winner will be selected at Birlea product random each month.

  • Page 2: Care And Maintenance

    Always use on a level, even surface. It is recommended that two people handle and assemble the item. Birlea advise you use the wall straps provided to further enhance the safety of this product. CARE & MAINTENANCE: Assemble in the room of use.
  • Page 3 Vendor: S000398 PARTS LIST HARDWARE LIST: Carton 1 of 1 Carton 1 of 1: Part Description Part Description CAM NUT 15mm Top Panel CAM BOLT Left Panel WOOD DOWEL M6 x 25mm Right Panel COUNTER SUNK SCREW M4 x 38mm Bottom Front Panel CSK SCREW M3.5 x 12mm Bottom Back Panel...
  • Page 4 Vendor: S000398 Insert hardware part A to panel 2 & 3. Insert hardware part B using a screwdriver (not provided). Insert hardware part C using a small mallet (not provided). Insert hardware part H using a small mallet (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim.
  • Page 5 Vendor: S000398 Attach the Left Front Post Panel (8) to Left Panel (2) and Right Front Post Panel (9) to Right Panel (3) by screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Insert hardware part A to panel 4,5,6 &...
  • Page 6 Vendor: S000398 Attach the Bottom Front Panel (4) and Bottom Back Panel (5) and Top Front Post Panel (6) and Bottom Front Post Panel (7) to Left Panel (2) and Left Front Post Panel (8) and Right Panel (3) and Right Front Post Panel (9) by screwdriver (not provided).
  • Page 7 Vendor: S000398 Attach the Top Panel (1) to Left Panel (2) and Right Panel (3) and Top Front Post Panel (6) by screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Attach the Back Panel (15) with Nail (I) by small mallet (not provided).
  • Page 8 Insert hardware part A to panel 12 & 13. Insert hardware part C using a small mallet (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. 12 x2pcs 13 x2pcs Attach the Drawer Left Panel (12) and Drawer Right Panel (13) to Drawer Back Panel (11) with screw (D) by screwdriver (not provided).
  • Page 9 Vendor: S000398 Insert hardware part B using a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. 10 x2pcs Insert Drawer Bottom Panel (14) as shown and fix Drawer Front Panel (10) by screwdriver (not provided).
  • Page 10 Vendor: S000398 Fix Handle (K) using screw (J) onto Drawer Front Panel (10) by screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Page 9 of 10...
  • Page 11 .If you have any issues with your item please contact the retailer directly you purchased it from who will be able to resolve any issues with Birlea. .Why don't you send us photos of your assembled furniture to info@birlea.com to be shared in our #birleahome feature on lnstagram.
