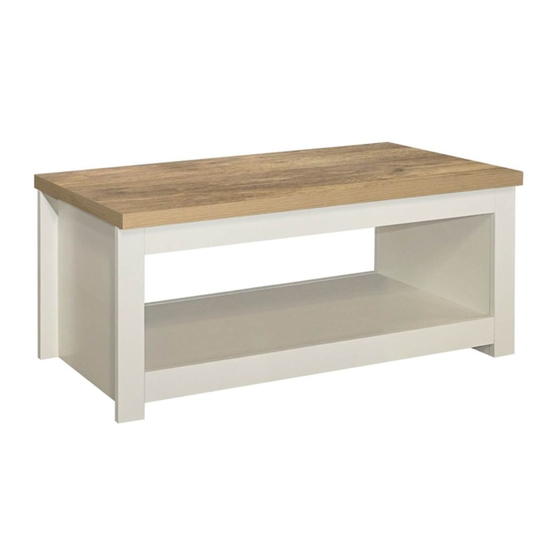

Summary of Contents for Birlea Highgate HIGCTCRO
- Page 2 Always use on a level, even surface. It is recommended that two people handle and assemble the item. Birlea advise you use the wall straps provided to further enhance the safety of this product. CARE & MAINTENANCE: Assemble in the room of use.
- Page 3 Vendor: S000398 PARTS LIST HARDWARE LIST: Carton 1 of 1 Carton 1 of 1: Part Description Part Description CAM NUT 15mm Top Panel CAM BOLT Left Panel & Right Panel WOOD DOWEL M6 x 25mm Bottom Panel PVC NAIL Plinth Panel Top Front &...
- Page 4 Vendor: S000398 Insert hardware part A & part B using a screwdriver (not provided). Insert hardware part C using a small mallet (not provided). Insert hardware part D using a small mallet (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. 7 x2pcs 2 x2pcs 5 x2pcs...
- Page 5 Vendor: S000398 Attach the Left Front & Right Back Post Panel (7) and Right Front & Left Back Post Panel (8) to Top Front & Top Back Post Panel (5) and Bottom Front & Bottom Back Post Panel (6) by screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim.
- Page 6 Vendor: S000398 Attach the Left Panel & Right Panel (2) to Bottom Panel (3) and Bottom Support Panel (4) and Top Support Panel (9) by screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Attach the Bottom Front &...
- Page 7 .If you have any issues with your item please contact the retailer directly you purchased it from who will be able to resolve any issues with Birlea. .Why don't you send us photos of your assembled furniture to info@birlea.com to be shared in our #birleahome feature on lnstagram.
