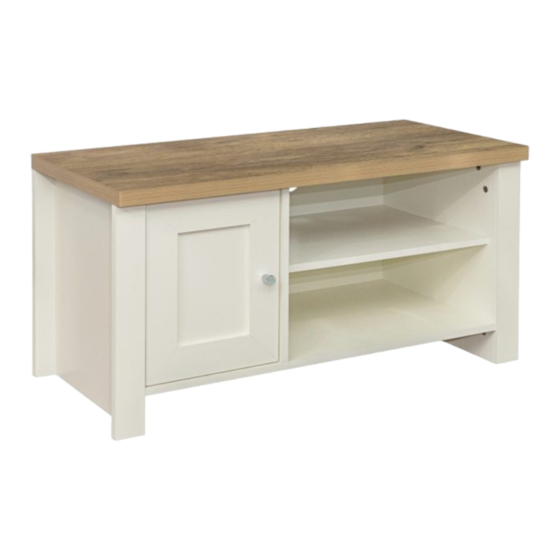

Summary of Contents for Birlea Highgate HIGSTVCRO
- Page 2 Always use on a level, even surface. It is recommended that two people handle and assemble the item. Birlea advise you use the wall straps provided to further enhance the safety of this product. CARE & MAINTENANCE: Assemble in the room of use.
- Page 3 Vendor: S000398 PARTS LIST HARDWARE LIST: Carton 1 of 1 Carton 1 of 1: Part Description Part Description CAM NUT 15mm Top Panel CAM BOLT Bottom Panel WOOD DOWEL M6 x 25mm Divider Panel PVC NAIL Left Panel CSK SCREW M4 x 45mm Right Panel CSK SCREW M4 x 16mm Shelf Panel...
- Page 4 Vendor: S000398 Insert hardware part A & part B using a screwdriver (not provided). Insert hardware part C using a small mallet (not provided). Insert hardware part D using a small mallet (not provided). Fix Hinges (G) using Screw (F) by screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim.
- Page 5 Vendor: S000398 Attach the Divider Panel (3) to Shelf Panel (6) by screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Attach the Plinth Panel (7) to Bottom Panel (2) by screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim.
- Page 6 Vendor: S000398 Attach the Divider Panel (3) to Bottom Panel (2) with Screw (E) by screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Attach the Right Front & Left Back Post Panel (8) and Left Front & Right Back Post Panel (9) to Left Panel (4) and Right Panel (5) by screwdriver (not provided).
- Page 7 Vendor: S000398 Attach the Right Panel (5) to Shelf Panel (6) and Bottom Panel (2) and Plinth Panel (7) by screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Attach the Left Panel (4) to Bottom Panel (2) and Plinth Panel (7) by screwdriver (not provided).
- Page 8 Vendor: S000398 Attach the Top Panel (1) to Divider Panel (3) and Left Panel (4) and Right Panel (5) by screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Attach the Back Panel (11) with Nail (J) by small mallet (not provided).
- Page 9 .If you have any issues with your item please contact the retailer directly you purchased it from who will be able to resolve any issues with Birlea. .Why don't you send us photos of your assembled furniture to info@birlea.com to be shared in our #birleahome feature on lnstagram.
