Birlea Highgate HIG2CTCRO Assembly Instructions Manual

Birlea Highgate HIG2CTCRO Assembly Instructions Manual

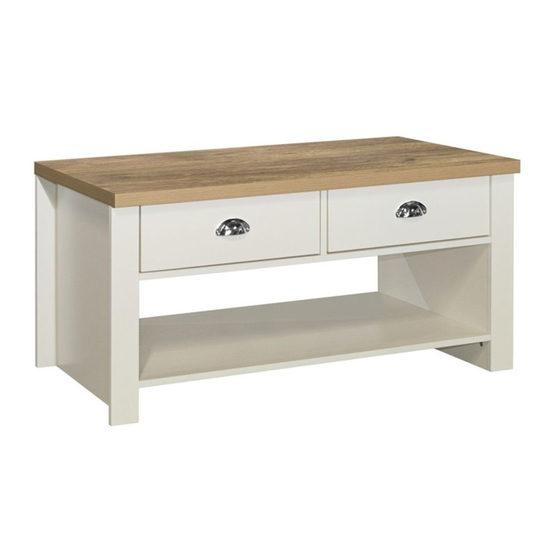

2 drawer coffee table

Advertisement

Quick Links

Advertisement

loading
Need help?

Need help?

Do you have a question about the Highgate HIG2CTCRO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Birlea Highgate HIG2CTCRO

  • Page 2 Always use on a level, even surface. It is recommended that two people handle and assemble the item. Birlea advise you use the wall straps provided to further enhance the safety of this product. CARE & MAINTENANCE: Assemble in the room of use.
  • Page 3: Parts List

    Vendor: S000398 PARTS LIST HARDWARE LIST: Carton 1 of 1 Carton 1 of 1: Part Description Qty Part Description Top Panel CAM NUT 15mm Left Panel CAM BOLT Right Panel WOOD DOWEL M6 x 25mm Bottom Panel CSK SCREW M4 x 38mm Center Panel CSK SCREW M3.5 x 12mm Back Support Panel...
  • Page 4 Vendor: S000398 Insert hardware part A & part B using a screwdriver (not provided). Insert hardware part C using a small mallet (not provided). Insert hardware part J using a small mallet (not provided). Fix hardware H with screw E using screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim.
  • Page 5 Vendor: S000398 Insert hardware part A as Shown. Attach the Left Front & Right Back Post Panel (9) and Right Front & Left Back Post Panel(10) To Left Panel (2) and Right Panel (3) by screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Attach the Back Support Panel (6) and Front Support Panel (7) to Center Panel (5) using Screw (K) by screwdriver (not provided).
  • Page 6 Vendor: S000398 Attach the Front and Back Support Panel(6) & (7) to Right Panel (3) by screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Attach the Bottom and Plinth Panel(4) & (8) to Right Panel (3) by screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim.
  • Page 7 Vendor: S000398 Attach the Front Support Panel (7), Back Support Panel(6), Bottom and Plinth Panel (4) & (8) to Left Panel (2) by screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Attach the Top Panel (1) to Left ,Right , Center Panel (2),(3) &...
  • Page 8 Vendor: S000398 Attach the Drawer Left Panel (13) and Drawer Right Panel (14) to Drawer Back Panel (12) with screw (D)by screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. x2 sets Insert Drawer Bottom Panel (15) as shown and fix Drawer Front Panel (11) by screwdriver (not provided).
  • Page 9 .If you have any issues with your item please contact the retailer directly you purchased it from who will be able to resolve any issues with Birlea. .Why don't you send us photos of your assembled furniture to info@birlea.com to be shared in our #birleahome feature on lnstagram.
