Summary of Contents for Birlea 135CM HOUSTON BED

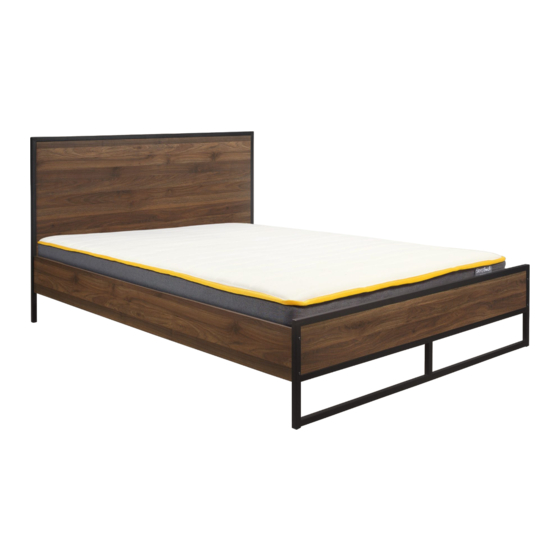

- Page 2 ASSEMBLY INSTRUCTIONS 135CM HOUSTON BED IMPORTANT : READ THESE INSTRUCTIONS CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE OR USE YOUR 135CM HOUSTON BED . PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. ASSEMBLY: Assembly should be carried out with this item laying flat, not standing upright.
- Page 3 Vendor: S000350 Parts List Hardware List ( BOX 2 ) Part Descripion Qty Part Description Headboard panel JCBC Screw M6 x 60mm Footboard panel JRN Nut Bed side rail ( Left ) Allen key M4 Bed side rail ( Right ) M3.5 x 16mm C.B Screw Center rail M4 x 38mm C.B Screw...
- Page 4 Vendor: S000350 Step 2: Fix bed side rail (3) and (4) to headboard panel (1) and footboard panel (2) using hardware part A, B and C. Please note that do not fully tighten the hardware A before assembling the center rail (5). DO NOT use any power tools as this may damage the frame and will invalidate any claim.
- Page 5 If you have any issues with your item please contact the retailer directly you purchased it from who will be able to resolve any issues with Birlea. · Why don't you send us photos of your assembled furniture to info@birlea.com to be shared in our #birleahome feature on instagram. Page...
