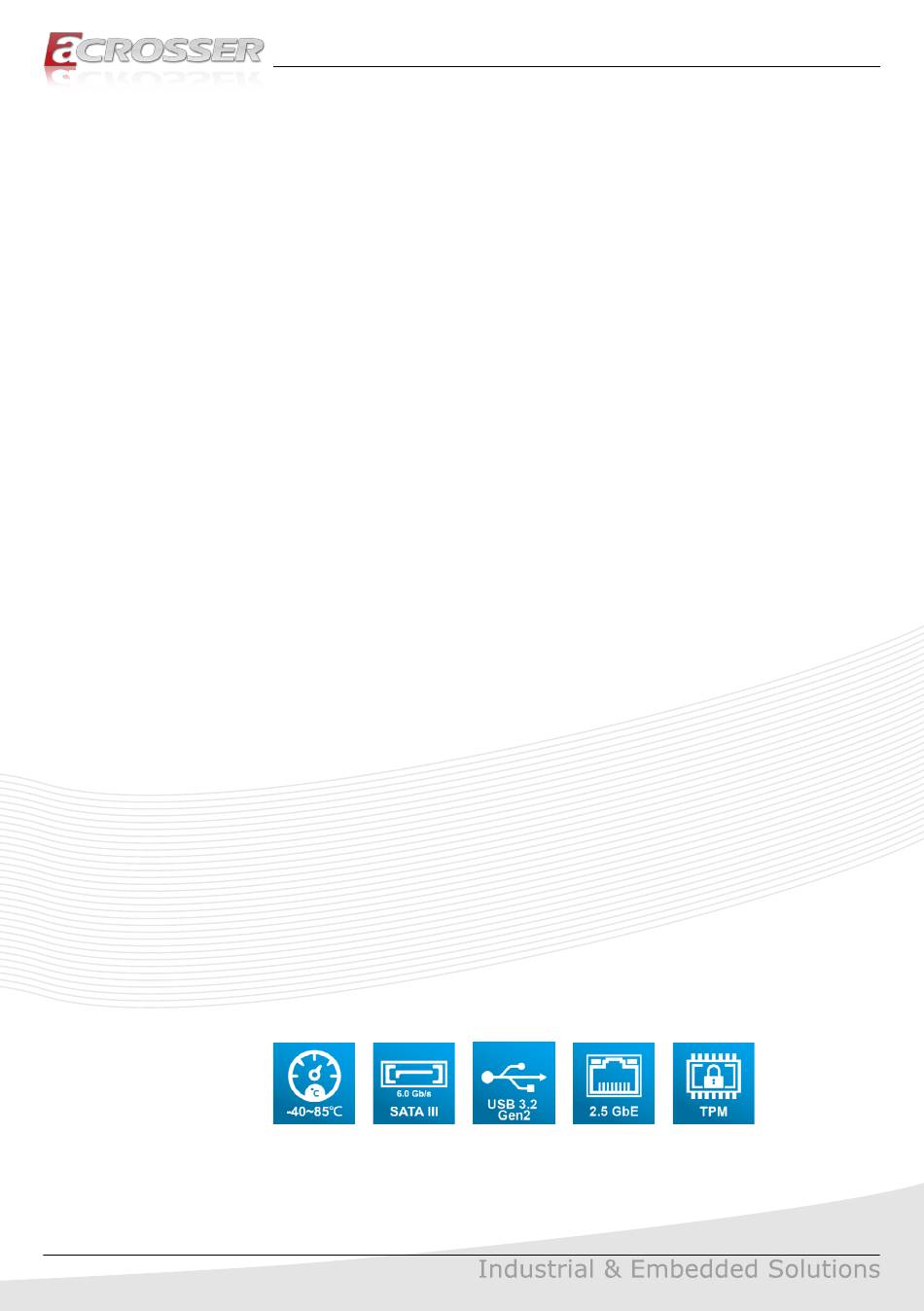

- Page 1 ACM-EL6KE0-Ax ACM-EL6KE0-Ax COM Express Mini Module Type 10 ® with Intel Elkhart Lake User Manual Acrosser Technology Co., Ltd. www.acrosser.com...
- Page 2 Acrosser Technology Co., Ltd. In no event will Acrosser Technology Co., Ltd. be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.
-
Page 3: Table Of Contents
ACM-EL6KE0-Ax Table of Contents 1. Introduction ..............5 1.1. Specifications ......................5 1.2. Packing List ........................ 6 1.3. Block Diagram ......................7 2. Hardware Information ...........8 2.1. Mainboard Layout ....................... 8 2.2. Row A/B Pin Assignments (CN1)................9 2.3. Board Dimension ...................... 13 3. - Page 4 5.1. I/O Information ......................42 5.1.1. I/O Address Map ................... 42 5.1.2. Memory Address Map ................... 43 5.1.3. IRQ Mapping Chart ..................44 6. FAQ ................45 Q 1. Where can I find the serial number of this product? ..........45 Acrosser Technology Co., Ltd.
-
Page 5: Introduction

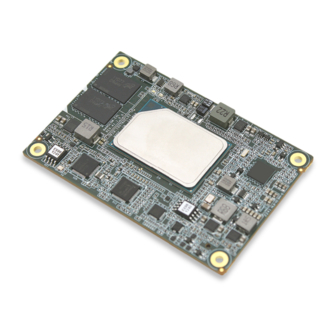

ACM-EL6KE0-Ax Introduction Introducing the latest addition to Acrosser's COM Express Type 10 product line - the ACM-EL6KE0-Ax. Powered by an Intel Elkhart Lake entry-level processor, this product boasts an impressive 16GB DDR4 memory and 64GB EMMC on board, making it stand out from the Standard Type 10 with 4 PCIe x1 Lanes. With its mini form factor of just 84mm x 55mm, it meets the popular COM Express standard and can easily fulfill all of your embedded requirements, bringing your ideas to life. -
Page 6: Packing List
84 mm x 55 mm (3.31" x 2.17") COM Express type 10 Safety • CE, FCC Class A 1.2. Packing List Check if the following items are included in the package. Item Q’ty ACM-EL6KE0-A1 � or ACM-EL6KE0-A2 CPU Cooler � Acrosser Technology Co., Ltd. -
Page 7: Block Diagram
ACM-EL6KE0-Ax 1.3. Block Diagram www.acrosser.com... -
Page 8: Hardware Information
ACM-EL6KE0-Ax Hardware Information 2.1. Mainboard Layout Top View Bottom View Acrosser Technology Co., Ltd. -
Page 9: Row A/B Pin Assignments (Cn1)
ACM-EL6KE0-Ax 2.2. Row A/B Pin Assignments (CN1) Pin # Row A Pin # Row B GND (FIXED) GND (FIXED) GBE0_MDI3- GBE0_ACT# GBE0_MDI3+ LPC_FRAME# GBE0_LINK1000# LPC_AD0 GBE0_LINK2500# LPC_AD1 GBE0_MDI2- LPC_AD2 GBE0_MDI2+ LPC_AD3 GBE0_LINK# N.C. GBE0_MDI1- N.C. A10 GBE0_MDI1+ B10 LPC_CLK A11 GND (FIXED) B11 GND (FIXED) A12 GBE0_MDI0- B12 PWRBTN#... - Page 10 B58 PCIE_RX3+ A59 PCIE_TX3- B59 PCIE_RX3- A60 GND (FIXED) B60 GND (FIXED) A61 PCIE_TX2+ B61 PCIE_RX2+ A62 PCIE_TX2- B62 PCIE_RX2- A63 GPI1 B63 GPO3 A64 PCIE_TX1+ B64 PCIE_RX1+ A65 PCIE_TX1- B65 PCIE_RX1- A66 GND B66 WAKE0# Acrosser Technology Co., Ltd.
- Page 11 ACM-EL6KE0-Ax Pin # Row A Pin # Row B A67 GPI2 B67 WAKE1# A68 PCIE_TX0+ B68 PCIE_RX0+ A69 PCIE_TX0- B69 PCIE_RX0- A70 GND (FIXED) B70 GND (FIXED) A71 LVDS_A0+( EDP_TX2_P) B71 DDI0_PAIR0+ A72 LVDS_A0-( EDP_TX2_N) B72 DDI0_PAIR0- A73 LVDS_A1+( EDP_TX1_P) B73 DDI0_PAIR1+ A74 LVDS_A1-( EDP_TX1_N) B74 DDI0_PAIR1-...
- Page 12 B102 FAN_TACHIN A103 LID# B103 SLEEP# A104 VCC_12V B104 VCC_12V A105 VCC_12V B105 VCC_12V A106 VCC_12V B106 VCC_12V A107 VCC_12V B107 VCC_12V A108 VCC_12V B108 VCC_12V A109 VCC_12V B109 VCC_12V A110 GND (FIXED) B110 GND (FIXED) Acrosser Technology Co., Ltd.
-
Page 13: Board Dimension
ACM-EL6KE0-Ax 2.3. Board Dimension (Unit: mm) www.acrosser.com... - Page 14 ACM-EL6KE0-Ax Acrosser Technology Co., Ltd.
-
Page 15: Bios Settings
ACM-EL6KE0-Ax BIOS Settings The AMI BIOS ROM has a pre-installed Setup program that allows users to modify basic system configurations, which is stored in the battery-backed CMOS RAM and BIOS NVRAM so that the information is retained when the power is turned off. To enter BIOS Setup, press <Del>... -
Page 16: Advanced Setup
ACM-EL6KE0-Ax 3.2. Advanced Setup 3.2.1. Graphics Configuration Acrosser Technology Co., Ltd. -
Page 17: Lvds Panel Configuration
ACM-EL6KE0-Ax 3.2.1.1. LVDS Panel Configuration • LVDS Enable/Disable LVDS. • Panel Type Select LCD panel used by internal graphics device by selecting the appropriate setup item. • Color Depth Select panel type. • Backlight Mode Select backlight control signal type www.acrosser.com... -
Page 18: Cpu Configuration
Disabled for other OS (OS not optimized for Hyper-Threading Technology). • Intel(R) SpeedStep(tm) Allows more than two frequency ranges to be supported. • Intel (VMX) Virtualization Technology VMM can utilize the additional hardware capabilities provided by Vanderpool Technology. Acrosser Technology Co., Ltd. -
Page 19: Memory Configuration
ACM-EL6KE0-Ax 3.2.3. Memory Configuration 3.2.4. On-Module H/W Monitor www.acrosser.com... -
Page 20: Fan 1 Mode Configuration
ACM-EL6KE0-Ax 3.2.4.1. Fan 1 Mode Configuration Fan 1: Full Mode Fan 1: Manual Mode by PWM Acrosser Technology Co., Ltd. -
Page 21: Pch-Fw Configuration
ACM-EL6KE0-Ax Fan 1: Auto Mode by PWM 3.2.5. PCH-FW Configuration www.acrosser.com... -
Page 22: Firmware Update Configuration
ACM-EL6KE0-Ax 3.2.5.1. Firmware Update Configuration • Me FW Image Re-Flash Enable/Disable Me FW Image Re-Flash function. • Local FW Update Enable/Disable ME FW Update function. Acrosser Technology Co., Ltd. -
Page 23: On-Module Configuration
ACM-EL6KE0-Ax 3.2.6. On-Module Configuration • Battery Management Enable to support battery in ACPI OS by I2C_CK, I2C_DAT. • EC-SMB-HC Support SMBus Host Controller Interface via Embedded Controller. www.acrosser.com... -
Page 24: Power Management
RTC wake system from S5 Fixed Time: System will wake on the hr:min:sec specified. Dynamic Time: System will wake on the current time + Increase minute(s) Bypass: BIOS will not control RTC wake function during system shutdown Acrosser Technology Co., Ltd. -
Page 25: Bios Robot
ACM-EL6KE0-Ax 3.2.8. BIOS Robot • Sends watch dog before BIOS POST Robot set Watch Dog Timer (WDT) right after power on, before BIOS start POST process. And then Robot will clear WDT on completion of POST. WDT will reset system automatically if it is not cleared before its timer counts down to zero. •... -
Page 26: Device Detecting Configuration
Soft or hard reset Select reset type robot should send on each boot. • Retry-Count Robot will reset system at most counter times, and then let system continue its POST. • At time Select robot action time. Acrosser Technology Co., Ltd. -
Page 27: Device #1~5 Detecting Configuration
ACM-EL6KE0-Ax 3.2.8.1.1. Device #1~5 Detecting Configuration • Robot detects device with Interface Select interface robot should use to communication with device. 3.3. System I/O Setup www.acrosser.com... -
Page 28: Pci Express Configuration
ACM-EL6KE0-Ax 3.3.1. PCI Express Configuration • PCIe Controller1 Select PCIE Controller Selection. • PCI Express 0/1/2/3 Control the PCI Express Root Port. • PCIe Speed Configure PCIe Speed. • Hot Plug PCI Express Hot Plug Enable/Disable. Acrosser Technology Co., Ltd. -
Page 29: Storage Configuration
ACM-EL6KE0-Ax 3.3.2. Storage Configuration • SATA Controller(s) Enable/Disable SATA Device. • Port x Enable or Disable SATA Port. • Hot Plug Designates this port as Hot Pluggable. • SATA Device Type Identify the SATA port is connected to Solid State Drive or Hard Disk Drive. www.acrosser.com... -
Page 30: Hd Audio Configuration
ACM-EL6KE0-Ax 3.3.3. HD Audio Configuration • HD Audio Control Detection of the HD-Audio device. 3.3.4. Digital IO Port Configuration Acrosser Technology Co., Ltd. -
Page 31: Sio Configuration
ACM-EL6KE0-Ax • GPI0/1/2/3 GPO0/1/2/3 Set DIO as Input or Output. • Output Level Set output level when DIO pin is output. 3.3.5. SIO Configuration www.acrosser.com... -
Page 32: Serial Port X Configuration
3.3.5.1. Serial Port x Configuration • Use This Device Enable or Disable this Logical Device. • Possible Allows the user to change the device resource settings. New settings will be reflected on this setup page after system restarts. Acrosser Technology Co., Ltd. -
Page 33: Serial Port Console Redirection
ACM-EL6KE0-Ax 3.3.6. Serial Port Console Redirection • COM0 Console Redirection Console Redirection Enable or Disable. • Console Redirection EMS Serial Port for Out-of-Band Management/ Windows Emergency Management Services (EMS) Console Redirection Enable or Disable. www.acrosser.com... -
Page 34: Scs Configuration
5.1 HS400 Mode Enable or Disable SCS eMMC 5.1 HS400 Mode • Enable HS400 software tuning Software tuning should improve eMMC HS400 stability at the expense of boot time • Driver Strength Sets I/O driver strength Acrosser Technology Co., Ltd. -
Page 35: Security Setup
ACM-EL6KE0-Ax 3.4. Security Setup • Change User/Administrator Password You can set an Administrator Password or User Password. An Administrator Password must be set before you can set a User Password. The password will be required during boot up, or when the user enters the Setup utility. A User Password does not provide access to many of the features in the Setup utility. -
Page 36: Trusted Computing
Schedule an operation for the security device. • Platform Hierarchy Enable or Disable Platform Hierarchy • Storage Hierarchy Enable or Disable Storage Hierarchy • Endorsement Hierarchy Enable or Disable Endorsement Hierarchy • TPM2.0 UEFI Spec Version Select the TCG2 Select Version Support Acrosser Technology Co., Ltd. -
Page 37: Secure Boot
ACM-EL6KE0-Ax • Physical Presence Spec Version Select to Tell O.S. to support PPI Spec Version 1.2 or 1.3. • Device Select Device select 3.4.2. Secure Boot • Secure Boot Secure Boot feature is Active if Secure is Enabled, Platform Key (PK) is enrolled and the System is in User mode. -
Page 38: Key Management
ACM-EL6KE0-Ax 3.4.2.1. Key Management 3.5. Boot Setup • Quiet Boot Enable or Disable showing boot logo. Acrosser Technology Co., Ltd. -
Page 39: Save & Exit Setup
ACM-EL6KE0-Ax • Network Stack Enable/Disable UEFI Network Stack. • Boot Option #1 Boot Option #2 Boot Option #3 Boot Option #4 Boot Option #5 Sets the system boot order for FIXED BOOT ORDER Priorities. 3.6. Save & Exit Setup www.acrosser.com... -
Page 40: Drivers Installation
1. Open the LAN Drivers folder 2. Run the Wired_PROSet_27.3_x64.exe file 3. Follow the instructions 4. Drivers will be installed automatically • Step 4 – Install ME Drivers 1. Open the ME Drivers folder 2. Run the SetupME.exe file Acrosser Technology Co., Ltd. - Page 41 ACM-EL6KE0-Ax 3. Follow the instructions 4. Drivers will be installed automatically • Step 5 – Install Audio Drivers 1. Open the Audio Drivers folder 2. Run the Setup.exe file 3. Follow the instructions 4. Drivers will be installed automatically • Step 6 –...
-
Page 42: Appendix
ACM-EL6KE0-Ax Appendix 5.1. I/O Information 5.1.1. I/O Address Map Acrosser Technology Co., Ltd. -
Page 43: Memory Address Map
ACM-EL6KE0-Ax 5.1.2. Memory Address Map www.acrosser.com... -
Page 44: Irq Mapping Chart
ACM-EL6KE0-Ax 5.1.3. IRQ Mapping Chart Acrosser Technology Co., Ltd. -
Page 45: Faq
ACM-EL6KE0-Ax Q 1. Where can I find the serial number of this product? • The serial number (S/N) is a label printed with alpha-numeric character. You can find the S/N label on the bottom of this product or on its packing box. www.acrosser.com... - Page 46 ACM-EL6KE0-Ax Technical Support Form We deeply appreciate your purchase of Acrosser products. Please find the “tech_form. doc” file in our utility CD. If you have any questions or problems about Acrosser products, please fill in the following information. We will answer your questions in the shortest time possible.
- Page 47 Acrosser Headquarters Acrosser Nanjing Office 欣扬通电子有限公司 南京办事处 241402新北市三重區重新路5段609巷4號3樓之8 江苏省南京市江宁区天元东路228号504室 Rm. 8, 3F., No. 4, Ln. 609, Sec. 5, Chongxin Rd., (邮编: 211100) Sanchong Dist., New Taipei City 241402, Taiwan Room 504, No. 228, Tian Yuan East Rd., (R.O.C.) Jiang Ning Dist., Nanjing City, Jiangsu Province, TEL: +886-2-29999000 China (Postal: 211100) FAX: +886-2-29992887...
