WM aquatec UV-C LED Operation Manual page 50

UV-unit wire
designation
(cable identifi er)
1
2
4
Table 18: Electrical connection with flow sensor
Image: 16
Image: 18
Connection to
Supply voltage
(+11 -18 VDC)
GND (0 V)
„Signal" fl ow sensor
(+5 - 24 VDC)
1
+ +

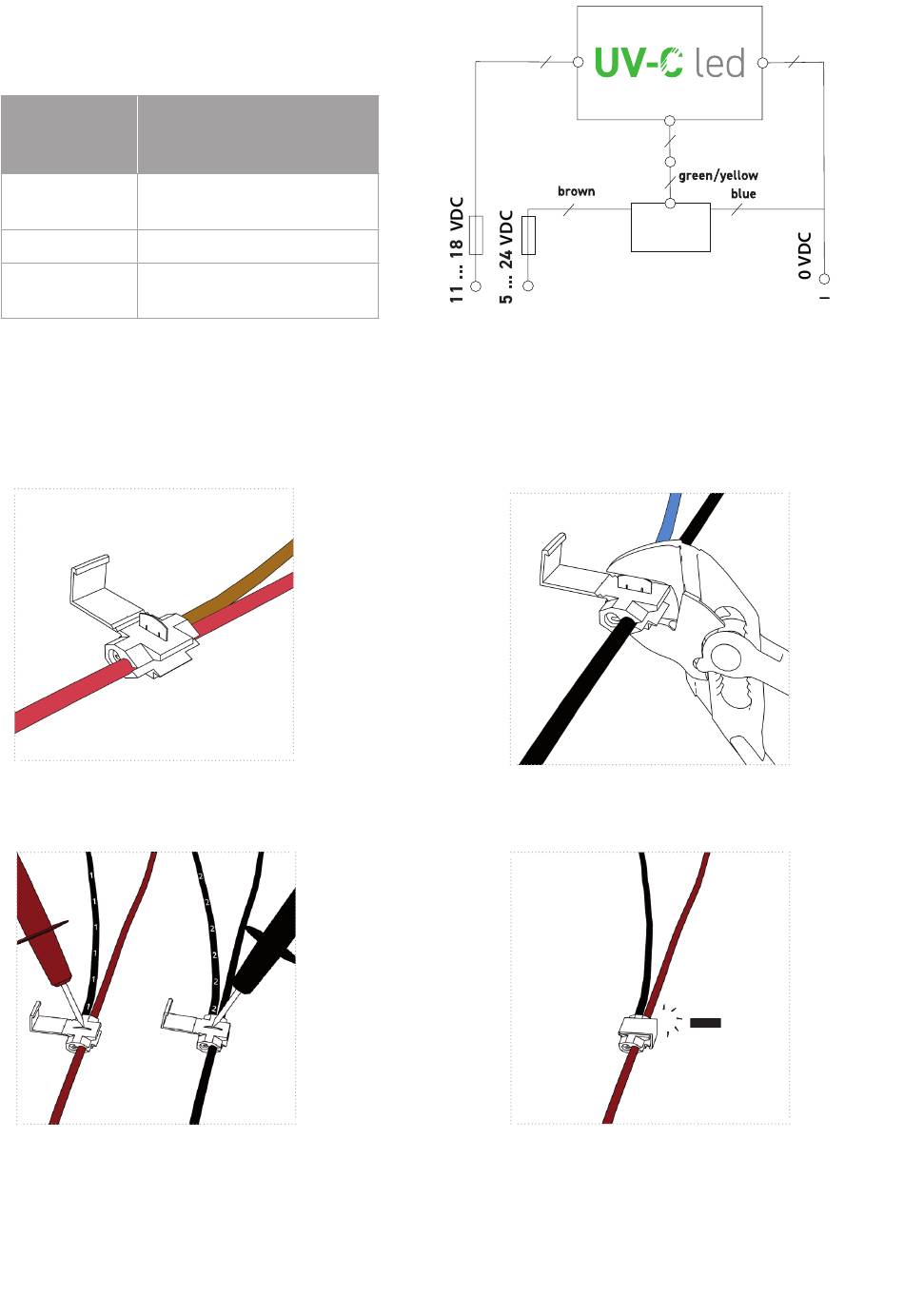

Image 15: Electrical connection with flow sensor
Image: 17
Image: 19
- 50 -
2
4
KLICK KLICK
