Recommended Space Required For Installation Of The Uv-Unit - WM aquatec UV-C LED Operation Manual

Lifetime
Operating hours (in operating mode)
Table 12: Lifetime
Flow
Recommended flow rate
Table 13: Flow rate
Disinfection performance*
99,999 %
99,99 %
99,9 %
*Reduction of E.Coli
Table 14: Disinfection performance
Operating pressure
Operating pressure
Table 15: Operating pressure
Information!
When looking at the pressure data on the pump type plates, please note that the pressure in the
system can be considerably higher if, for example, the pipes are very short and rigid.
• Store and operate the product only inside a closed building, install it as vibration-free as
possible, avoid heat accumulation and protect it from moisture.

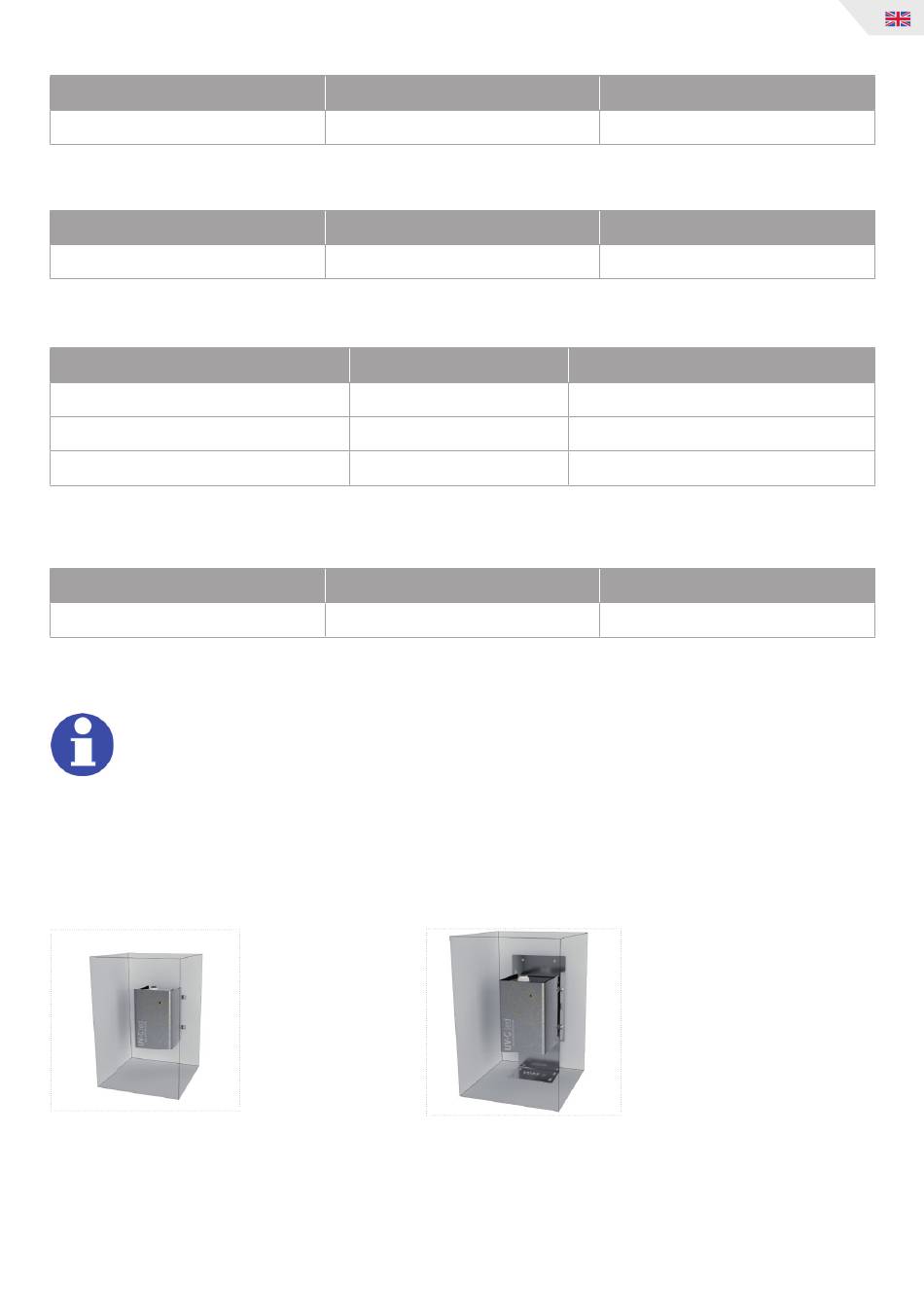

3.3.8 Recommended space required for installation of the UV-unit

For installation and ergonomic operation, the following space requirements for installation are recommended:
Installation on a wall:
20 x 30 x 20 cm (W x H x D)
Image 3: Recommended surface area for the installation of the UV-unit
Min.
-
Min.
2 l/min
Flow rate
2,25 l/min
5 l/min
8 l/min
Min.
-
Installation on the fl oor with the stainless steel
fl oor mounting bracket (seperately available):
20 x 33 x 20 cm (W x H x D)
- 41 -
Max.
5000 h
Max.
8 l/min
Irradiation dose
40 mJ/cm²
16 mJ/cm²
10 mJ/cm²
Max.
120 psi/8,3 bar
