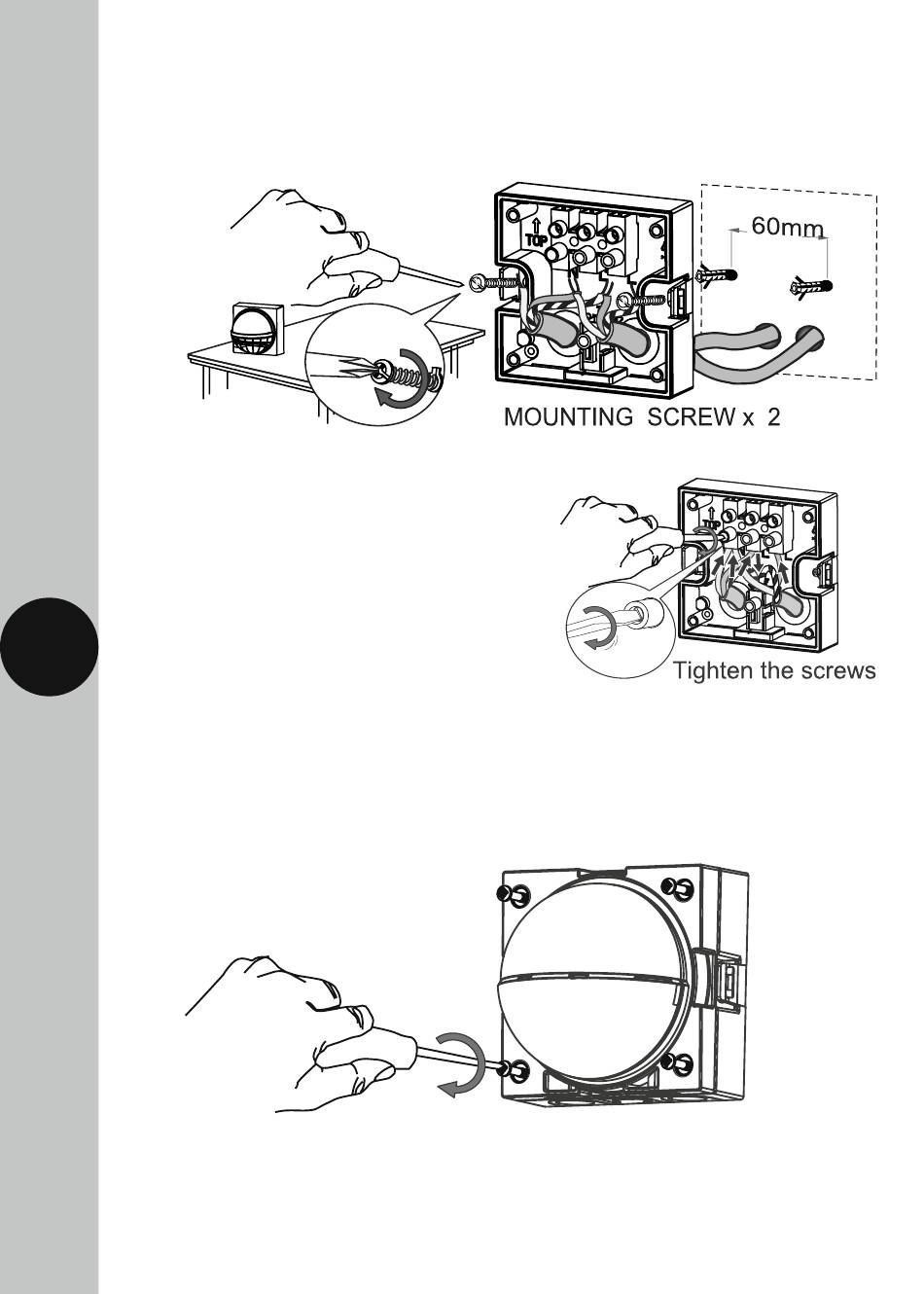

5.8 Fix the back box to the wall using the 2x mounting screws, making sure
it is the correct way up. Take care not to over-tighten the screws to prevent
damage to the back box. If using a power screwdriver, use the lowest
torque setting (See image 7).
7
5.9 Terminate the 230V 50Hz mains
supply and load cables into the
terminal block (as per image 8)
ensuring correct polarity is observed
and that all bare conductors are
5
sleeved (See section 6. Connection
Diagram – for wiring details).
5.10 Position the PIR sensor over the back box, making sure the adjustments are
located on the bottom, and secure using the 4x fixing screws previously
removed in step 5.5. (See image 9).
