Timeguard TRT05 Installation & Operating Instructions Manual

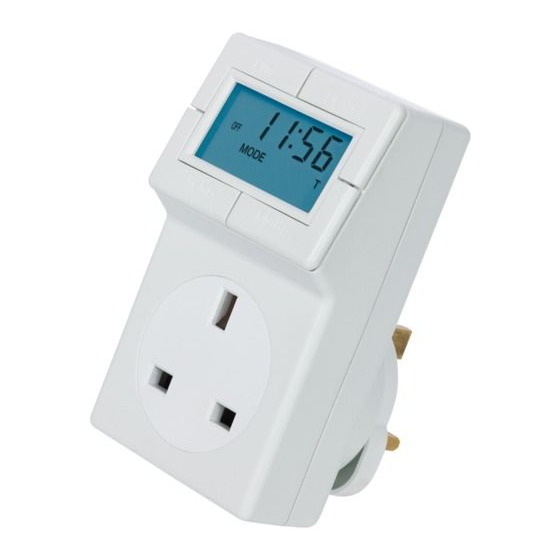

Plug in thermostat with 24 hour time control
Hide thumbs Also See for TRT05:
Table of Contents

Advertisement

Quick Links

Plug In Thermostat
with 24 Hour
Time Control
Model: TRT05

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TRT05 and is the answer not in the manual?

Questions and answers

Related Manuals for Timeguard TRT05

Summary of Contents for Timeguard TRT05

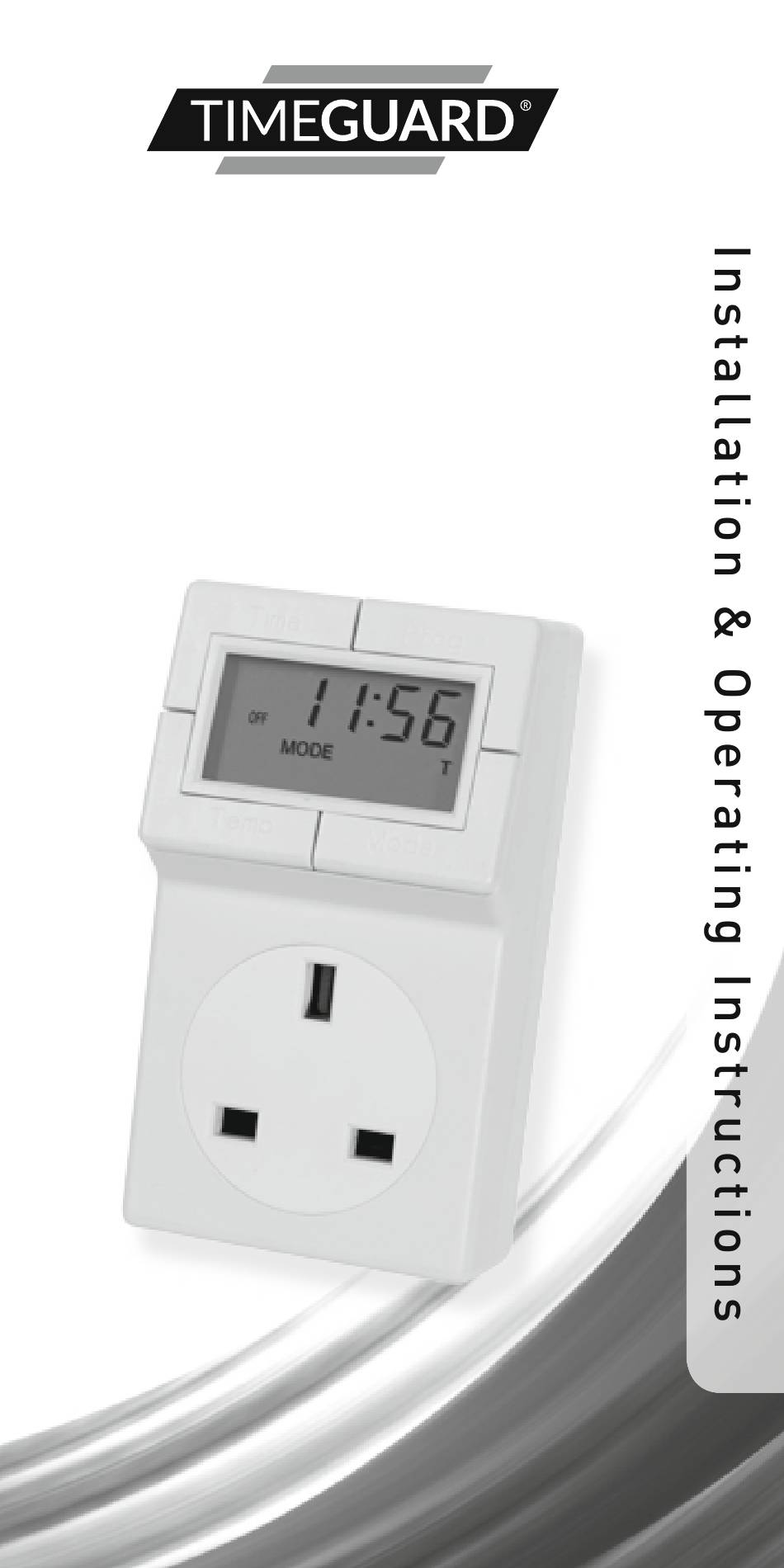

  • Page 1 Plug In Thermostat with 24 Hour Time Control Model: TRT05...

  • Page 2: General Information

    1. General Information These instructions should be read carefully and retained for further reference and maintenance. 2. Safety • Do not plug in any appliance that exceeds the capacity of the Timer. • Always ensure the plug of any appliance is fully inserted into the timer outlet.
  • Page 3 15 minutes prior to pressing the reset button. Note: The reset button is located on the back of the TRT05, which is only accessible when the unit is unplugged. This can be used to restore the factory default settings,...

  • Page 4: Programming The Time

    • If the screen is completely blank the device will need to be fully re-charged. Plug in for 4 hours and press the reset button, located on the back of the device, to bring the screen on. • The factory fitted non replaceable battery will keep the programmed times during power down situations for up to 4 weeks.
  • Page 5 • Use the ‘TEMP’ button to increase the numeric value, or ‘MODE’ button to decrease the numeric value. The clock is set in 24 hour format. Note: When the ‘TEMP’ or ‘MODE’ buttons are held down, the adjusted setting will scroll more rapidly.

  • Page 6: Setting The Temperature

    6. Setting the Temperature • Press and hold the ‘TEMP’ button for approximately 3 seconds. Whilst holding the word ‘HOLD’ will be displayed; • Release the button when ‘SET’ is displayed. The temperature will blink; Note: The default temperature is 20°C. The temperature set range is 0°C to 35°C.
  • Page 7 • Release the button when ‘SET’ is displayed. The Display will also show ‘Prog 1 ON’, and the hour cursor will blink; • Use the ‘TEMP’ or ‘MODE’ button to set the hours. • Press the ‘PROG’ button to save and move to the minutes.
  • Page 8 • Use the ‘TEMP’ or ‘MODE’ button to set the hours. • Press the ‘PROG’ button to save and move to the minutes. • Use the ‘TEMP’ or ‘MODE’ button to set the minutes. • Press the ‘PROG’ button to save and move to the ‘Prog 2 ON’...

  • Page 9: Operating Mode

    8. Operating Mode The TRT05 has four operating modes. You can press the ‘MODE’ button to scroll between these modes. Select one of the following modes after you have completed programming. The Modes are; MODE A – Auto mode: The output will be controlled by the set temperature only.

  • Page 10: Display Options

    MODE T – Timed mode: The output will be controlled by the set temperature, between the programmed ON and OFF times. There is only one set temperature and this cannot be set differently for individual timed periods. 8.1 Display Options You have the option to display the current time or the actual room temperature.

  • Page 11: Year Guarantee

    • If the ‘TEMP’ button is pressed briefly again, then the display reverts to showing the current time; Note: In both auto, and timed mode, the ON/ OFF will reflect the output of the TRT05. 0 10 3 Year Guarantee In the unlikely event of this product becoming...
  • Page 12 If you experience problems, do not immediately return the unit to the store. Telephone the Timeguard Customer Helpline; HELPLINE 020 8450 0515 or email helpline @ timeguard.com Qualified Customer Support Co-ordinators will be on-line to assist in resolving your query.
