Timeguard TRTWIFI Installation & Operating Instructions Manual

Wi-fi controlled thermostat
Hide thumbs
Table of Contents

Advertisement

Quick Links

Wi-Fi Controlled Thermostat
Model: TRTWIFI

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TRTWIFI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Timeguard TRTWIFI

Summary of Contents for Timeguard TRTWIFI

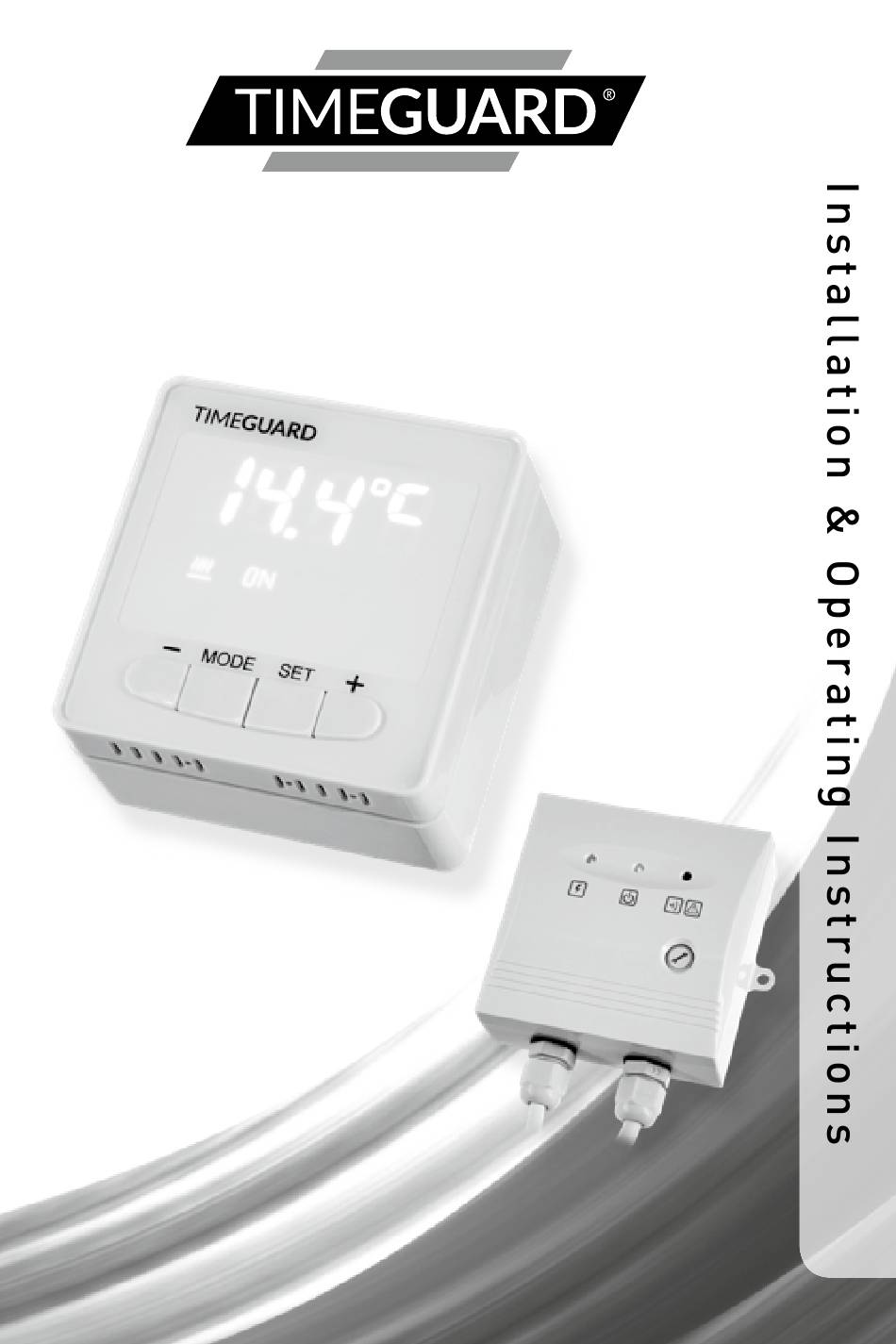

  • Page 1 Wi-Fi Controlled Thermostat Model: TRTWIFI...

  • Page 2: General Information

    These instructions should be read carefully and retained for further reference and maintenance. Note: Timeguard reserve the right to alter these instructions, and the Programastat+ heating app, at any time. Up to date instructions will always be available for download at www.Timeguard.com.

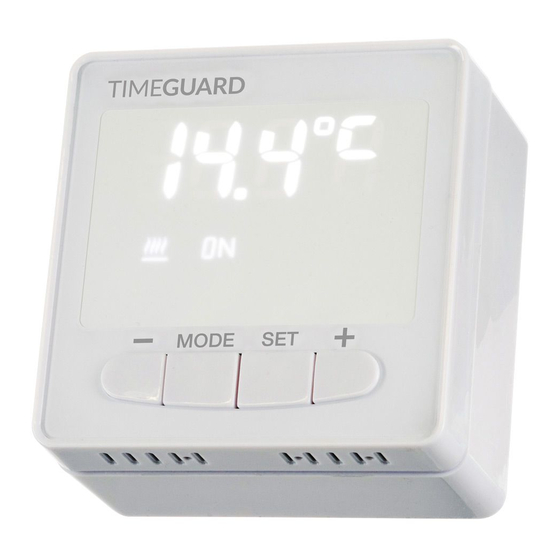

  • Page 3 0.5°C steps • Swing 0.5 or 1.0 C • CE Compliant • Dimensions (HxWxD): 90mm x 90mm x 46mm TRTWIFI Thermostat – Front View The heating 5°C to 35°C set The Wi-Fi icon symbol will show temperature range will show when...
  • Page 4 Manual Output Button: functions only when there is no internet connection as an ON/OFF button TRTWIFI MAC address and ID Wi-Fi number label Important: Do not remove this label from the side of the product.

  • Page 5: Installation

    4. Contents • 1x TRTWIFI Thermostat • 1x TRTWIFI Power Box • 1x Instruction Manual • Mounting Kit Note: All instructions are to be left with the customer after installation 5. Installation 5.1 Ensure the mains supply is switched off and the circuit supply fuses are removed or the circuit breaker turned off.
  • Page 6 TRTWIFI. The wires are not polarity sensitive. If there are 3 wires, then omit the neutral (blue) wire. 5.14 Re-fit the front of the TRTWIFI by hooking the lower edge over the tab, and pressing the top home until it clicks, taking care not to bend the 8 connecting pins.

  • Page 7: Connection Diagram

    6. Connection Diagram The diagram below shows a typical thermostat wiring to a wiring centre. The diagram below shows how the TRTWIFI would replace a typical thermostat setup. Note: Check boiler instructions before connecting.
  • Page 8 Service Provider) on separating the bands if required. 7.1 Ensure your phone or tablet is connected to your local Wi-Fi network. 7.2 Download the Timeguard Programastat+ app onto your phone or tablet by searching for Timeguard on Google Play or the Apple store.
  • Page 9 7.3 Install the App, and open it to the registration page. 7.4 Users must first register, and then log in to use App. First time users must use the main account log in. Note: User names and passwords cannot contain any spaces or special characters, and must use letters and numbers only.
  • Page 10 7.9 On the mobile device or tablet, press the start button. The App will search for an available device. Once the App has found and configured the TRTWIFI to the network the Wi-Fi Icon on the thermostat will be permanently displayed on the screen.
  • Page 11 Note: Device names cannot contain any spaces or special characters. 8. Features of the TRTWIFI Thermostat Thermostat Manual Override • The set temperature can be overridden on the thermostat as a temporary override until the next programme change using the + and – buttons.
  • Page 12 Wi-Fi zone. Once Wi-Fi is set up on the device, the App can also control the TRTWIFI through 4G. The TRTWIFI must be connected to a Wi-Fi network. • The App can be downloaded from the Google Play store or Apple Store.

  • Page 13: Manual Override

    Manual Override • The temperature can be manually over ridden, by touching on the set temperature and selecting a new one. This will override the programmed temperature until the next programmed change. The symbol will show on the screen. To revert back to the programmed temperature, touch the symbol and the override will be cancelled.
  • Page 14 Auto: Output is controlled by the target temperature set for the day periods. The target temperature for a programmed period can be temporarily overridden using the manual override function. Permanent OFF: Output will remain off until auto is re-enabled by the user. In this mode, manual override is disabled and programmes will not run.
  • Page 15 Programme time Set temperature New settings Active days Add new days, (7 max) Number of pages (dots)
  • Page 16 This shows the times when a temperature change has been programmed. The thermostat will maintain the programmed temperature until the next change.

  • Page 17: Resetting The Thermostat

    Quick Programming Tips • Up to 6 timed temperature periods are allowed per day. • They can be edited or deleted by holding the time or temperature. • If there are less than 6 periods, new periods can be added using the + key. •...

  • Page 18: Advanced Settings

    • Users: Allows the main account holder to add additional users know as sub account users. Sub-account users can manipulate the control aspects of the TRTWIFI but will not be able to delete the device from the main holders account. Sub-account users must register via the user’s option in...

  • Page 19: Year Guarantee

    020 8450 0515. Note: A proof of purchase is required in all cases. For all eligible replacements (where agreed by Timeguard) the customer is responsible for all shipping/postage charges outside of the UK. All shipping costs...
  • Page 20 If you experience problems, do not immediately return the unit to the store. Telephone the Timeguard Customer Helpline; HELPLINE 020 8450 0515 or email helpline @ timeguard.com Qualified Customer Support Co-ordinators will be on-line to assist in resolving your query.
