- Page 1 Plug In Thermostat with Timed Options Model: TRT05...

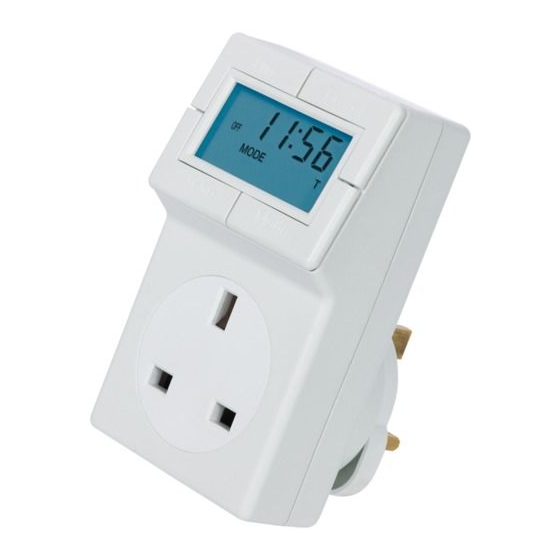

- Page 2 13A appliances up to 3kW General: The TRT05 is a plug in thermostat, with an in built 24 hour programmable timer. It has 3 programmable time periods, and 4 operating modes, including on, off, Timed, and Automatic. Set temperature can be...
-
Page 3: Display Layout
1. Display Layout: 2. Programming the Time and Date: from first power up, the screen will show --:-- note: in this mode, the ‘Temp’, ‘Mode’ and ‘Prog’ buttons do not perform any function. Press ‘Time’ and hold for 3 seconds. Whilst holding, the word hold shows. - Page 4 The hour symbol will blink. Use ‘Temp’ or ‘Mode’ to set the hour. ‘Temp’ increases the numeric value and ‘Mode’ decreases the numeric value. The hour is a 24hr clock. Use ‘Time’ to move the blinking to the minutes. Use ‘Temp’ or ‘Mode’ to set the minutes. Press ‘Time’...
- Page 5 Notes about Time entry: There is no ‘time out’ if a button is not pushed for any reason during programming the time. During programming, when the ‘Temp’ or ‘Mode’ buttons are held down, the adjusted setting will scroll more rapidly. Holding down the ‘Time’...
- Page 6 Press ‘Prog’ to exit program mode. At any time during programming, if the ‘Prog’ button is held down for 3 seconds, the TRT05 will return to operating mode. The display will now show: Where the time is correct, and the on/off indicator reflects the current program.
-
Page 7: Setting Temperature
Programming across midnight: To programme across midnight, enter the start time of the last period (say 20:00), and then leave the end time blank (--:--). Start the next days on period at 00:00 and then enter the off time that is required. Setting temperature: Press and hold the ‘Temp’... -
Page 8: Operating Mode
4. Operating Mode: The TRT05 has four operating modes. Pressing the ‘Mode’ button scrolls between modes. Modes are: Auto mode: the output will be controlled by the set temperature only. The output will be on, irrespective of the set temperature. - Page 9 (not the set temperature). If ‘Temp’ is pressed briefly again, then the display reverts to showing the time. In both auto, and timed mode, the on off will reflect the output of the TRT05.
-
Page 10: Specifications
5. Reset There is a reset button on the back of the TRT05, which is only accessible when the unit is unplugged. This can be used to restore the factory default settings, and blank any programming. 6. Specifications: output load capability: a. filament 400W. -
Page 11: Year Guarantee
3 year guarantee In the unlikely event of this product becoming faulty due to defective material or manufacture, within 3 years purchase, please return it to your supplier in the fi rst year with proof of purchase and it will be replaced free of charge. In years 2 and 3 or any diffi culty in the fi rst year please contact our help line on 020 8450 0515. - Page 12 For assistance with this product please contact: HELPLINE 020 8450 0515 or email helpline @ timeguard.com For a product brochure please contact: Timeguard Limited. Victory Park, 400 Edgware Road, London NW2 6ND Sales Offi ce: 020 8452 1112 or email csc @ timeguard.com...
