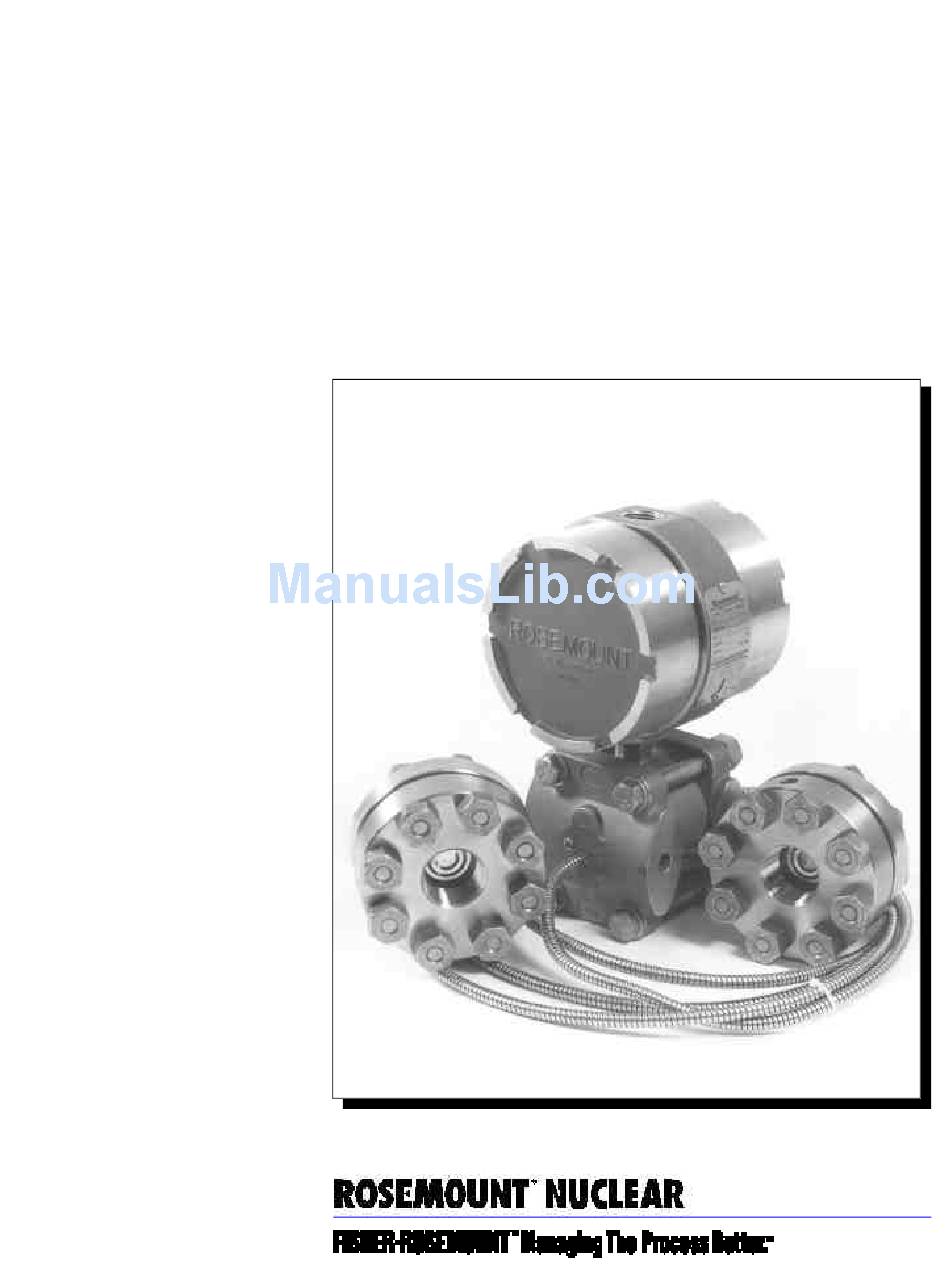

- Page 1 00809-0100-4504 English June 1999 Rev. AB Model 1159 Remote Diaphragm Seals Manual With Model 1152, Model 1153 Series B, D, and F, and ® Model 1154 Alphaline Nuclear Pressure Transmitters Product Discontinued...
- Page 2 IMPORTANT NOTICE -- ERRATA Model 1159 Remote Diaphragm Seal, Product Manual 00809-0100-4504, Rev AB (June 1999) Effect. Affected Pages Description of Change Date Page i Replace address and phone/fax with: 10/10/03 Page ii Rosemount Nuclear Instruments, Inc. Back cover page...
- Page 3 Within the United States, the North American Response Center is at your service 24 hours a day and is a single-point contact for all Rosemount equipment service needs. If at any time you are not sure what to do, have a question about using the product, or have a service or support request, call the center toll free at 1-800-654-RSMT (7768).
- Page 4 Rosemount Nuclear Instruments, Inc. Warranty and Limitations of Remedy The warranty and limitations of remedy applicable to this Rosemount equipment are as stated on the reverse of the current Rosemount quotation and customer acknowledgment forms. RETURN OF MATERIAL Authorization for return is required from Rosemount Nuclear Instruments, Inc.
- Page 5 Series B and D Ordering Information table, Model 1153 Series F Ordering Information table, and Model 1154 Ordering Information table. Added special option section to Model 1159 Ordering Information table. Footnote (3) in Model 1159 Ordering Information table rewritten. Back Cover Back Cover Changed phone numbers.
-
Page 7: Table Of Contents
Model 1152 Ordering Information ............5-1 Model 1153 Series B and D Ordering Information ....... 5-2 Model 1153 Series F Ordering Information .......... 5-2 Model 1154 Ordering Information ............5-3 Model 1159 Ordering Information ............5-3 Model 1159 Spare Parts Ordering Information ........5-4... -
Page 9: Introduction
Use this manual in conjunction with the transmitter instruction manual. The Model 1159 Remote Seal is intended for use in nuclear power stations where stringent quality control of design and manufacturing processes is necessary to ensure high reliability over an extended service life. - Page 10 Model 1159 Remote Diaphragm Seals...
-
Page 11: Performance
The presence of air in the fill fluid will cause poor performance. If fill fluid is lost due to damage to the remote seal system, it must be replaced at Rosemount. Static Head Effects If the diaphragm seal and transmitter are installed at different elevations, a zero error occurs due to static head effects. - Page 12 Model 1159 Remote Diaphragm Seals...
-
Page 13: Installation
A misaligned gasket may cause a false reading. Remote Seal Installation Due to infinite mounting configurations, mounting of the remote seal is the responsibility of the customer. Refer to Rosemount Report Considerations D8300151—Qualification Report for Water Filled Remote Seal System, for mounting details during qualification testing. -
Page 14: System Installation Procedure
Model 1159 Remote Diaphragm Seals Transmitters with remote diaphragm seals are frequently installed with the transmitter and seal or seals at different elevations. In installations of this type there will be a zero shift that must be corrected prior to operation. - Page 15 Rosemount Nuclear Instruments, Inc. Metal Seal Installation NOTE Procedure Use special care during the installation procedures in order to prevent possible damage to the isolating diaphragm. 1. Remove the eight remote seal bolts and nuts; retain them for reassembly. 2. Clean the mating surfaces of the upper and lower housings with a clean cloth.
-
Page 16: Mounting Of Capillary Clamps
Model 1159 Remote Diaphragm Seals FIGURE 3-1. Installation Diagram. Mounting Ring Upper Housing (8 Places) Lower Housing Gasket/Metal Seal Capillary Tubing Bolt (8 Places) Capillary Clamp 4. Place the upper housing and gasket against the lower housing, being careful not to shift the gasket. -
Page 17: Maintenance
The procedure for replacement of the gasket or metal seal must be followed whenever the remote seal is disassembled. For servicing other than changing out electronics boards, transmitter and remote seal system must be returned to Rosemount. NOTE See RETURN OF MATERIAL at the front of this manual or in the... - Page 18 Model 1159 Remote Diaphragm Seals...
-
Page 19: Ordering Information
Section Ordering Information MODEL 1152 ORDERING INFORMATION Model Product Description 1152 Alphaline Pressure Transmitters for Nuclear Applications Code Pressure Measurement Differential Pressure, 2,000 psig (13.8 MPa) Static Pressure Rating Gage Pressure Code Pressure Ranges 0–5 to 0–30 inH O (0–1.24 to 0–7.46 kPa) 0–25 to 0–150 inH O (0–6.22 to 0–37.3 kPa) 0–125 to 0–750 inH... -
Page 20: Model 1153 Series B And D Ordering Information
Model 1159 Remote Diaphragm Seals MODEL 1153 SERIES B AND D ORDERING INFORMATION Model Product Description 1153 Alphaline Pressure Transmitters for Nuclear Applications Code Pressure Measurement Differential Pressure, 2000 psig Static Pressure Rating Code Series Aluminum Housing, qualified per IEEE Std 323-1974, IEEE Std 344-1975. -
Page 21: Model 1154 Ordering Information
704 Silicone oil fill. It is also available with D.C. 200 Silicone oil fill, seismic qualification only. Capillary lengths of 15 ft or less are recommended for silicone oil fill. Specifications may differ with fill fluid option. Contact Rosemount Nuclear... -
Page 22: Model 1159 Spare Parts Ordering Information
Model 1159 Remote Diaphragm Seals MODEL 1159 SPARE PARTS ORDERING INFORMATION Part Description Part Number Metal Seal 01159-0300-0002 Capillary Clamp 01159-0301-0001 Lower Housing ¼–18 NPT 01153-0301-0001 ½–14 NPT 01153-0301-0002 1–11-½ NPT 01153-0301-0003 Nut & Bolt Kit (8 each) 01159-0320-0001 (1) Refer to transmitter instruction manual for transmitter spare parts. - Page 24 Rosemount Nuclear Instruments, Inc. 12001 Technology Drive Eden Prairie, MN 55344 Tel (612) 828-8252 Telex 4310012 Fax (612) 828-8280 © 1999 Rosemount Nuclear Instruments, Inc. http://www.rosemount.com ¢00809-0100-4504\¤ ™ 00809-0100-4504 Rev. AB...
