urmet domus IPERCOM 1761 Quick Start Manual page 8

ENGLISH
1. DESCRIPTION
The Ref. 1761/6 video door phone is dedicated to the Ipercom system video door phones.
The main features are:
• 5'' (Wide Angle) TFT-LCD colour screen;
• soft-touch buttons
• possibility of activating video door phone functions using gesture commands on the IR sensor
• possibility of seeing the caller's image when receiving a call (early media) on the master video door
phone if several video door phones are present in the apartment.
• possibility of adjusting the audio/video (speaker volume and brightness) in OSD menu
• possibility of customising the ring tone according to the call source with a choice of five different types
• possibility of adjusting the ring tone volume to minimum, medium and maximum
• open door indication
• "MUTE" function
• "Clean screen" function.

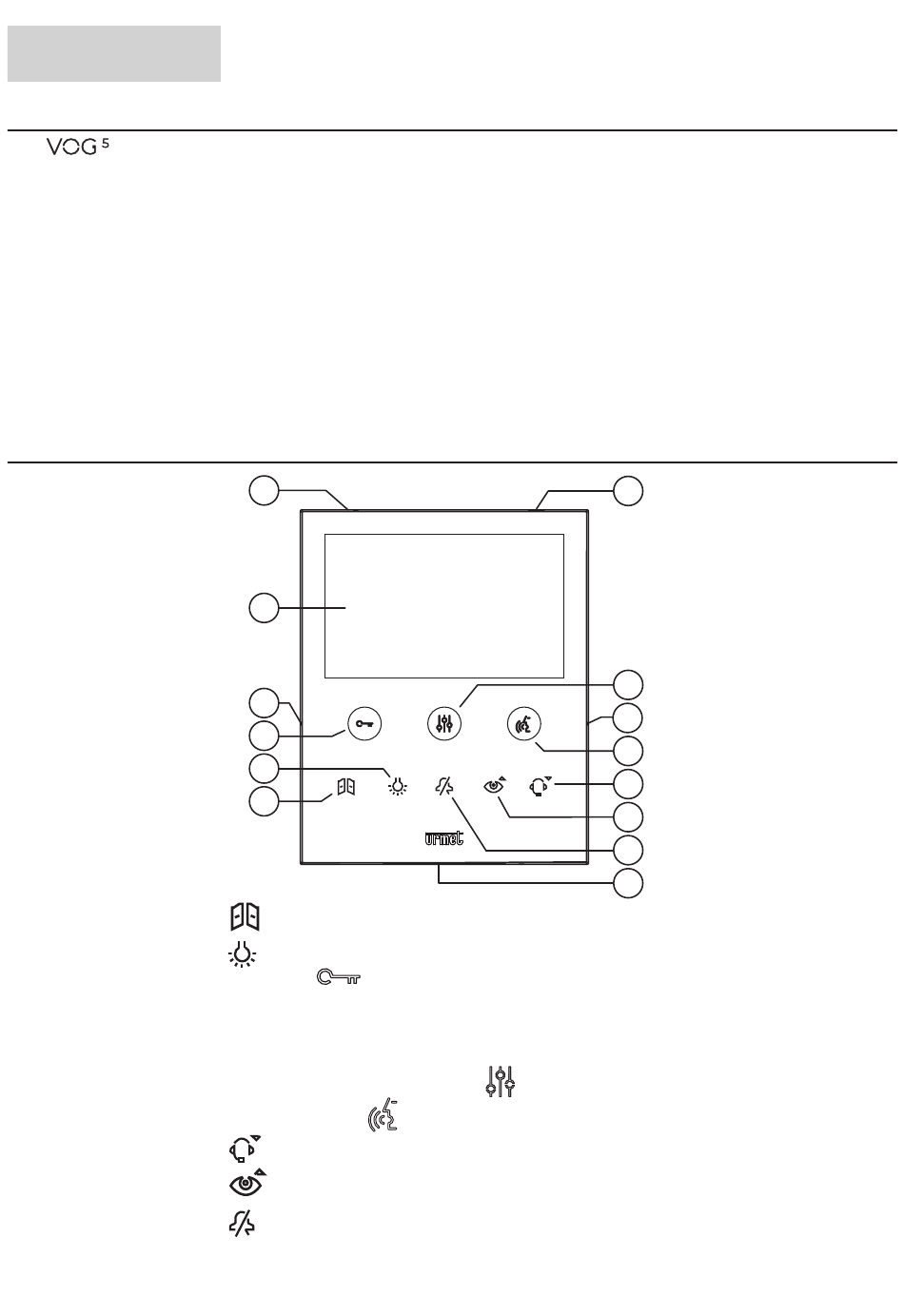

2. DESCRIPTION OF COMPONENTS AND FEATURES
1.
Multifunction button
2.
Multifunction button
3.
Pedestrian door opener button
4.
Raised notches for vision-impaired
5.
5" display
6.
Microphone
7.
IR sensor for gesture commands
8.
Button for accessing programming and OSD menu
9.
Tasto attivazione/disattivazione fonia
10.
Multifunction button
11.
Multifunction button
12.
Multifunction button
call / exit auto-on function
13.
Speaker
8
6
5
4
3
2
1 2
1
1
: garage door opener or special function / intercom call 1
2
: special function / intercom call 2
(with green / red backlighting LED)
(with green backlighting LED)
: "Clean screen" function / call to switchboard
: "Auto-on function" / video switching / "Clean screen" function
3
: "MUTE" function (with red backlighting LED) / intercom call 3 / refusal of a
4
3 10
11
12
13
(with orange backlighting LED)
7
8
9
DS1761-001
