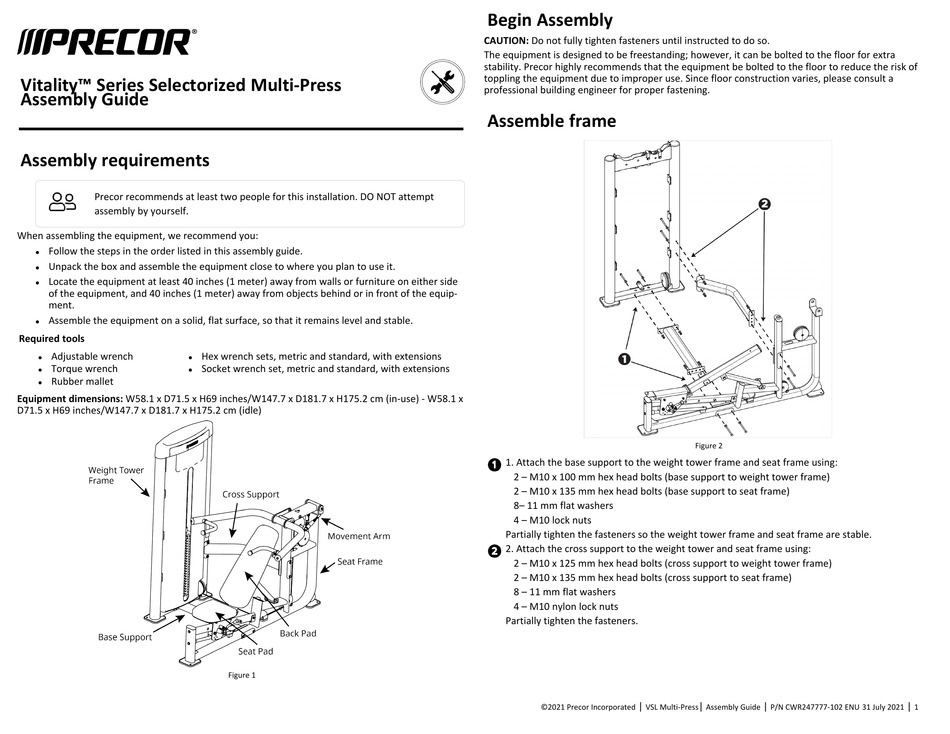

Vitality™ Series Selectorized Multi-Press
Assembly Guide
Assembly requirements
Precor recommends at least two people for this installation. DO NOT attempt
assembly by yourself.
When assembling the equipment, we recommend you:
Follow the steps in the order listed in this assembly guide.
l
Unpack the box and assemble the equipment close to where you plan to use it.
l
Locate the equipment at least 40 inches (1 meter) away from walls or furniture on either side
l
of the equipment, and 40 inches (1 meter) away from objects behind or in front of the equip-
ment.
Assemble the equipment on a solid, flat surface, so that it remains level and stable.
l
Required tools
Adjustable wrench
l l
Torque wrench
l l
Rubber mallet
l
Equipment dimensions: W58.1 x D71.5 x H69 inches/W147.7 x D181.7 x H175.2 cm (in-use) - W58.1 x
D71.5 x H69 inches/W147.7 x D181.7 x H175.2 cm (idle)
Hex wrench sets, metric and standard, with extensions
Socket wrench set, metric and standard, with extensions
Figure 1
Begin Assembly
CAUTION: Do not fully tighten fasteners until instructed to do so.
The equipment is designed to be freestanding; however, it can be bolted to the floor for extra
stability. Precor highly recommends that the equipment be bolted to the floor to reduce the risk of
toppling the equipment due to improper use. Since floor construction varies, please consult a
professional building engineer for proper fastening.
Assemble frame
1. Attach the base support to the weight tower frame and seat frame using:
2 – M10 x 100 mm hex head bolts (base support to weight tower frame)
2 – M10 x 135 mm hex head bolts (base support to seat frame)
8– 11 mm flat washers
4 – M10 lock nuts
Partially tighten the fasteners so the weight tower frame and seat frame are stable.
2. Attach the cross support to the weight tower and seat frame using:
2 – M10 x 125 mm hex head bolts (cross support to weight tower frame)
2 – M10 x 135 mm hex head bolts (cross support to seat frame)
8 – 11 mm flat washers
4 – M10 nylon lock nuts
Partially tighten the fasteners.
|
©2021 Precor Incorporated VSL Multi-Press
Figure 2
| |
Assembly Guide P/N CWR247777-102 ENU 31 July 2021
|
1
