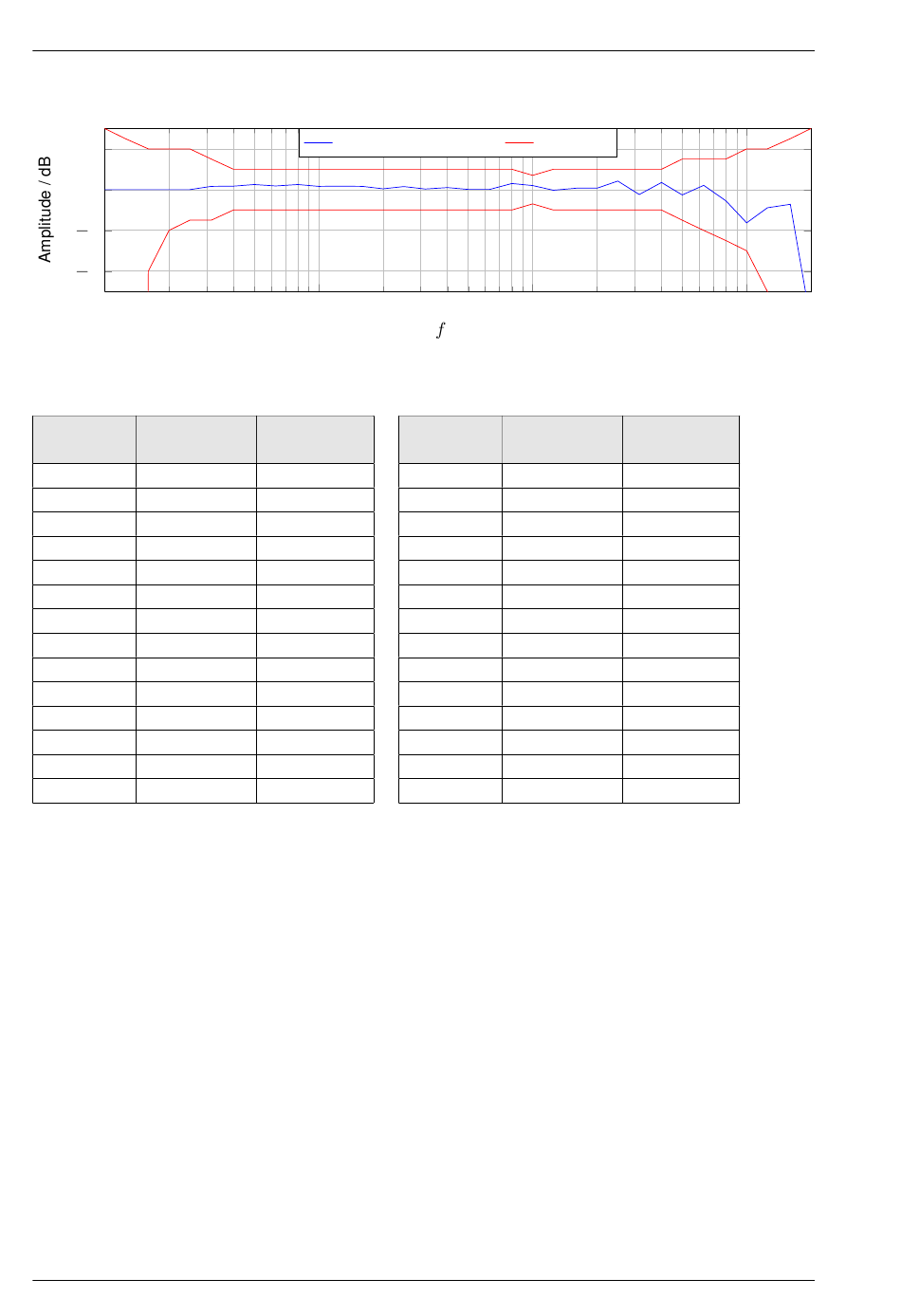

3.2.2 Frequency response of the microphone - Configuration Outdoor Kit
2
0
2
4
10
If the configuration with weather protector is selected in the device, the following values are added internally
to result in the frequency response shown above.
mid frequency cut-off frequency Correction value
in Hz in Hz
50 44,7
63 56,2
80 70,8
100 89,1
125 112
160 141
200 178
250 224
315 282
400 355
500 447
630 562
800 708
1000 891
Table 3.4: Correction to the frequency raw data for the Configuration Outdoor Kit.
