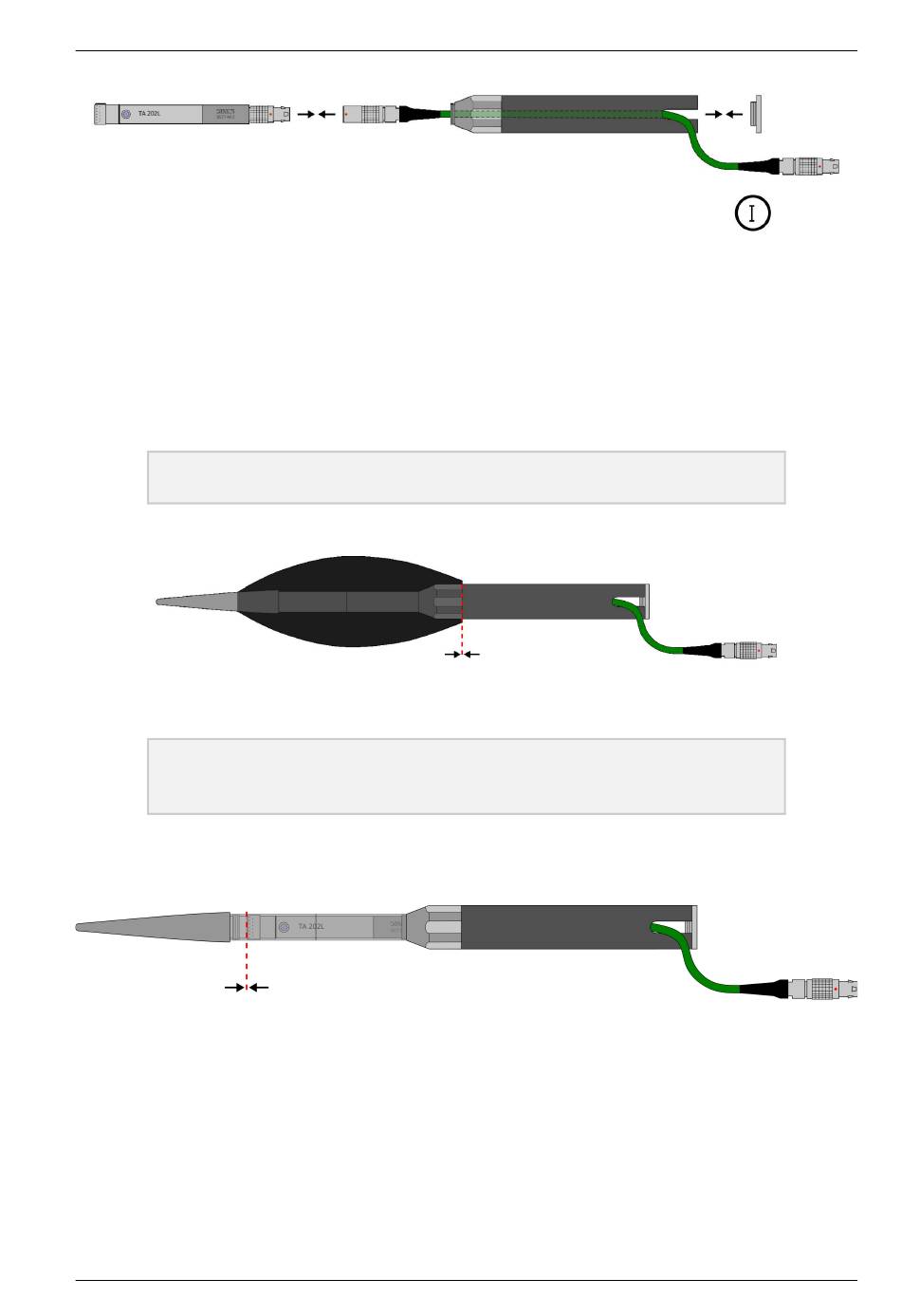

Figure 3.7: Mounting the cable
Then carefully slide the microphone unit into the protective sleeve (E) until the head of the microphone
capsule is at the end of the sleeve. Now you can screw the sleeve back onto the shaft (G). Keep the
weather protection at a slight angle, so that the head surface of the microphone remains at the end of the
sleeve and does not slip. Tighten the previously loosened shaft head (F) to fix the microphone. The weather
protection can now be set up vertically without the microphone lowering. Finally the Windscreen (D) can be
put on again. Make sure that the lower end of the windscreen is flush with the shaft head (F) (figure 3.8).
NOTICE!
Figure 3.8: Mounting the windscreen
NOTICE!
The transparent picture of the final compositions (figure 3.9) shows, that the microphone is closed to the
weather protection inside.
Figure 3.9: Transparent picture of the inner composition
SINUS Messtechnik GmbH
3.2 Configuration with weather protection - Outdoor Kit
The correct positions of microphone and windscreen must always be gua-
ranteed. Otherwise there will be falsifications of the later measurements.
For later calibrations, it is sufficient to remove the windscreen (D) and the
protective sleeve (E). Make sure that the microphone is in the correct posi-
tion vertically.
