Adjusting The Basic Machine; Basic Position Of The Balance Wheel (Adjustment Aid) - Pfaff POWERline 2571 ME PLUS Service Manual

Adjustment
1

Adjusting the basic machine

.05
1 Basic position of the balance wheel
.05.01
Adjust the scale dial 1 (four screws 2) in accordance with the requirement.
6
Requirement
When the needle bar is positioned at t.d.c., the marking "0" on the scale should be level
with the top edge of the belt guard (see arrow).

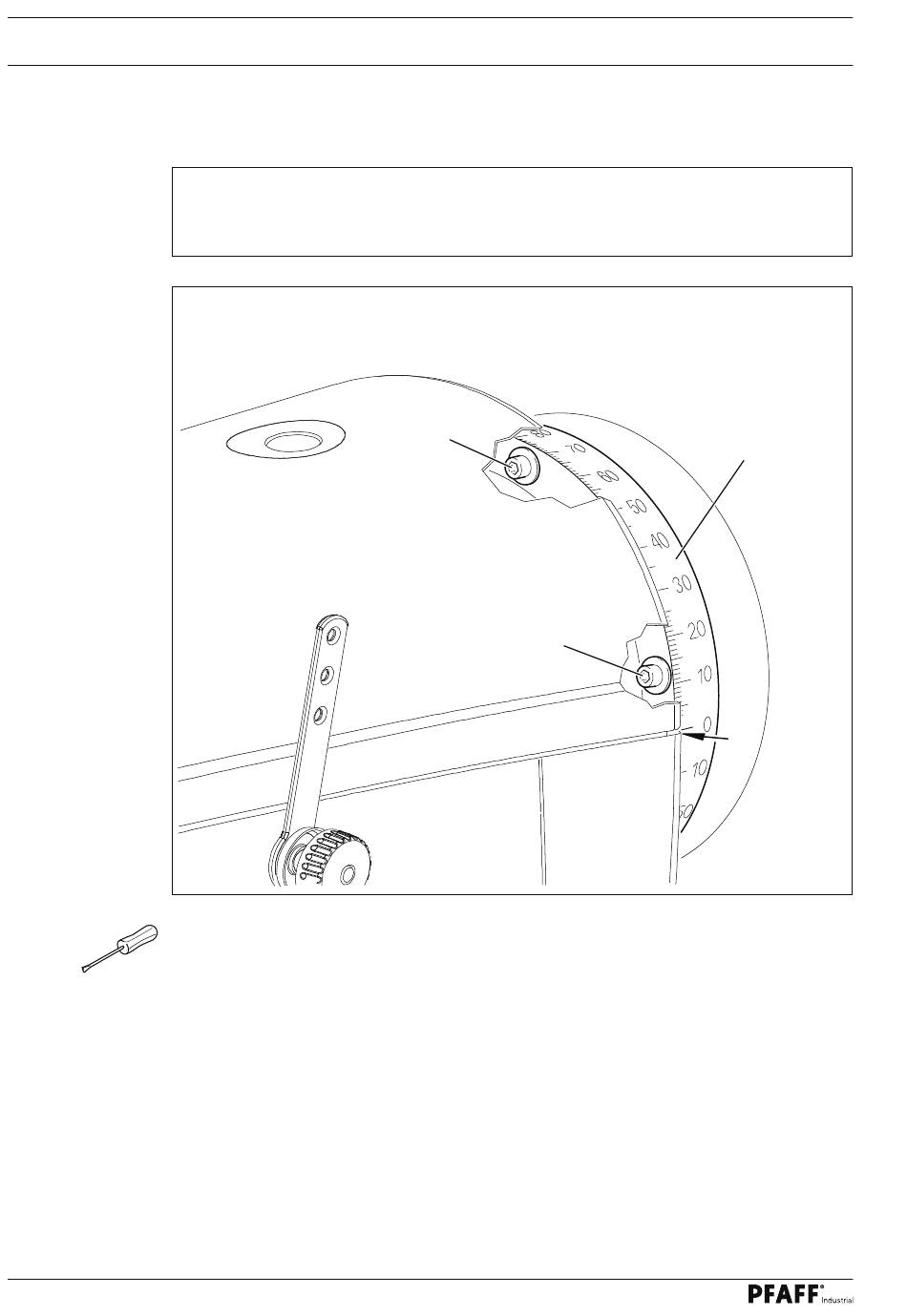

Fig. 1 - 01
(adjustment aid)
2
2
1
