Pfaff POWERline 2571 ME PLUS Service Manual page 13

● Set stitch length at "0.8".
● Loosen screws 1, 2, 3, 4 and 5 .
● Select parameter 605.
● Unscrew the needle plate.
● Turn the handwheel four times in the direction of rotation.
● Bring the handwheel into position 202° (= needle bar position 2.0mm after b.d.c.)
● Set the hook point on the middle of the needle. Take care that the needle is not
squeezed by needle guard 7.
● Adjust the needle height according to requirement 2, cf. chapter 1.05.05 Preliminary Ad-
justment of Needle Height.
● Move hook post according to requirement 1 and tighten screws 4 and 5.
● Move collar 8 into contact and tighten screw 1.
● Move collar 9 into contact and tighten screw 6
● Tighten screws 3 allowing for bevel gear wheel movement.
● Move collar 10 up against bevel gear wheel 11 and tighten screws 2
● Adjust needle guard 7 (screw 12) according to rule 3.
13

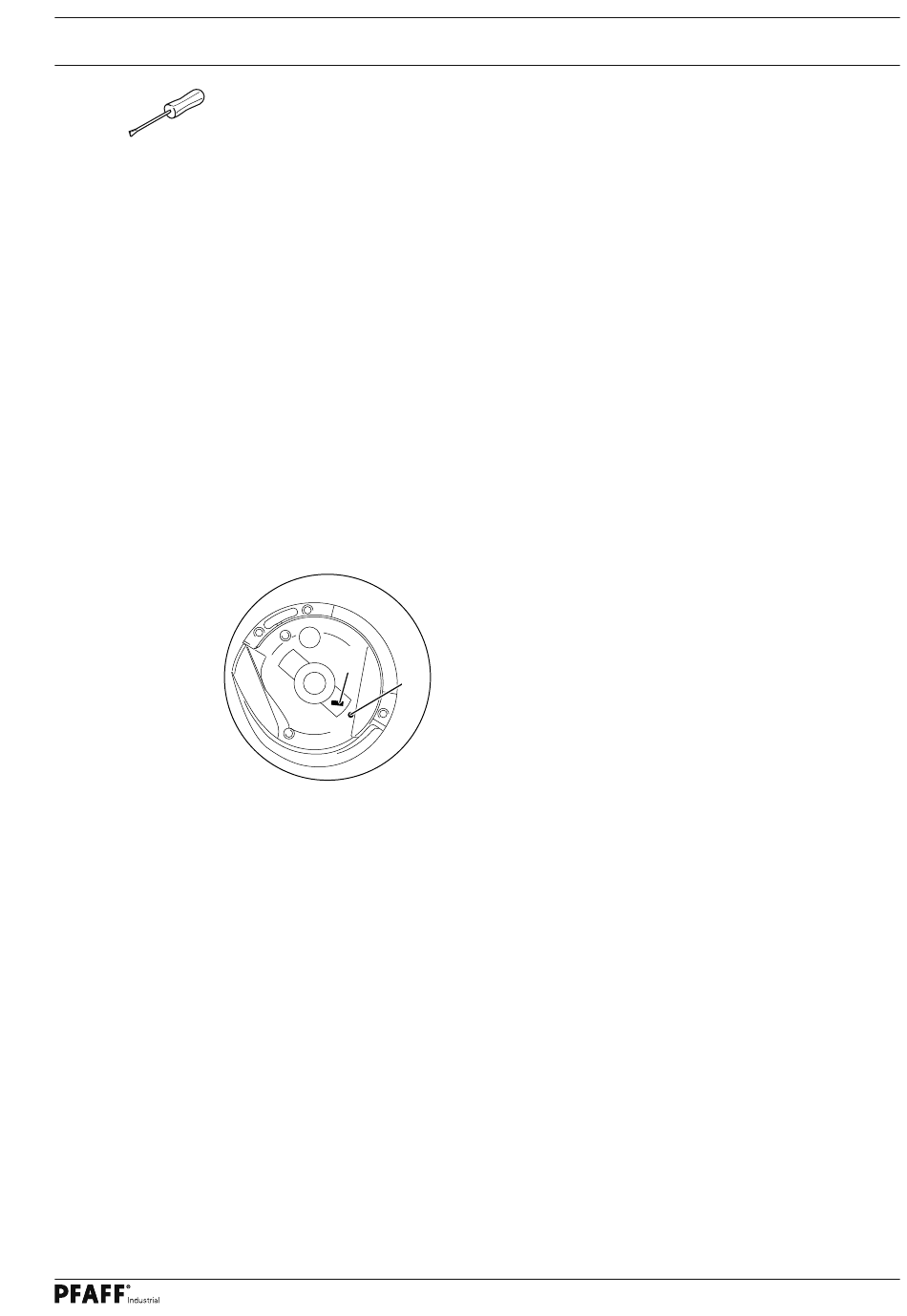

When changing a clamp take care that the
markings 13 and 14 are on one side.
14
Adjustment
13
