BLOTZ Future Gothic B08-FG Series Instructions

Future Gothic Components

B08-FG-xxx

Please read these instructions fully before starting construction.

PVA or equivalent glue will be required to stick sections together.

Sand paper can be used to gently clean any joints.

A sharp modelling knife will be required to remove sections from the sprue.

Please use knives with due care and remember to cut away from yourself at all times.

During the construction of this model, you may find it convenient to use pegs / elastic bands to hold pieces in place while

you allow glue to dry.

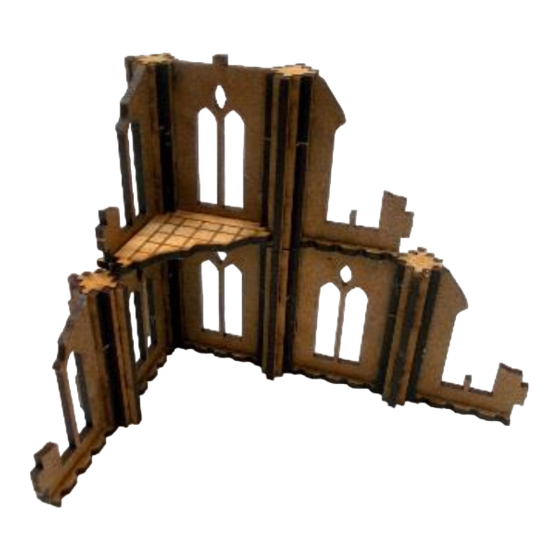

These instructions cover all the components which form part of our Future Gothic range.

Each wall / window is formed from two pieces as

shown above.

To create multiple layers, simply slot the top window

on to the bottom window.

Each large column is formed from the pieces shown

above.

Glue the base to the bottom of the wall / window.

Glue two of the inner supports in place.

Table of Contents

Do you have a question about the Future Gothic B08-FG Series and is the answer not in the manual?

Page 1 Future Gothic Components B08-FG-xxx Please read these instructions fully before starting construction. PVA or equivalent glue will be required to stick sections together. Sand paper can be used to gently clean any joints. A sharp modelling knife will be required to remove sections from the sprue. Please use knives with due care and remember to cut away from yourself at all times.
Page 2 Attach the other three sides. Glue the end cap in place. Short Columns Each short column is formed from the pieces shown Glue one of the inner supports in place. above. Attach the other three sides. Glue the end cap in place. Edge Strips / Buttress Take the strip / buttress…...
Page 3 Upper Floors Locate a suitable floor section. Check that the ledges it will be glued to are clear of dried glue / debris. Glue it into position on top of the ledges.
