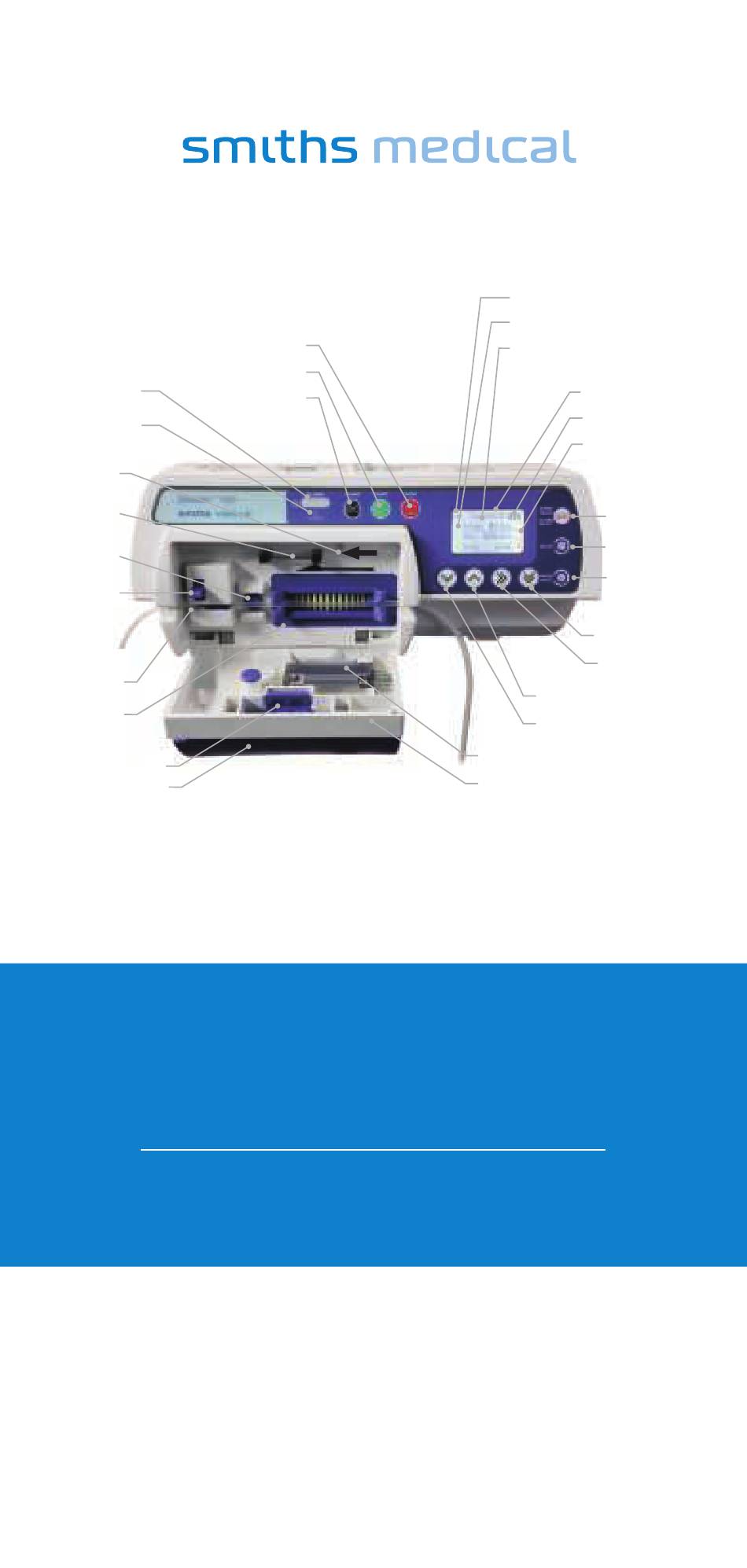

Alarm indicator
External power
indicator
Infusion
direction
Door bolt
Pressure
sensor
Fluid clamp
Ultrasonic
sensor
Dynamic box
Drag hook
Lock handle

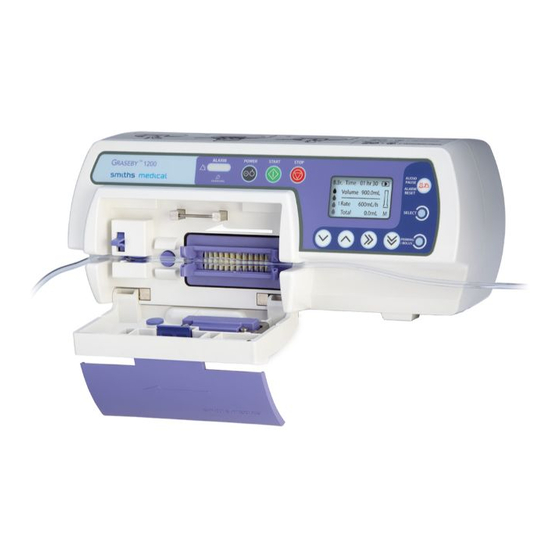

Large Volume Infusion Pump
Read the entire Instruction Manual before operating the Graseby™
1200 Infusion Pump . Failure to properly follow warnings, cautions and
instructions could result in death or serious injury to the patient.
The Graseby™ 1200 is a volumetric infusion pump that provides accurate
and reliable infusions at a rate of 1 - 1200 mL/h
Stop key
Start key
Power key
Graseby
Quick Reference Guide
Infusion tubing brand
Infusion status indicator
Main screen
Barrel clamp
Pump door
1200
™
Time display
Battery indicator
Pressure Indicator
Audio pause/
Alarm reset key
Select key
Priming/Bolus
key
Move cursor key
Shift cursor key
Digit setting key (Up)
Digit setting key (Down)
