IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Part List
A.
Top
1 pc.
H.
Back Stretcher
1 pc.
G.
J.
Back Piece
Front Rail
2 pcs.
3 pcs.
O.
P.
Door
Door
1 pc.
1 pc.
Hardware List
Caster
2 Locking
2 Non-Locking
Small Hex Wrench
1 pc.
4 pcs.
Tool(s) required for assembly: Phillips screwdriver
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
88 5086 95C

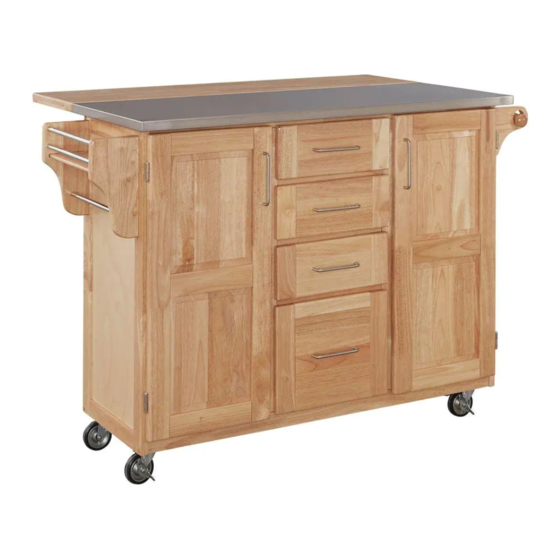

Kitchen Cart
I.
Front Stretcher
1 pc.
K.
Base
1 pc.
R.
Side Rack
1 pc.
T.
Q.
Base Rack
Gate Leg
1 pc.
1 pc.
Hex Wrench
Cam Lock
1 pc.
4 pcs. (+2 extra)
Cam Lock Screw
4 pcs. (+1 extra)
B.
C.
Side Panel
Side Panel
1 pc.
1 pc.
L.
Shelf
2 pcs.
S.
Side Rack
1 pc.
V.
Drawer
3 pcs.
U.
Pipe
3 pcs.
M6x35
M3.5x25
Head Cap Bolt
Wood Screw (long)
14 pcs. (+1 extra)
32 pcs. (+1 extra)
M3.5x13
M4x16
Wood Screw
Wood Screw (short)
22 pcs. (+1 extra)
24 pcs. (+1 extra)
888-680-7460, 877-831-0319
D.
E.
Middle Panel
Middle Panel
1 pc.
1 pc.
M.
Handle Arm
2 pcs.
W.
Drawer
1 pc.
Refer to later page(s) of these
instructions for drawer assembly.
Wood Plug
10 pcs. (+2 extra)
M4x25
Adjustable Pin
Machine Screw
8 pcs. (+1 extra)
12 pcs.
F.
Back Panel
3 pcs.
N.
Round Arm
1 pc.
Pull Handle
6 pcs.
Advertisement
Table of Contents
Related Manuals for Home Styles 88 5086 95C
Summary of Contents for Home Styles 88 5086 95C
- Page 1 Wood Screw Wood Screw (short) 1 pc. 4 pcs. (+1 extra) 4 pcs. 8 pcs. (+1 extra) 12 pcs. 22 pcs. (+1 extra) 24 pcs. (+1 extra) Tool(s) required for assembly: Phillips screwdriver Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
- Page 2 Assembly Instructions 2/7 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ Keep Hex Wrench in a safe place as the bolts may need to be tightened up in the future.
- Page 3 Assembly Instructions 3/7 STEP 4 Attach unit to Base (K). Attach Side Panel (B) to unit with Head Cap Bolts. (See Figure 3) Figure 3 Head Cap Bolt STEP 5 Slide Back Panels (F) into place. Head Cap Bolt Attach Back Stretcher (H) and Front Stretcher (I) to unit with Head Cap Bolts.
- Page 4 Assembly Instructions 4/7 Head Cap Bolt STEP 7 Attach Handle Arms (M) to Side Panel (C) with Head Cap Bolts. Slide Round Arm (N) into place. Attach Gate Leg (Q) to back of unit with Wood Screws into pre-drilled holes. (See Figure 4) Figure 4 Wood Screw STEP 8...
- Page 5 Assembly Instructions 5/7 Drawer (V) Bottom STEP 9 Attach Drawer Front (V1) and Drawer Back (V2) to Drawer Side (V3) with Wood Screws (long). Wood Screw (long) Attach Drawer Side (V4) to unit with Roller at back Wood Screws (long). STEP 10 Wood Screw (short) Slide Drawer Bottom (V5) into the grooves...
- Page 6 Assembly Instructions 6/7 Drawer (W) Bottom STEP 12 Attach Drawer Front (W1) and Drawer Back (W2) to Drawer Side (W3) with Wood Screws (long). Wood Screw (long) Attach Drawer Side (W4) to unit with Wood Screws (long). Roller at back STEP 13 Slide Drawer Bottom (W5) into the grooves Wood Screw (short)
- Page 7 Assembly Instructions 7/7 Cam Lock STEP 15 Attach Top (A) to unit with Cam Locks. (See Figure 7) Slide Drawers (V) and (W) into position. Figure 7 STEP 16 Cover all holes with Wood Plugs. (See Figure 8) Figure 8 Wood Plug...
- Page 8 Buff with a dry clean cloth. Home Styles will provide replacements free of charge for missing or damaged hardware or parts within 30 days of purchase. Digital images of the defective parts may be required. If the product was not purchased from an authorized retail affiliate, Home Styles is under no obligation to provide replacement parts.
