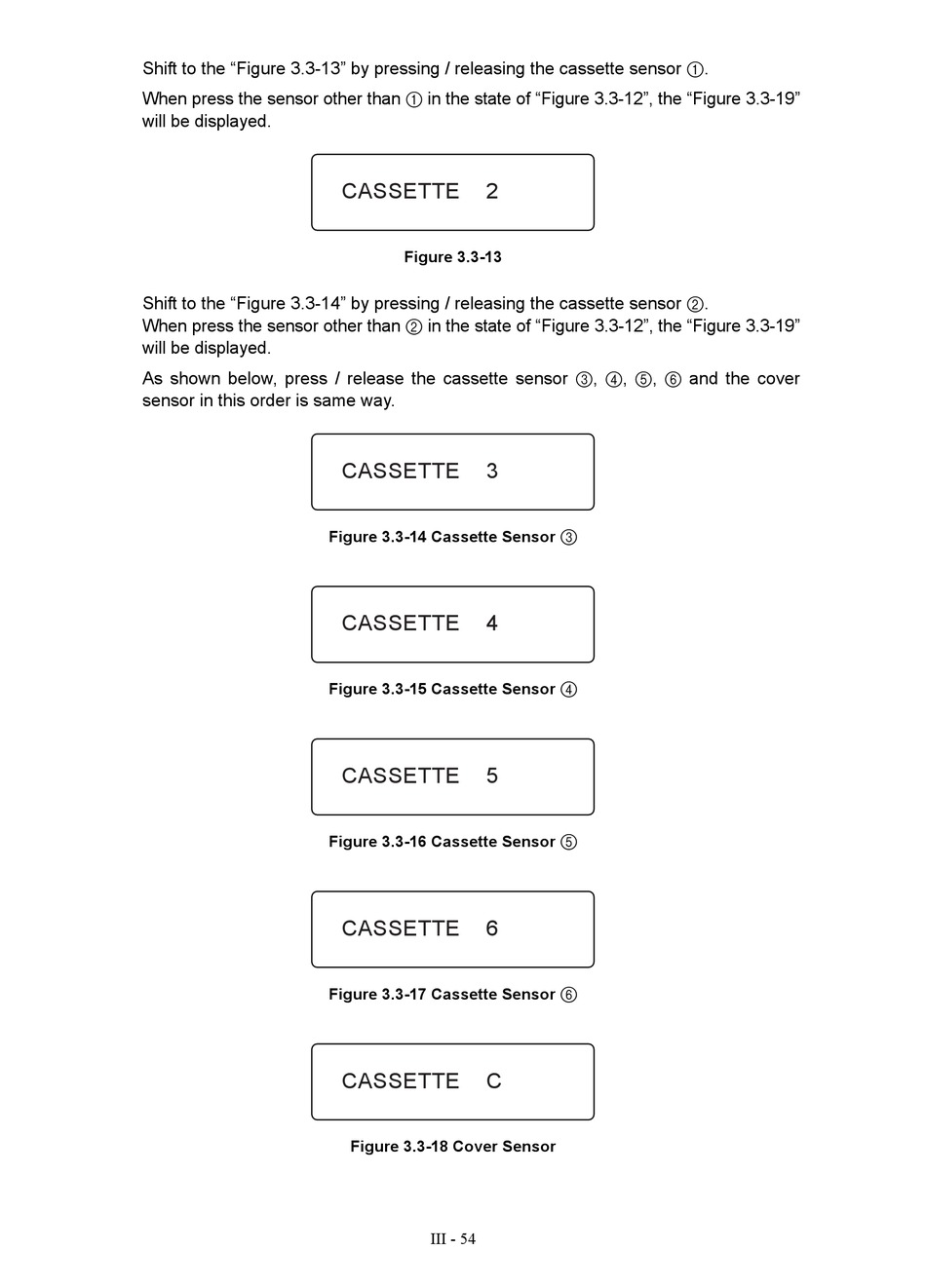

Shift to the "Figure 3.3-13" by pressing / releasing the cassette sensor 1.
When press the sensor other than 1 in the state of "Figure 3.3-12", the "Figure 3.3-19"
will be displayed.
Shift to the "Figure 3.3-14" by pressing / releasing the cassette sensor 2.
When press the sensor other than 2 in the state of "Figure 3.3-12", the "Figure 3.3-19"
will be displayed.
As shown below, press / release the cassette sensor 3, 4, 5, 6 and the cover
sensor in this order is same way.
CASSETTE
Figure 3.3-13
CASSETTE
Figure 3.3-14 Cassette Sensor
CASSETTE
Figure 3.3-15 Cassette Sensor
CASSETTE
Figure 3.3-16 Cassette Sensor
CASSETTE
Figure 3.3-17 Cassette Sensor
CASSETTE
Figure 3.3-18 Cover Sensor
III - 54
2
3
3
4
4
5
5
6
6
C
