(8) Remove the screw, and remove the head ASSY from the chassis ASSY.
NOTE: Do not touch the thermal head.
Screw
Thermal head
Head ASSY
Chassis ASSY

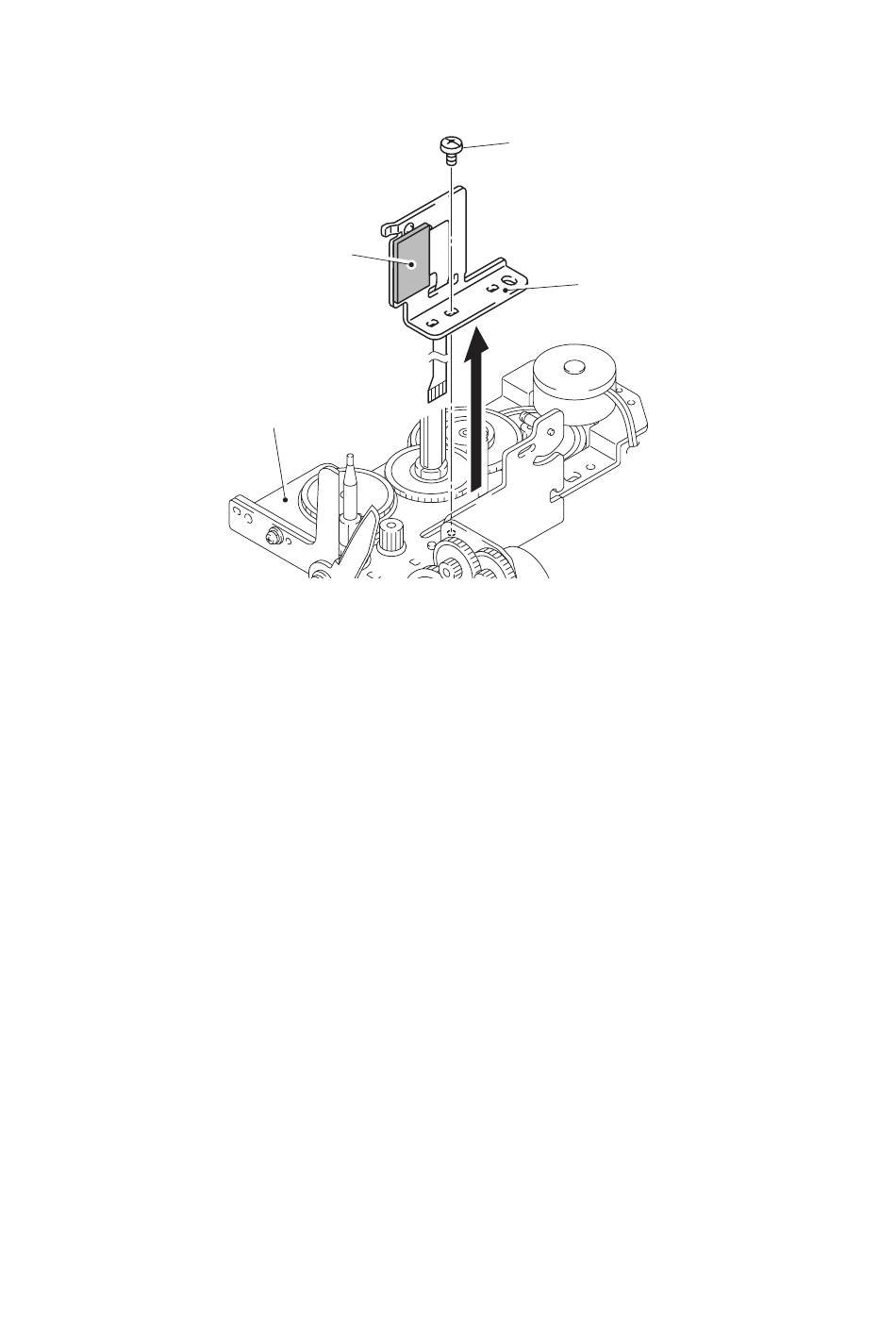

Figure 3.1-11 Disassembling the Chassis ASSY (3)
III - 11
