US Robotics Wireless USB Print Server User Manual page 95

Wireless USB Print Server User Guide

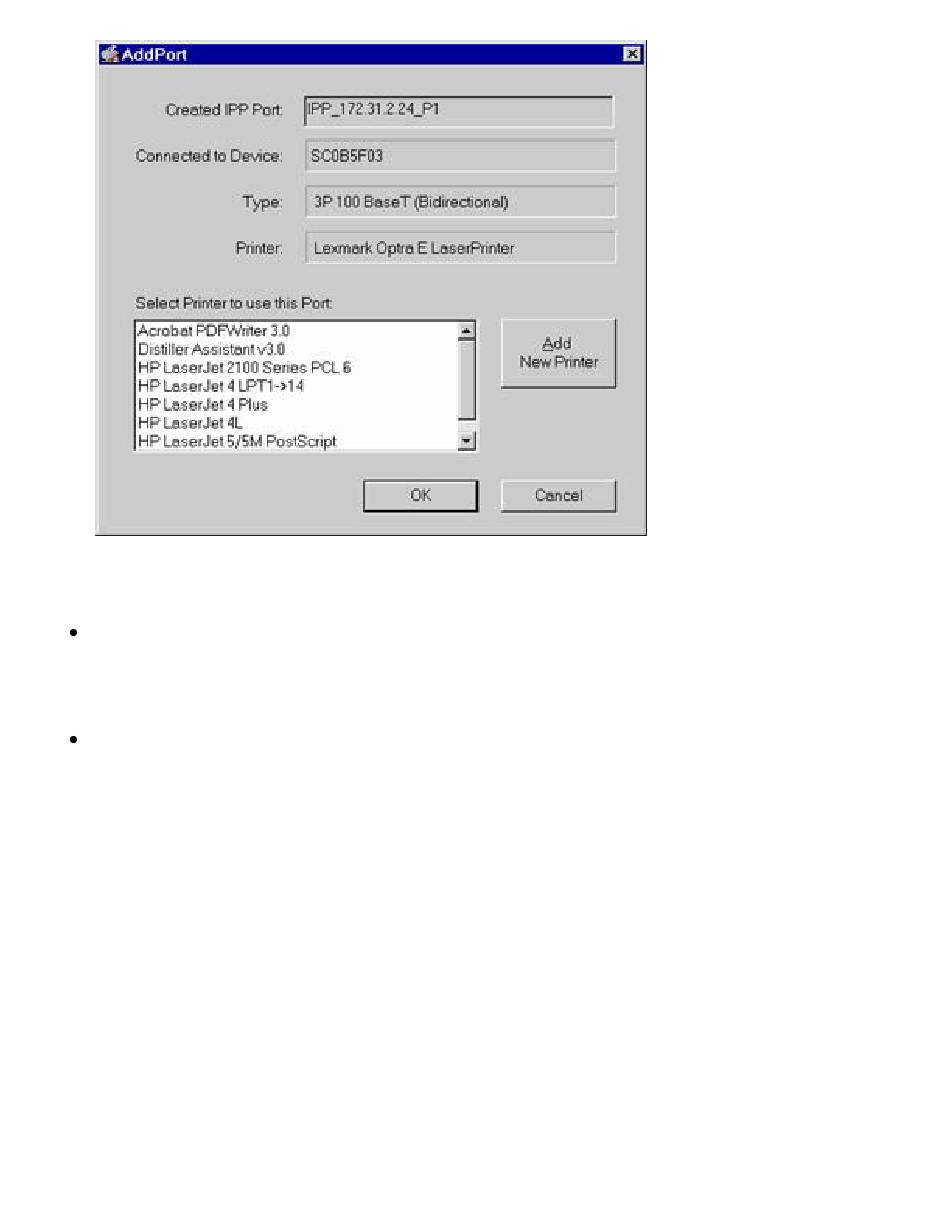

6. Perform one of the following options:
Select an existing printer to use the new port and click OK.
OR
Click Add New Printer to create a new printer to use the IPP port. This will
start the Add Printer wizard. Follow the prompts to complete the process.
Ensure that the new printer uses the IPP port.
Installation is now complete. To create additional IPP Ports, repeat the entire
procedure. The Proxy Server and other options are set individually for each IPP Port.
Changing the IPP Port Settings
After the IPP port is created, perform the following steps:
1. Click Windows Start, Settings, and then Printers.
2. Right-click the IPP Printer and select Properties.
3. Locate and click Port Settings (in the Details or Port tab, depending on your
version of Windows).
