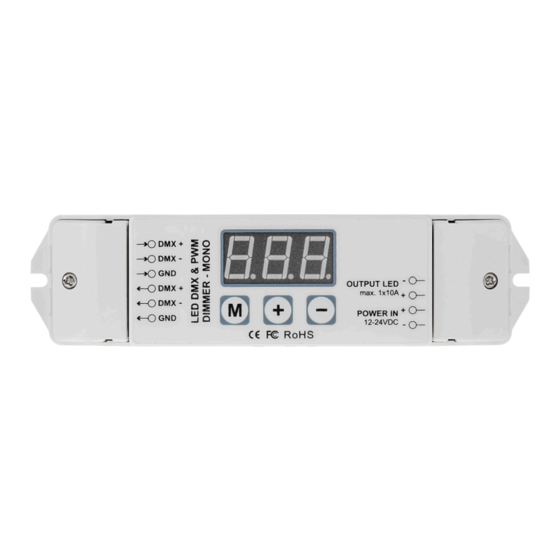

DMX Master/Decoder for LED DMX Controllers
with Digital Address Display - 1 Channel, 10A
One channel DMX Controller/Decoder controls a single LED product
such as a light bar or strip. The DMX base address is easily set using
push button switches under the display. DMX-512 digital control signals
are received via 3 wire terminal strip connection. DMX decoding driver
converts universal DMX512/1990 digital signal to PWM signal, which
can be controlled by DMX512 console. 4096 grey scales are available
when used in master mode. Maximum load 10 Amps available DMX
Starting Channels 001-512.
Operation Interface Instruction
Programming
Setting the base channel:
Press any button to wake up the display if no numbers are displayed. Press and hold M button for 3 seconds until hundreds digit flashes. Use + and - buttons to select hundreds
digit. Press M button until tens digit flashes. Use + and - buttons to select tens digit. Press M button until ones flashes. Use + and - buttons to select ones digit. When the desired
base channel is displayed, do not press any buttons. In approximately 15 seconds, all of the digits in the display will stop flashing and the base channel is set.
Wiring
DMX +
DMX -
GND
DMX +
DMX -
GND
4400 Earth City Expy, St. Louis MO 63045
0.3in
(7mm)
7in (176mm)
-
OUTPUT LED
max. 1x10A
+
M
+
POWER IN
12-24VDC
-
6.4in (162mm)
DMX Output Signal
DMX +
DMX Data High
DMX -
DMX Data Low
GND
DMX Ground
Instructional Sheet
Part Number:
DMX-1CH-10A
Technical Specs
Decode Channel
1CH
Input Signal
DMX-512/1990 digital signal
Output Signal
Constant Voltage PWM
Power Supply
DC 12~24V
Power Dis.
1CH×10A
Power Output
120W(12V)/240W(24V)
Operating Temp.
-30˚C~55˚C
Size
L7''×W1.8''×H1.2''in (L176xW46xH30mm)
Weight
6oz (170g)
Product Dimension
DMX +
DMX -
GND
DMX +
DMX -
M
GND
6.4in (162mm)
0.3in
(7mm)
DMX +
DMX -
GND
DMX +
DMX -
M
GND
DMX Input Signal
DMX +
DMX +
DMX -
GND
DMX -
DMX +
GND
DMX -
M
GND
Output Channels
V-
V+
DC 12-24V
V-
DMX +
V+
DMX -
GND
Display and Buttons
DMX +
DMX -
M
Display
GND
Button M
Button +
Button -
866-590-3533
0.3in
(7mm)
7in (176mm)
-
OUTPUT LED
max. 1x10A
+
+
POWER IN
12-24VDC
-
0.3in
(7mm)
-
OUTPUT LED
max. 1x10A
+
+
POWER IN
12-24VDC
-
POWER SUPPLY
(DMX 512)
DMX Data High
DMX Data Low
-
OUTPUT LED
max. 1x10A
+
DMX Ground
+
POWER IN
12-24VDC
-
(1x10 Amp - 10 Amp Total)
DC Power Output Negative
DC Power Output Positive
POWER SUPPLY
(12 volt - 24 volt DC)
DC Power In Negative
DC Power In Positive
-
OUTPUT LED
max. 1x10A
+
+
Current Starting DMX Channel
POWER IN
12-24VDC
-
Changes Digit Selection
Increase Selection
Decrease Selection
POWER SUPPLY
