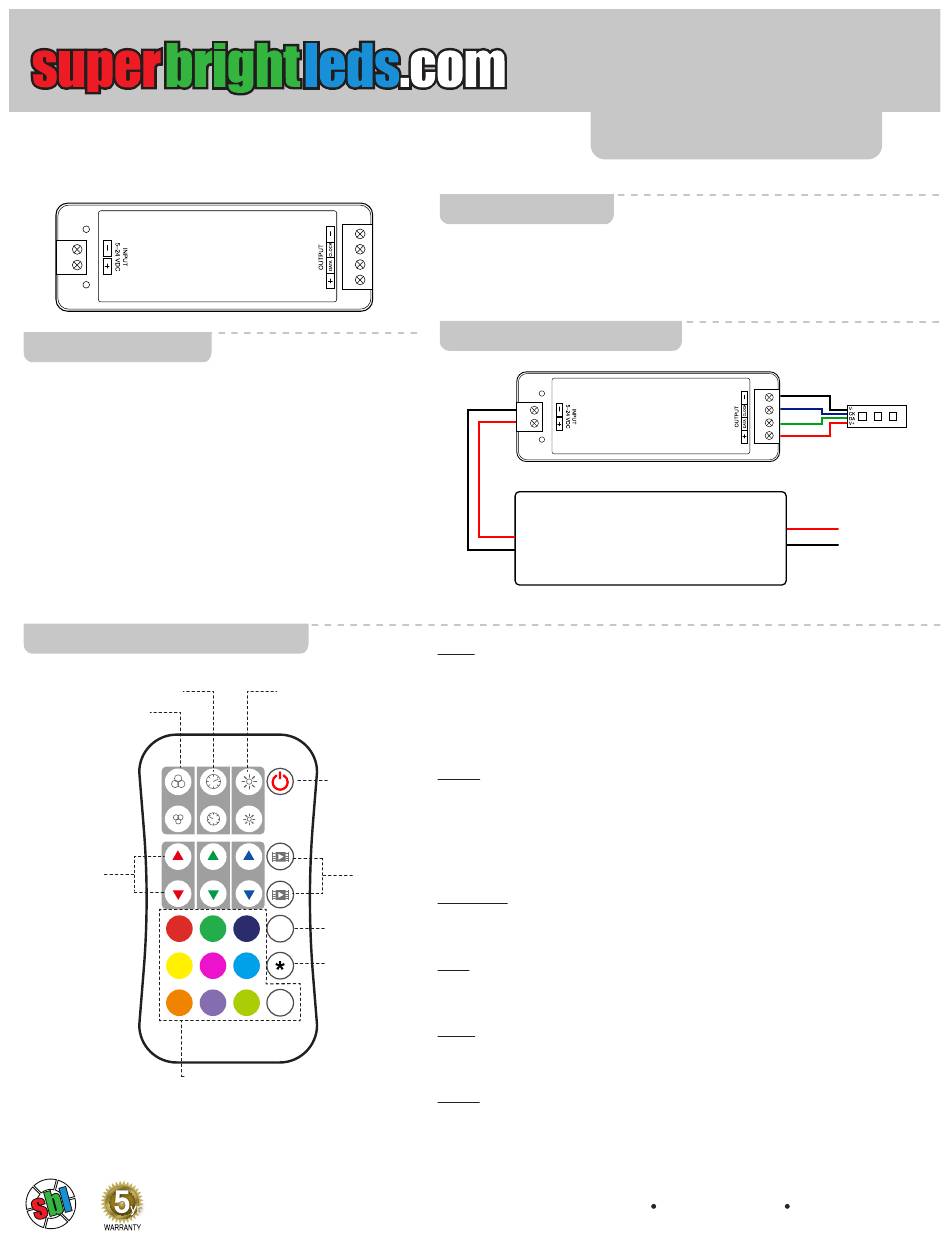

superbrightleds DS-SC User Manual

Important: Read all instructions prior to installation.
Addressable RGB LED Controller and Remote
DS-SC

Pairing Remote(s)

REMOTE(S) MUST BE PAIRED AS PART OF THE
INSTALLATION PROCESS AND DO NOT COME PRE-
PAIRED. EACH CONTROLLER CAN BE PAIRED TO UP
TO TEN (10) REMOTES.
To pair a remote, press match button on the controller, then
immediately press on/off button on the remote. Indicator
light on controller will flash slowly while attempting to
pair, then five times rapidly to indicate successful pairing.
To unpair a remote, hold match button for five seconds.
Indicator light on controller will flash five times rapidly to
indicate successful unpairing.
1 2

Remote Layout and Functions

4 5
speed
7 8
mode
RGB channel
adjustment
1
4
7
1: red, 2: green, 3: blue, 4: yellow,
5: magenta, 6: cyan, 7: orange, 8: purple,
9: light green, 10: natural white
DS-SC
3
W
6
brightness
9 0
ON/OFF
scene
white
2 3 W
function
5 6
8 9 0

Safety and Notes

• Product should be installed and serviced in accordance with applicable national,
state, and local building and electrical codes.
• To reduce the risk of electric shock, ensure that the main power source and circuit
breakers are switched off before performing any installation or wiring procedures.
Example Wiring Diagram
Mode
Once setup is complete (see page 2) press to cycle between
Preprogrammed Modes. Hold the upper mode (mode plus)
button for two seconds to run the mode cycle demo setting.
Hold the lower mode (mode minus) button for two seconds
to return to and run mode 1.
Speed
Press to adjust the speed of the selected preprogrammed
mode. Hold the upper speed (speed plus) button for two
seconds to select the fastest speed. Hold the lower speed
(speed minus) button for two seconds to select the slowest
speed.
Brightness
Press to adjust brightness in ten percent increments. Hold
for continuous 256 level adjustment.
RGB
Press to adjust in ten percent increments. Hold for continuous
256 level adjustment.
White
Press to turn white (RGB mix) on/off. Hold for continuous
256 level adjustment.
Scene
Each scene button can save one setting. Setting is saved
by holding scene button for two seconds. Press the scene
button after saving settings to recall those settings.
Rev Date: V2 12/07/2020
4400 Earth City Expy, St. Louis, MO 63045
User Manual
DS-SC (with DS-RT09)
DS-SC
Power Supply
866-590-3533
Addressable
RGB Strip
L
N
