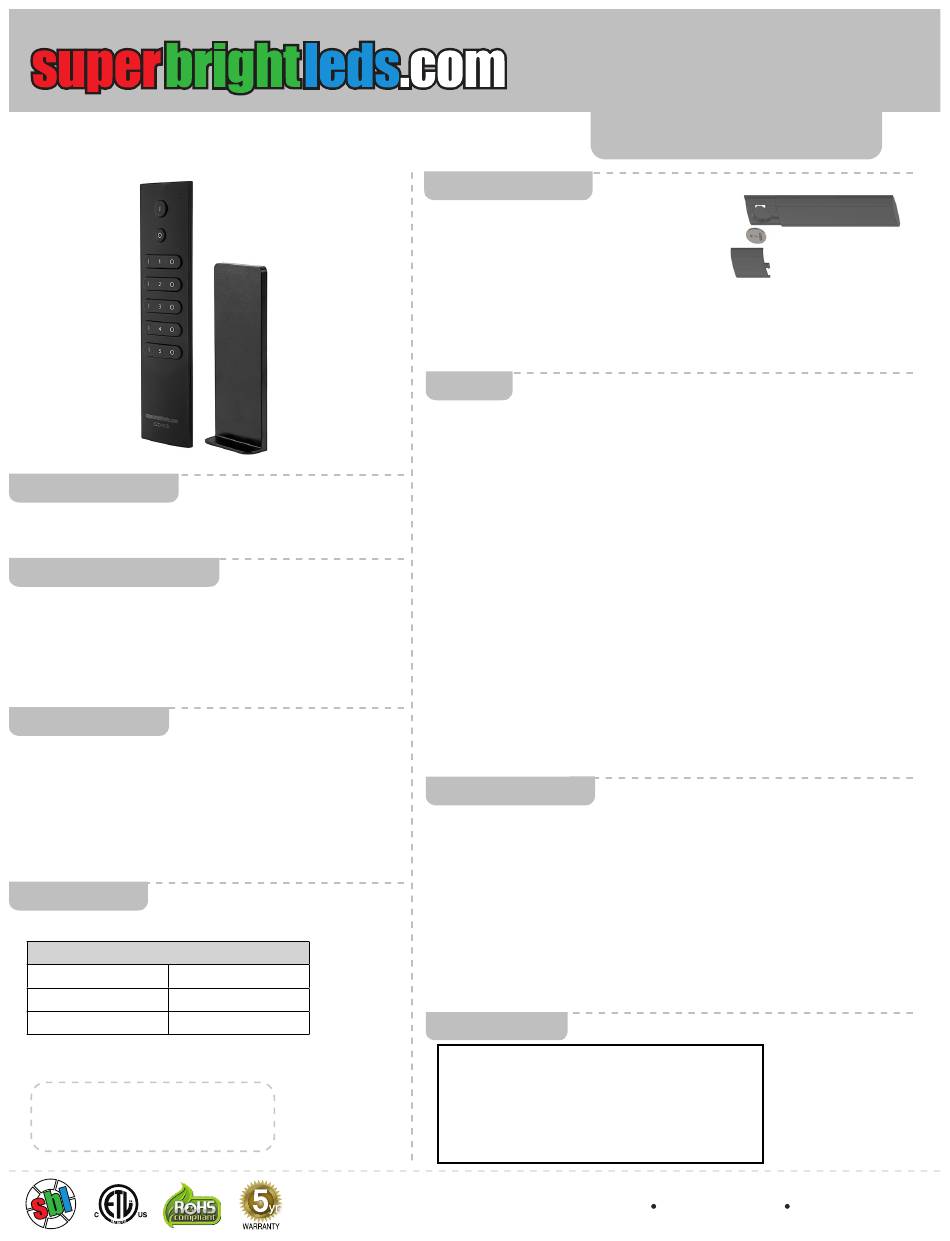

superbrightleds EZD-1C5 User Manual

Important: Read all instructions prior to installation.
Wireless Remote for EZ Dimmer Series Controllers
Parts Included

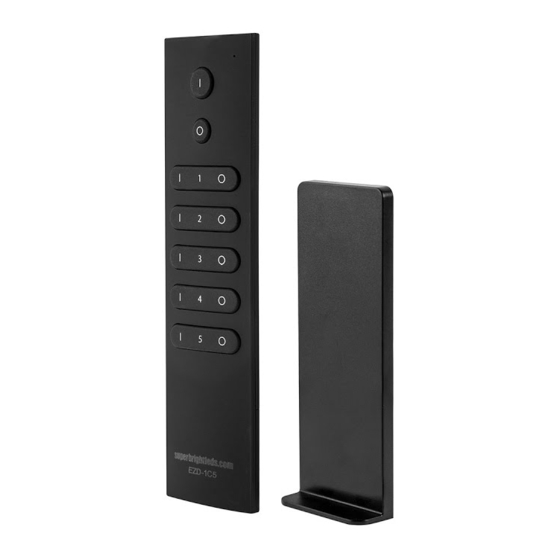

1 - 5-zone LED dimmer remote (battery included)
1 - magnetic remote mount and mounting hardware
Compatible Controllers
EZD-4C8A has four 8 A output channels
EZD-1C8A has one 8 A output channel
Note: Output channels cannot be controlled independently
and will all dim or brighten together—multiple channels are
to accommodate additional electrical load.
Safety and Notes
• Product should be installed and serviced in accordance
with applicable national, state, and local building and
electrical codes.
• To reduce the risk of electric shock, ensure that the main
power source and any applicable circuit breakers are
switched off before performing any installation or wiring
procedures.
Specifications
Remote
EZD-1C5
Battery
Operating Frequency
FCC ID Number 2AHST-RF283X
Controllers
Check product label for specific electrical
specifications related to installation.
Improper installation will void warranty.
CR2025
868 MHz
Set-Up Instructions
Remote
Remove the battery cover, then remove the
plastic isolator around the battery.
Controller
With supply power off, loosen the labeled
terminal screws and connect strip(s) as you
would during installation. Turn power on to
check proper operation.
Pairing
Multiple remotes can be paired to a controller, and each remote can be
paired to multiple controllers. If a system with multiple controllers and/or
multiple remotes has components that are not in sync, unpair and re-pair
until all components are synced properly.
Controller and Remote
Begin pairing by pressing the "pairing switch" button on the controller.
Next, press one of the zone on (I) buttons on the remote to assign the
controller to that zone. Lights will blink once to indicate pairing.
Note: To unpair remote(s), press and hold the controller's "pairing switch"
button until the lights blink twice.
Master/Slave Controller Setting
EZD-4C8A controllers can be set to master or slave by positioning
a jumper as illustrated on the controller. The main controller should
be set as the master, which will emit a synchronization signal to any
associated controllers set to slave.
Note: Master and slave setting will only affect controllers paired to the
same zone.
Remote Functions
Master On/Off Buttons
Turn on (I) / off (O) all controllers that are paired to the remote.
Zone On/Off/Intensity Buttons
Buttons are labeled 1–5, one for each zone. Pressing a zone on (I) /
off (O) button will turn that zone on/off. When a zone is on, holding the
(I) or (O) buttons to the left or right of the zone number will brighten
or dim that zone.
Note: All lights that are paired to a zone will dim together. Individual
channels on multi-channel remotes have no independent adjustment.
FCC Statement
This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) This device must
accept any interference received, including interference that
may cause undesired operation. Any changes or modifications
in construction of this device which are not expressly approved
by the party responsible for compliance could void the user's
authority to operate the equipment.
Rev Date: V0.1 03/10/2020
4400 Earth City Expy, St. Louis, MO 63045
User Manual
EZD-1C5
866-590-3533 superbrightleds.com
