superbrightleds LDRF-RGB6-TC2B Instruction Sheet

Important: Read all instructions prior to installation.
RGB Controller with RF Touch Color Re mote
Parts Included
1 - RGB Controller
1 - RF Touch Color Remote

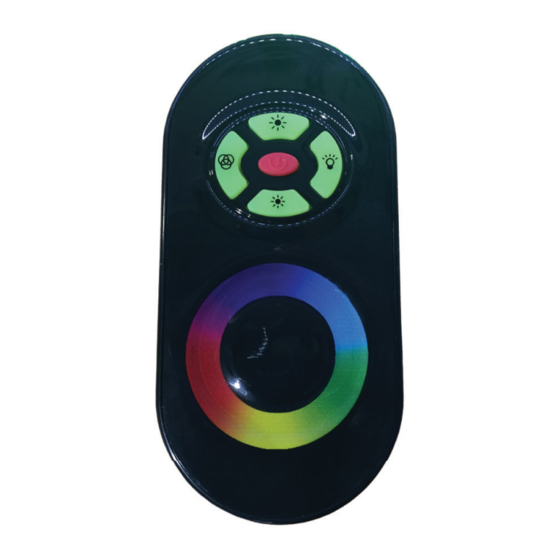

RF Remote
General Description
LDRF-RGB6-TC2(Black or White remotes) three channel RGB (Red,
Green, Blue) LED controller with color touchwheel for directly selecting a
wide range of colors.
Off ers 14 dynamic modes and static white with adjustable brightness,
static single color modes, and speed and mode retention (controller
resumes modes with the settings previously selected on power toggle).
Instructions
Pre-test & Confi gure
May be used with RGB strips, bars, modules, or other RGB LED products.
Connect LEDs to power supply and controller (see "Method 1" ).
Turn on LEDs using the included remote controller to ensure proper operation of the
LEDs, power supply, controller, and remote.
Choose suitable dry location for the power supply and controller.
866-590-3533
Button Functions
Turn all LEDs on and off , retaining
the last setting on power toggle.
COLOR WHEEL Directly select color on wheel from
static color mode or color selection
by touching the color wheel. Rotate
fi nger around to fi ne tune desired
color.
Instant White Mode
Switches between static colors and
static white
BRIGHTNESS +/- Dim LEDs in static white mode and
dynamic mode by pressing (
symbol. Brighten LEDs by pressing
( ) symbol.
SPEED +/- Increase ( ) and decrease (
speed on dynamic modes.
MODE +/- Cycle through 14 diff erent dynamic
modes.
RF remote controller has a signal range
up to 65ft (20m) and requires 3 x AAA
batteries (not included).
support@superbrightleds.com
Instruction Sheet
LDRF-RGB6-TC2B
Static White Mode
While in dynamic or static color mode,
Press once to activate white. Brightness is adjustable.
Static Color Mode
To select a static color, press the
touch the color wheel to select your color.
Dynamic Mode Dimming
)
Dimming in dynamic mode must be done in the static white mode
fi rst.
Press to activate the white mode.
)
Press to increase brightness and
brightness.
Then press to switch back to dynamic mode. Only the modes
listed as adjustable on page 2 for brightness will respond to the
dimming function.
Safety
DO NOT connect controller or LEDs directly to 120V AC
power. This controller requires a 12V or 24V DC power
supply.
DO NOT exceed max load of 18 Amps, overloading the
controller may cause overheating, shorting, and possibly
failure of controller.
Be sure the power supply is not plugged into an outlet before
connecting or disconnecting any of the systems components.
DO NOT expose the controller or remote to direct or indirect
moisture.
Always observe proper polarity when connecting power and
load.
Part Number:
LDRF-RGB6-TC2W
icon until static color, then
to decrease
