superbrightleds WCBT-RGB10 User Manual

Important: Read all instructions prior to installation.

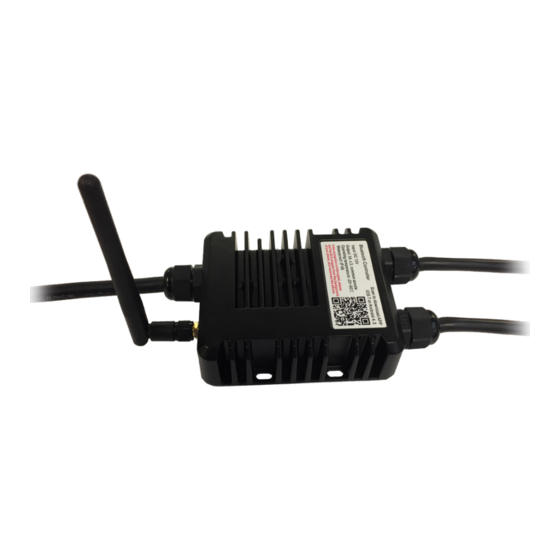

Bluetooth RGB LED Waterproof Controller
Included Parts
1 - Bluetooth RGB LED Waterproof Controller
8 - 22-18 AWG Butt Crimp Connectors
4 - M4 Bolts
4 - M4 Washers
4 - M4 Nuts
Specifications
WCBT-RGB10
Input Voltage
Output
Max Wattage
Operating Temperature
IP Rating
*Each channel is split into two outputs. Individual output wires
should not exceed 5 A per wire.
Application Connection and Operation
BLUETOOTH DEVICE PAIRING,
GROUP MENU
12–24 VDC
10 A per channel*
360 W (12 VDC) / 720 W (24 VDC)
-22°–113° F (-30°–45° C)
IP67
Toggle Color
Wheels (RGB,
CCT, Brightness)
SAVED COLOR
SELECTOR
Download Instructions
1. Download application by scanning QR code
or by searching for LED BLE in app store.
2. Please check if device is powered and
bluetooth is turned on.
3. DO NOT connect bluetooth controller within
device's bluetooth settings.
DYNAMIC MODE CUSTOM COLOR
SELECTION DYNAMIC MODES
SETTINGS
POWER
COLOR
SELECTION
HOME SCREEN
DIMMING
Rev Date: V1.0 04/16/2018
4400 Earth City Expy, St. Louis, MO 63045
User Manual
WCBT-RGB10
TIMER
MUSIC / MICROPHONE
866-590-3533 superbrightleds.com
