superbrightleds GL-C-001W User Manual

Important: Read all instructions prior to installation.
RGB / CCT / RGBW / RGBCCT LED Controller

Safety and Notes

• Do not connect controller directly to AC power. This controller requires
12–54 VDC power supply. Voltage of power supply and any connected
lights must match.
• Do not exceed max current or wattage as listed in the spec table.
Overloading the controller will cause overheating and damage
the controller.
• Ensure the power supply is not plugged into an outlet before connecting
or disconnecting any of the systems components.
• Do not expose the controller or remote to direct or indirect moisture.
• Always observe proper polarity when connecting wiring.
• Improper installation and magnetic fields will negatively affect the
controller's communication distance.

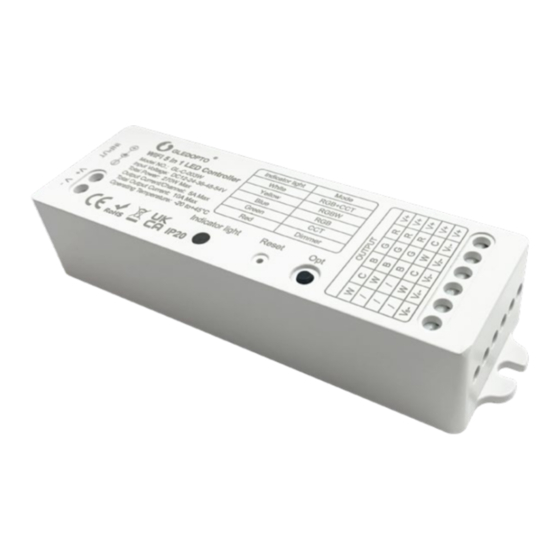

Controller Layout

1. LED Indicator
LED indicator changes color to display with the current compatibility mode.
Refer to the indicator color chart to the right.
2. Reset
Press once to switch frequency. Press and hold for 2 seconds to reset
the controller. In order to be compatible with different power supplies, the
frequency can be set to 600 Hz, 800 Hz, 1,000 Hz (default), 2,000 Hz,
4,000 Hz, 8,000 Hz. Each time the frequency is switched, the indicator
light will flash pink a specific number of times to show which frequency
is now being used.
3. Opt
Press to switch modes. Press and hold for 2 seconds to add the current
ON/OFF state to memory.
Note: Each time the mode is switched, the controller will need to be re-paired.

Wi-Fi Pairing

1. Connect to a 2.4 GHz Wi-Fi network.
Note: If device was already paired, please reset the device.
2. Apply power to the controller.
3. Open the Smart Life app to add the controller.
4. Follow the in app instructions.
5. If the pairing is sucessful, the indicator light will stop flashing.
Compatibility
Mode
Indicator Color
Frequency 600 Hz
Number of
1
Flashes
Rev Date: V1 05/24/2022
4400 Earth City Expy, St. Louis, MO 63045
User Manual
GL-C-001W
RGB-
RGBW RGB
CCT
White Yellow Blue
800 Hz 1,000 Hz 2,000 Hz
2 3 4
866-590-3533
CCT Dimmer
Green Red
4,000 Hz 8,000 Hz
5 6
superbrightleds.com
