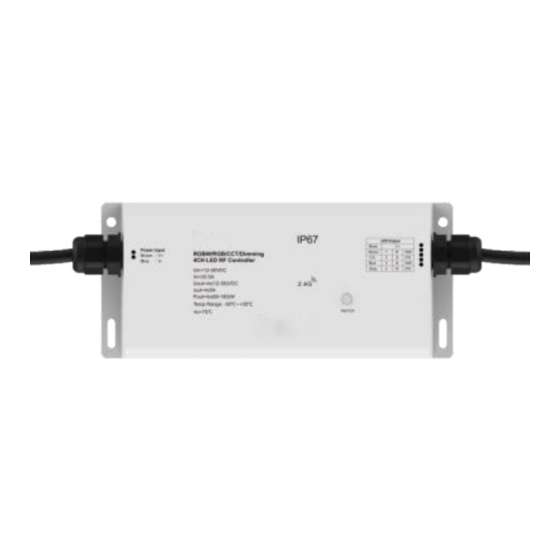

superbrightleds DS-CO4 User Manual

Important: Read all instructions prior to installation.
Rgb/Rgbw, CCT, and Dimming Controller

Safety and Notes

• Product should be installed and serviced in accordance with applicable national,
state, and local building and electrical codes.
• To reduce the risk of electric shock, ensure that the main power source and circuit
breakers are switched off before performing any installation or wiring procedures.
• Each controller can be paired to up to ten (10) remotes.
• Controller will auto-transmit signals from remote to additional controllers within
98.4 ft (30 m).

Compatible Remotes

• DS-RGBW - RGB/RGBW remote
• DS-CCT - Tunable White (CCT) remote
• DS-DM - Dimming remote

Pairing Remote(s)

REMOTE(S) MUST BE PAIRED AS PART OF THE INSTALLATION
PROCESS AND DO NOT COME PRE-PAIRED.
To pair a remote, press match button, then immediately press on/
off button on the remote. Connected light(s) will flash three times to
indicate successful pairing. To unpair a remote, hold match button
for five seconds, Connected light(s) will blink five times to indicate
all remotes have been unpaired.

Remote Controls

DS-RGBW
changes mode speed
cycle through modes
dimming (-)
R G
hold to save current settings/
press to recall saved settings
color selection
dimming (+) dimming (-)
B W
preset single channel settings

Controller Specifications

Model
Operating Temperature
IP Rating

Dynamic RGB/RGBW Mode List

Mode
01
02
03
04
05
06
07
08
09
10
DS-CCT
hold to save current settings/
press to recall saved settings
CCT selection
dimming (+)
G B
100% 50% WW NW
preset CCT levels
preset dimming levels
Rev Date: V2 09/23/2020
4400 Earth City Expy, St. Louis, MO 63045
User Manual
DS-CO4
DS-CO4
-22°–131° F (-30°–55° C)
Check product label for specific electrical
specifications related to installation.
Improper installation will void warranty.
Mode Description
RGB Jump
RGB smooth
6-color jump
6-color smooth
Yellow, Cyan, Magenta smooth
RGB fade in/out
Red fade in/out
Green fade in/out
Blue fade in/out
White fade in/out
DS-DM
hold to save current settings/
press to recall saved settings
dimming level selection
dimming (-) dimming (+)
G B
100% 75% 50% 25%
preset dimming levels
866-590-3533
IP67
superbrightleds.com
