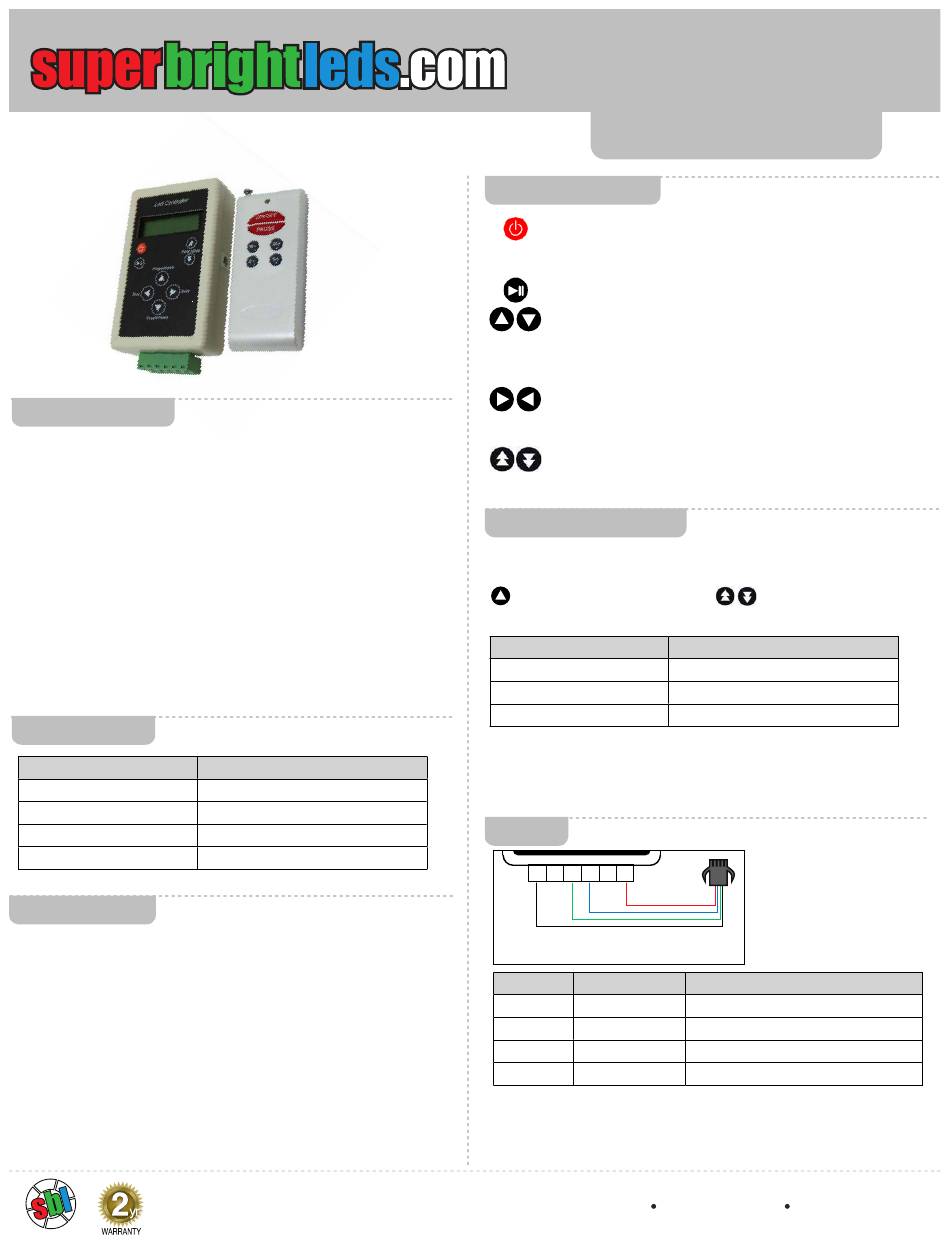

superbrightleds RGB-MDC83 User Manual

Important: Read all instructions prior to installation.
Important: Read all instructions prior to installation.
Dream-Color Chasing RGB Controller and Remote
Safety and Notes
• Supports twelve unique IC strip styles and has pixel adjustment from
16 to 2,048 pixels to accommodate different strip lengths.
• Input power should be 5–24 VDC (matching connected strip). Input
power connection is a 5.5 mm / 2.1 mm DC barrel connector.
• Ensure all electrical connections are secure and follow the provided
wiring instructions.
• Strips require data signal to operate properly. Use caution if cutting
strip to custom length as interrupting the data signal will cause the
strip(s) to malfunction. Strips should be powered from a single power
supply connected to the controller, as additional power connections
after the controller will cause the strip(s) to malfunction.
• Jumper wires/interconnects should be no more than 8" between strip
sections to avoid issues with data loss.
Specifications
Model
Operating Temperature
Supply Voltage
Maximum Output Power
Maximum Remote Range¹
FCC Statement
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation. Any changes
or modifications in construction of this device which are not expressly
approved by the party responsible for compliance could void the user's
authority to operate the equipment.
¹Range may be decreased by interference from electrical signals and
physical barriers
²This setting is for the full 5 m strip, part number NDC2-RGB150. Increase
or decrease the pixel count by 1 for each additional 0.1 meter of strip.
RGB-MDC83
-4°–140° F (-20°–60° C )
5–24 VDC
5 A
175 ft (53.3 m)
Controller Buttons
ON/OFF button turns the controller on or off. The controller must
be off (powered on in standby mode) to adjust IC type, pixels,
and LED sequence.
Play/pause button can pause and then resume dynamic modes.
Mode increase/decrease buttons cycle up or down to the
next mode. They also adjust IC type, pixel number, and LED
sequence in the settings. M+ and M- perform the same function
on the remote control.
Speed up/down buttons increase or decrease speed during
dynamic modes. S+ and S- perform the same function on the
remote control.
Value selection buttons cycle through different setting types
(IC type, pixel number, and LED sequence) in standby mode.
Setup and Installation
Begin the installation, by connecting an appropriate power supply
to the controller. With the controller in standby mode (off) use the
button to select each setting and
setting values to match the table below.
Setting
IC
LED Sequence
Pixels²
Once all setting adjustments have been made, and
with supply power off, connect strip as shown using
the provided adapter.
Wiring
D C
V-
(Included LC4M-PT
Terminal Connection
V- strip negative
Data
CLK strip clock
V+ strip positive
Rev Date: V2 01/28/2020
4400 Earth City Expy, St. Louis, MO 63045
User Manual
RGB-MDC83
WIFI-CON
buttons to adjust the
Value
WS2811
RGB
50
V+
connector)
Wire Color for NDC2-RGB150
strip data
866-590-3533
black
green
blue
red
superbrightleds.com
