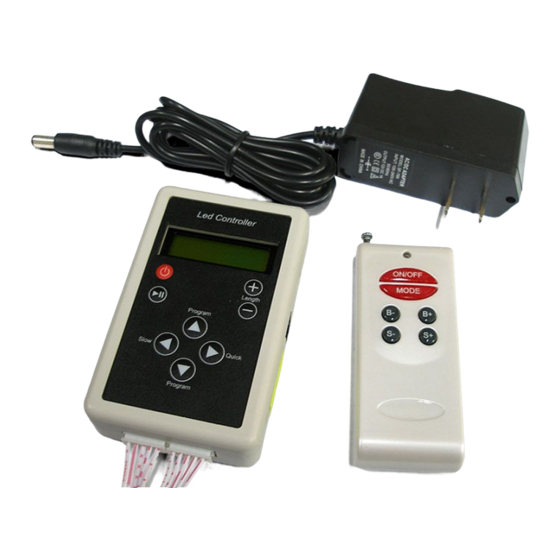

superbrightleds Dream-Color RGB-DC83 User Manual

Three color rgb led controller with rf remote control & 12vdc power supply
Hide thumbs
1
2
3
4

Advertisement

Quick Links

Download this manual
User Manual for Model
RGB-DC83 Dream-Color Controller
Three Color RGB LED Controller with
RF Remote Control & 12VDC Power Supply
The model RGB-DC83 controller is designed to be used with the SWDC-RGB
series Light Strip. Control the sequence mode and speed of 83 different
dynamic chasing patterns from the RF Remote Controller or directly on the
RGB Controller unit. The Dream-Color systems controls each RGB LED in
the strip independently.
I. Specifications:
Supply voltage: DC 12V
Maximum Drive Capacity: 510 LEDs (255 IC)
Output: Two SPI Signals
Static power consumption: 2.2 Watt
Product size: (L)94 Χ (W)59 Χ (H)26 mm
Working Temperature: -20~60°C
Net weight: 185g

Advertisement

loading
Need help?

Need help?

Do you have a question about the Dream-Color RGB-DC83 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for superbrightleds Dream-Color RGB-DC83

Summary of Contents for superbrightleds Dream-Color RGB-DC83

  • Page 1 User Manual for Model RGB-DC83 Dream-Color Controller Three Color RGB LED Controller with RF Remote Control & 12VDC Power Supply The model RGB-DC83 controller is designed to be used with the SWDC-RGB series Light Strip. Control the sequence mode and speed of 83 different dynamic chasing patterns from the RF Remote Controller or directly on the RGB Controller unit.
  • Page 2 II. Controller Button Functions: Symbol Action Remote Controller Control Unit Power unit ON and OFF – Controller settings retained when powered off The LCD will Display IC Number when off - each IC controls two RGB LEDs (see +/- description below) Power must be off for +/- buttons to work Play/pause button, Pause to create Static colors, play to start dynamic chasing pattern...
  • Page 3 IV. Program Modes Table: PROGRAM MODE DESCRIPTION PROGRAM MODE DESCRIPTION All color wave forward direction Change color red-purple-red center in All color wave backward direction Change color red-yellow-red forward direction All color center out wave Change color red-yellow-red backward direction All color center in wave Change color red-yellow-red center out Three color forward direction wave...
  • Page 4 V. Typical Wiring Schematic:...
