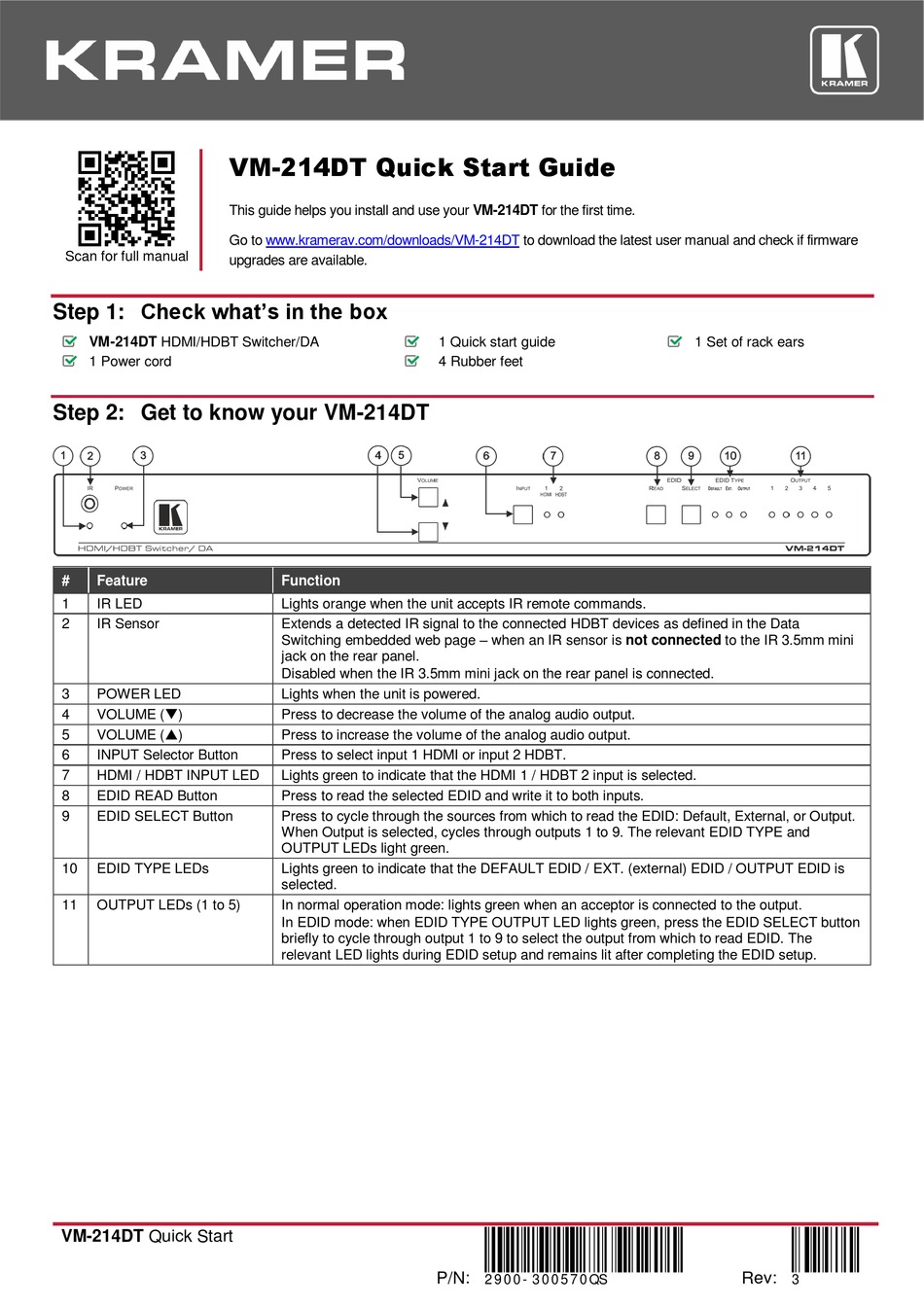

Kramer VM-214DT Quick Start Manual

Scan for full manual
Step 1: Check what's in the box

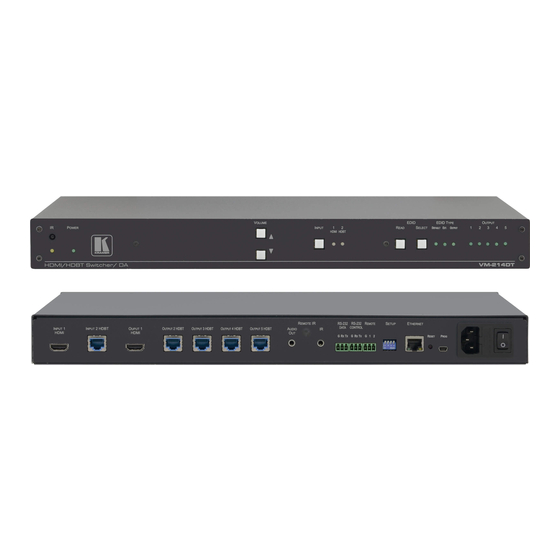

VM-214DT HDMI/HDBT Switcher/DA
1 Power cord
Step 2: Get to know your VM-214DT
# Feature
1 IR LED
2 IR Sensor
3 POWER LED
4 VOLUME ()
5 VOLUME ()
6 INPUT Selector Button
7 HDMI / HDBT INPUT LED
8 EDID READ Button
9 EDID SELECT Button
10 EDID TYPE LEDs
11 OUTPUT LEDs (1 to 5)
VM-214DT Quick Start
VM-214DT Quick Start Guide
This guide helps you install and use your VM-214DT for the first time.
Go to www.kramerav.com/downloads/VM-214DT
upgrades are available.
Function
Lights orange when the unit accepts IR remote commands.
Extends a detected IR signal to the connected HDBT devices as defined in the Data
Switching embedded web page – when an IR sensor is not connected to the IR 3.5mm mini
jack on the rear panel.
Disabled when the IR 3.5mm mini jack on the rear panel is connected.
Lights when the unit is powered.
Press to decrease the volume of the analog audio output.
Press to increase the volume of the analog audio output.
Press to select input 1 HDMI or input 2 HDBT.
Lights green to indicate that the HDMI 1 / HDBT 2 input is selected.
Press to read the selected EDID and write it to both inputs.
Press to cycle through the sources from which to read the EDID: Default, External, or Output.
When Output is selected, cycles through outputs 1 to 9. The relevant EDID TYPE and
OUTPUT LEDs light green.
Lights green to indicate that the DEFAULT EDID / EXT. (external) EDID / OUTPUT EDID is
selected.
In normal operation mode: lights green when an acceptor is connected to the output.
In EDID mode: when EDID TYPE OUTPUT LED lights green, press the EDID SELECT button
briefly to cycle through output 1 to 9 to select the output from which to read EDID. The
relevant LED lights during EDID setup and remains lit after completing the EDID setup.
to download the latest user manual and check if firmware
1 Quick start guide
4 Rubber feet
P/N:
2 9 0 0 - 3 0 0 5 7 0 QS
1 Set of rack ears
Rev:
3
