Kramer VM-212DT Quick Start Manual

VM-212DT Quick Start Guide
This guide helps you install and use your VM-212DT for the first time.
Go to
Scan for full manual
firmware upgrades are available.
Step 1: Check what's in the box

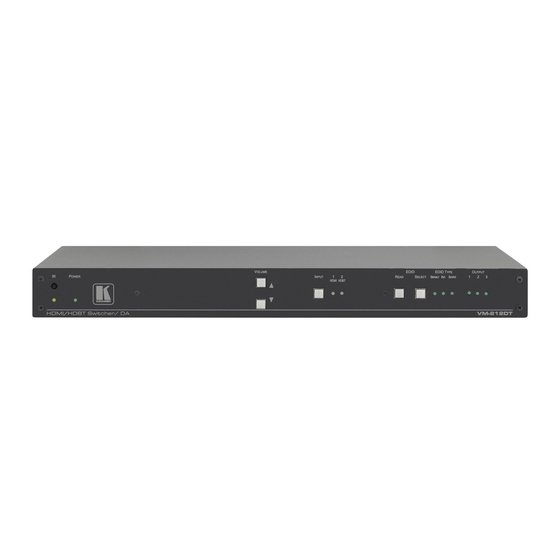

VM-212DT HDMI/HDBT Switcher/DA
1 Power cord

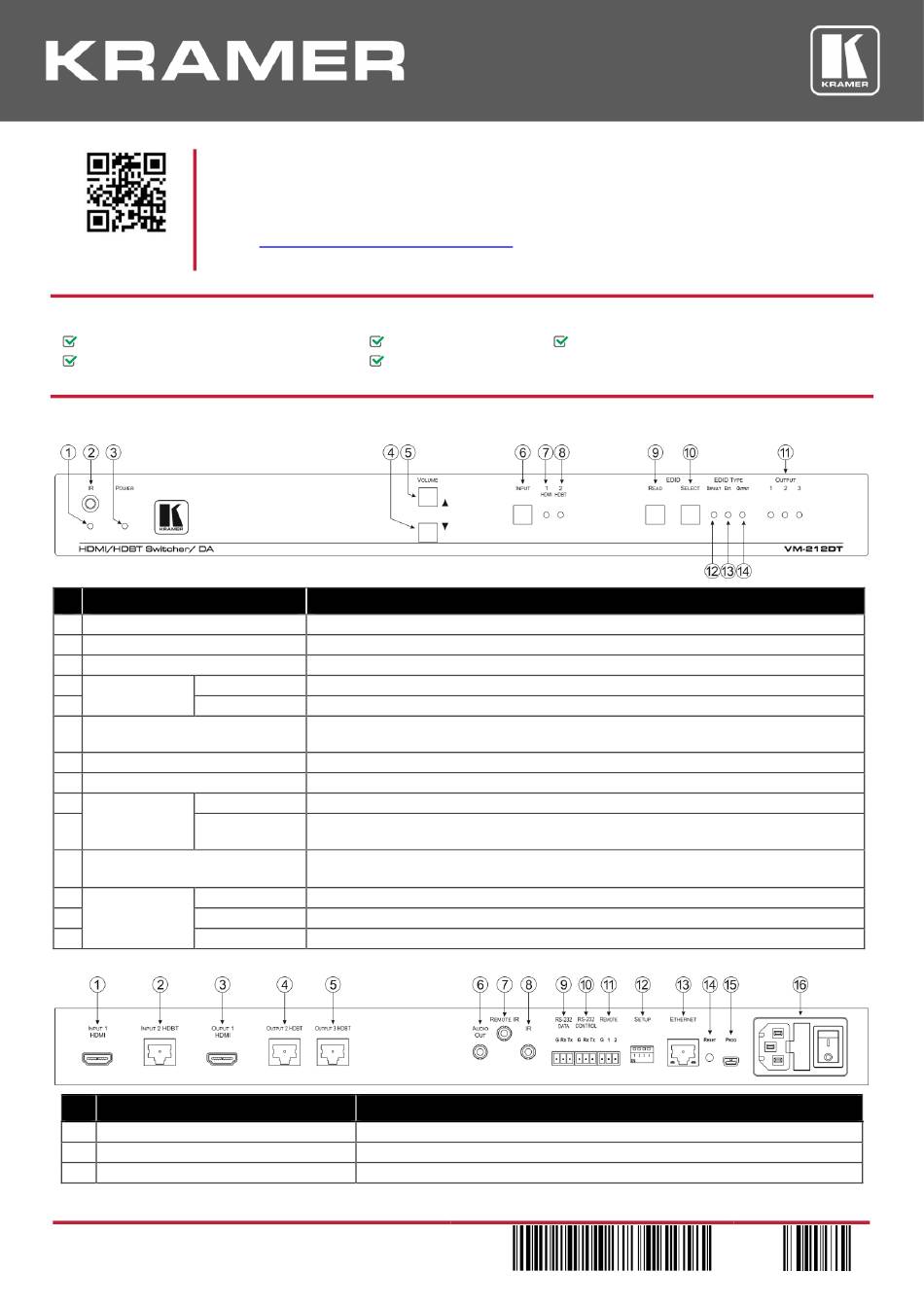

Step 2: Get to know your VM-212DT

# Feature
1 IR LED
2 IR Remote Control Sensor
3 POWER LED
▼ Down
4
VOLUME
Buttons ▲ Up
5
6 INPUT Button
7 1 HDMI LED
8 2 HDBT LED
9 READ
EDID Buttons
10 SELECT
11
OUTPUT LEDs 1 to 3
12 DEFAULT
EDID TYPE
13 EXT.
LEDs
14 OUTPUT
# Feature
1 INPUT 1 HDMI Local Input
2 INPUT 2 HDBT Remote Input
3 OUTPUT 1 HDMI Local Output
VM-212DT Quick Start (P/N: 2900-300878QS REV 2)
www.kramerav.com/downloads/VM-212DT
4 Rubber feet
1 Quick start guide
Function
Lights yellow when receiving signals from the IR remote control sensor.
Sensor for an IR transmitter. IR data is routed according to the IR routing configuration.
Lights green when the unit receives power.
Press to decrease the audio volume.
Press to increase the audio volume.
Press to toggle between HDMI Input 1 and HDBT Input 2. Lights red when the input is valid,
selected and routing to an output(s).
Lights green when HDMI 1 Input is selected.
Lights green when HDBT 2 Input is selected.
Press to read the selected EDID to both inputs (see Step 6).
Press to cycle through the EDID sources, (default, external, and each output) from which to
read the EDID. The relevant LED lights green (see Step 6).
In normal operation mode: lights green when an acceptor is connected to the output.
In EDID mode: the relevant LEDs light during EDID setup (see Step 6).
Lights green when the default EDID is selected (see Step 6).
Lights green when an external EDID is selected.
Lights green when one of the output EDIDs is selected.
Function
Connect to the HDMI source.
Connect to the remote HDBT transmitter, (for example, the WP-20 or TP-580Txr).
Connect to the HDMI acceptor.
to download the latest user manual and check if
1 Set of rack ears
P/N:
2 9 0 0 - 3 0 0 8 7 8 QS
Rev:
2
