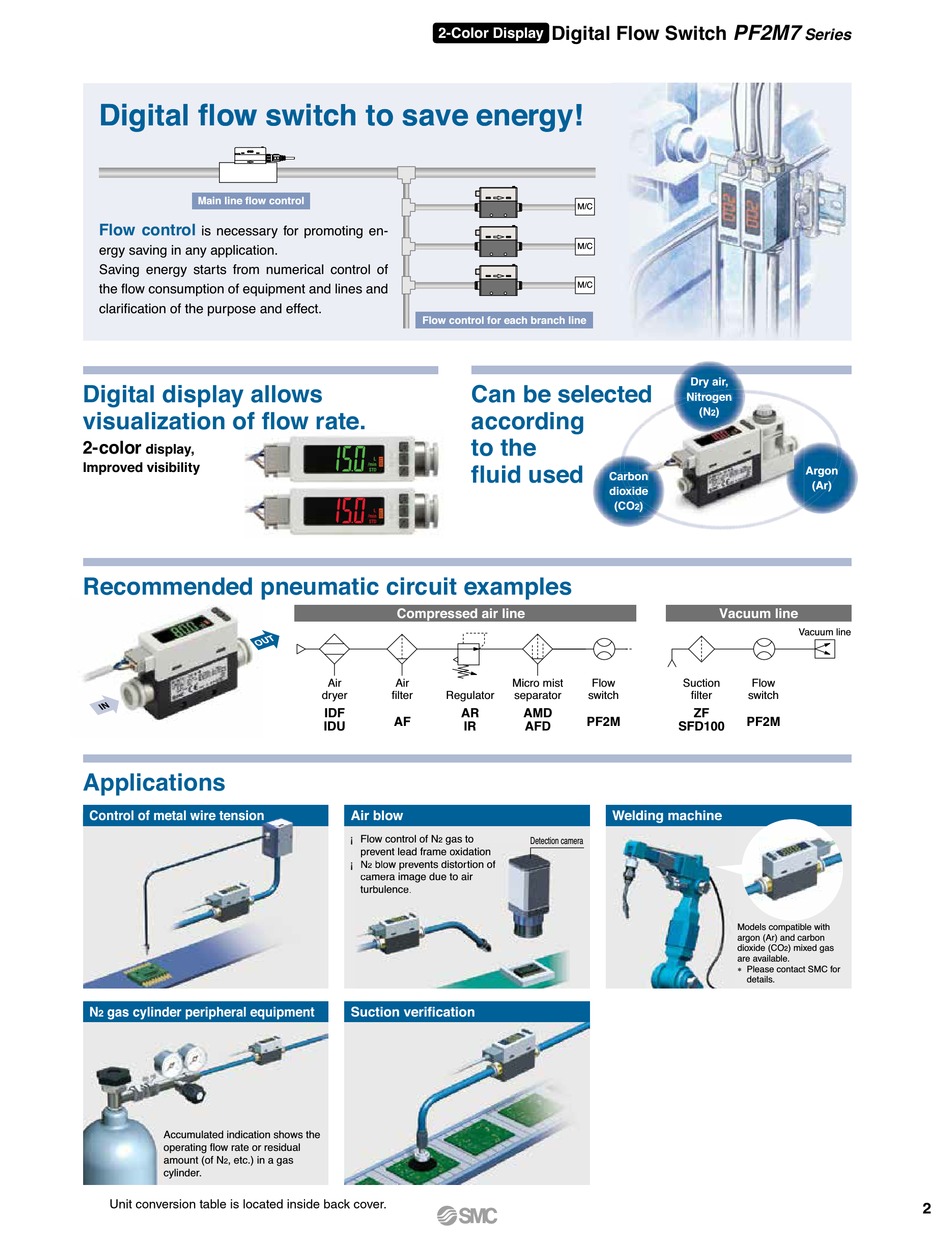

Digital flow switch to save energy! Digital flow switch to save energy!
Main line flow control
Flow control
is necessary for promoting en-
ergy saving in any application.
Saving energy starts from numerical control of
the flow consumption of equipment and lines and
clarification of the purpose and effect.
Digital display allows
visualization of flow rate.
2-color
display,
Improved visibility
Recommended pneumatic circuit examples p
Applications
Control of metal wire tension Control of metal wire tension
N gas cylinder peripheral equipment
2
Accumulated indication shows the
operating flow rate or residual
amount (of N , etc.) in a gas
2
cylinder.
Unit conversion table is located inside back cover.
2-Color Display
Flow control for each branch line
Can be selected
according
to the
fluid used
Compressed air line
Air Air
dryer filter Regulator
IDF AR
AF
IDU IR
Air blow
¡ Flow control of N gas to g
2
prevent lead frame oxidation prevent lead frame oxidation
¡ N N blow prevents distortion of blow prevents distortion of
2 2
camera image due to air camera image due to air
turbulence. turbulence.
Suction verification
Digital Flow Switch
M/C
M/C
M/C
Dry air,
d
Nit Nitrogen Nitrogen
Carbon on
dioxide de
(CO ) ) )
2 2
Micro mist Flow Suction
separator switch filter
AMD
PF2M
AFD SFD100
Welding machine Welding machine
Detection camera
PF2M7
Series
(N (N ) )
2 2
Argon
(Ar)
Vacuum line
Vacuum line
Flow
switch
ZF
PF2M
Models compatible with
argon (Ar) and carbon
dioxide (CO ) mixed gas
2
are available.
∗ Please contact SMC for
details.
2
