PF2M7

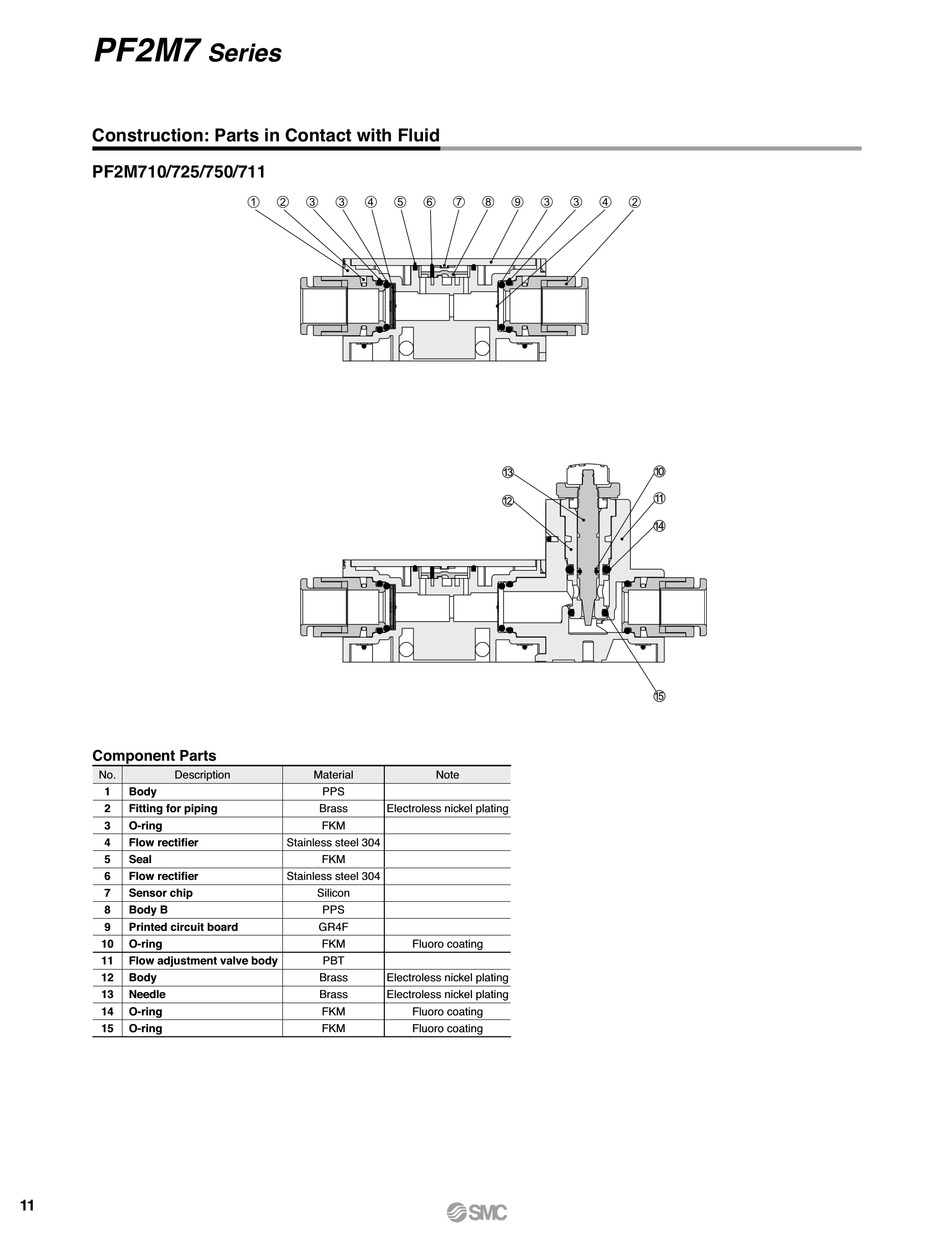

Construction: Parts in Contact with Fluid
PF2M710/725/750/711
Component Parts
No. Description
1 Body
2 Fitting for piping
3 O-ring
4 Flow rectifier
5 Seal
6 Flow rectifier
7 Sensor chip
8 Body B
9 Printed circuit board
10 O-ring
11 Flow adjustment valve body
12 Body
13 Needle
14 O-ring
15 O-ring
11
Series
Œ  Ž Ž   ‘ ’ “ ” Ž Ž  
Material
PPS
Brass Electroless nickel plating
FKM
Stainless steel 304
FKM
Stainless steel 304
Silicon
PPS
GR4F
FKM
PBT
Brass Electroless nickel plating
Brass Electroless nickel plating
FKM
FKM
Note
Fluoro coating
Fluoro coating
