Installation
4.2

Connector

The 18-pin connector is common for several models of the Anybus Wireless Bolt.
Some pins may have a different function depending on model. Unused pins
should not be connected.

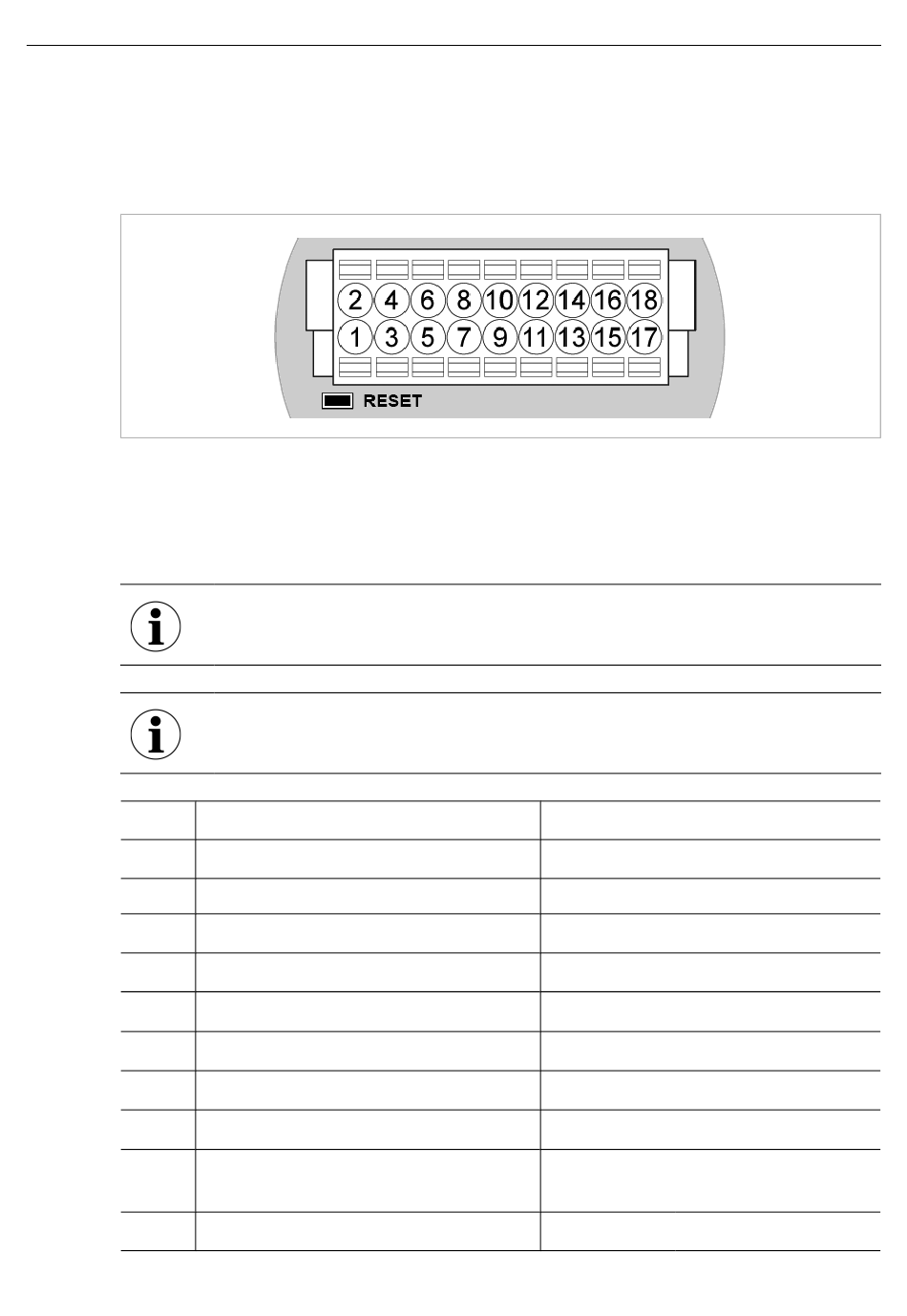

Fig. 1
The location of the RESET button can be used as a reference for the pin
numbering when the connector is attached to the Wireless Bolt Serial. Pin 1 will
be the pin closest to the button.
Pin
1
2
3
4
5
6
7
8
9
10
®
Anybus Wireless Bolt
Connector
The Ethernet interface is intended for configuration purposes only. Wireless Bolt
Serial is not designed for permanent Ethernet communication.
A and B marking differs between different devices, in this product A is TX+/RX+
or D+ and B is TX-/RX- or D-.
Name
VIN
GND
DI
DI_GND
ETN_RD+
ETN_RD-
ETN_TD-
ETN_TD+
RS485_B
FE/Shield
™
Serial Startup Guide
Description
Power + (9–30 V)
Power Ground
Digital input + (9–30 V)
Digital input ground
Ethernet receive + (white/orange)
Ethernet receive - (orange)
Ethernet transmit - (green)
Ethernet transmit + (white/green)
RS-485 B
Line
Ethernet: Functional Earth
SP2554 1.12 en-US
7 (24)
