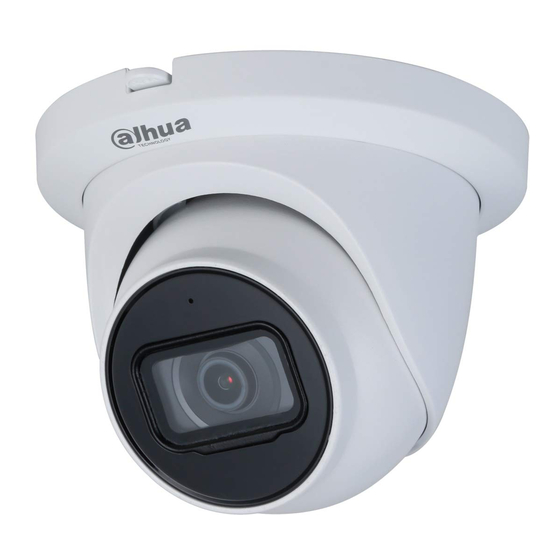

- Page 1 Eyeball Network Camera Quick Start Guide ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD. V1.0.2...
-
Page 2: Foreword
Quick Start Guide Foreword General This manual introduces the functions, installation, and operations of the camera. Safety Instructions The following categorized signal words with defined meaning might appear in the manual. Signal Words Meaning Indicates a medium or low potential hazard which, if not avoided, could result in slight or moderate injury. - Page 3 Quick Start Guide All the designs and software are subject to change without prior written notice. The product updates might cause some differences between the actual product and the manual. Please contact the customer service for the latest program and supplementary documentation. There still might be deviation in technical data, functions and operations description, or errors ...
-
Page 4: Important Safeguards And Warnings
Quick Start Guide Important Safeguards and Warnings Electrical Safety All installation and operation should conform to your local electrical safety codes. The power supply must conform to the requirements of ES1 in IEC 62368-1 standard and be no higher than PS2. - Page 5 Quick Start Guide Do not touch the image sensor (CMOS) directly. Dust and dirt could be removed with air blower, or you can wipe the lens gently with soft cloth that is moistened with alcohol. You can clean the device body with soft dry cloth, and for stubborn stains, use the cloth with ...
-
Page 6: Table Of Contents
Quick Start Guide Table of Contents Foreword ................................I Important Safeguards and Warnings ......................III 1 Introduction ..............................1 2 Network Configuration ..........................2 Initializing Device ..................................2 Changing Device IP Address ..............................4 Logging in to Web Page ................................5 3 Installation .............................. -
Page 7: Introduction
Quick Start Guide Introduction Waterproof all the cable joints with insulating tape and waterproof tape to avoid short circuit and water damage. For the detailed operation, see FAQ manual. Figure 1-1 Cables Table 1-1 Cable information Port Name Description Connects to network with network cable. ... -
Page 8: Network Configuration
Quick Start Guide Network Configuration Device initialization and IP address setting can be finished with the ConfigTool or in web page. For more information, see web operation manual. Device initialization is available on select models, and it is required at first use or after the device ... - Page 9 Quick Start Guide Enter the username and the password when you want to change IP, configure the system, update the device, restart the device, and more. Click OK. Step 5 Select one or several devices in uninitialized status, and then click Initialize. Step 6 Select the devices to be initialized, and then click Initialize.
-
Page 10: Changing Device Ip Address
Quick Start Guide Figure 2-3 Device initialization Select Easy4ip or select Auto-check for updates according to the actual needs. If neither, Step 9 leave them unselected. Click OK to initialize the device. Step 10 Click the success icon ( ) or the failure icon ( ) for the details. -
Page 11: Logging In To Web Page
Quick Start Guide Figure 2-4 Change IP Address Select Static mode, and then enter start IP, subnet mask, and gateway. Step 3 IP addresses of multiple devices will be set to the same if you select the Same IP checkbox. -
Page 12: Installation
Quick Start Guide Installation Packing List The tool required for the installation such as electric drill is not provided in the package The operation manual and related tool information are contained in the disk or the QR code. Figure 3-1 Packing list Dimensions... -
Page 13: Installing Device
Quick Start Guide Installing Device 3.3.1 Installation Direction Figure 3-3 Installation direction 3.3.2 Installation Method Figure 3-4 Installation method... -
Page 14: Detaching The Device
Quick Start Guide 3.3.3 Detaching the Device Figure 3-5 Detach the device 3.3.4 Installing SD Card (Optional) Pull the power plug off before installing or removing the SD card. Press and hold the RESET button for 10 s to reset the camera. ... - Page 15 Quick Start Guide Figure 3-7 Cable going through the mounting surface Figure 3-8 Cable going through the side cable tray...
-
Page 16: Installing Waterproof Connector (Optional)
Quick Start Guide 3.3.6 Installing Waterproof Connector (Optional) This part is needed only when there is waterproof connector in the package and the device is used outdoors. Figure 3-9 Install waterproof connector 3.3.7 Adjusting Lens Angle Figure 3-10 Adjust lens angle... - Page 17 Quick Start Guide...
