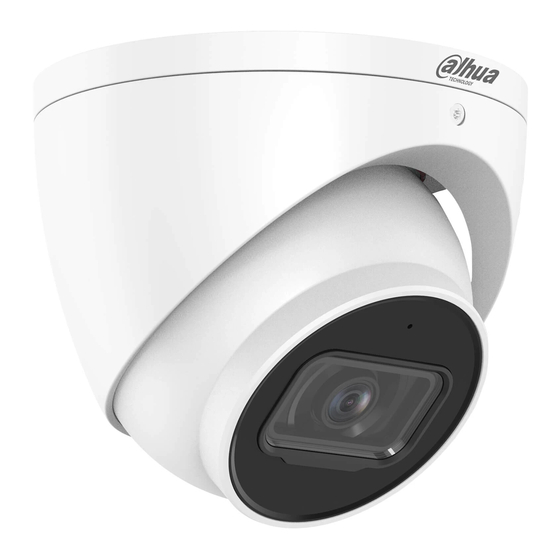

- Page 1 Eyeball Network Camera Quick Start Guide ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD. V1.0.4...
-
Page 2: Foreword
Quick Start Guide Foreword General This manual introduces the functions, installation and operations of the camera. Safety Instructions The following categorized signal words with defined meaning might appear in the manual. Signal Words Meaning Indicates a medium or low potential hazard which, if not avoided, WARNING could result in slight or moderate injury. - Page 3 Quick Start Guide our official website. The manual is for reference only. Slight differences might be found between the electronic version and the paper version. All the designs and software are subject to change without prior written notice. The product ...
-
Page 4: Important Safeguards And Warnings
Quick Start Guide Important Safeguards and Warnings Electrical Safety All installation and operation should conform to your local electrical safety codes. The power supply must conform to the requirements of ES1 in IEC 62368-1 standard and be no higher than PS2. - Page 5 Quick Start Guide Do not touch the image sensor (CMOS) directly. Dust and dirt could be removed with air blower, or you can wipe the lens gently with soft cloth that is moistened with alcohol. You can clean the device body with soft dry cloth, and for stubborn stains, use the cloth with mild ...
-
Page 6: Table Of Contents
Quick Start Guide Table of Contents Foreword ................................I Important Safeguards and Warnings ......................III 1 Introduction ..............................1 2 Network Configuration ..........................2 Initializing Device ..................................2 Changing Device IP Address ..............................4 Logging in to Web Page ................................5 3 Installation .............................. -
Page 7: Introduction
Quick Start Guide Introduction Waterproof all the cable joints with insulating tape and waterproof tape to avoid short circuit and water damage. For the detailed operation, see FAQ manual. Cables Table 1-1 Cable information Port Name Function Connects to network with network cable. Provides power to the device with PoE. -
Page 8: Network Configuration
Quick Start Guide Network Configuration Device initialization and IP address setting can be finished with the ConfigTool or on web page. For more information, see web operation manual. Device initialization is available on select models, and it is required at first use or after the device ... - Page 9 Quick Start Guide Enter the username and the password when you want to change IP, configure the system, update the device, restart the device, and more. Click OK. Select one or several devices in uninitialized status, and then click Initialize. Select the devices to be initialized, and then click Initialize.
-
Page 10: Changing Device Ip Address
Quick Start Guide Device initialization Select Easy4ip or select Auto-check for updates according to the actual needs. If neither, leave them unselected. Click OK to initialize the device. Click the success icon ( ) or the failure icon ( ) for the details. Click Finish. -
Page 11: Logging In To Web Page
Quick Start Guide Change IP Address Select Static mode, and then enter start IP, subnet mask, and gateway. IP addresses of multiple devices will be set to the same if you select the Same IP checkbox. If DHCP server is available in the network, devices will automatically obtain IP addresses ... -
Page 12: Installation
Quick Start Guide Installation Packing List The tool required for the installation such as electric drill is not provided in the package. The operation manual and related tool information are contained in the disk or the QR code. Packing list... -
Page 13: Dimensions
Quick Start Guide Dimensions Dimensions (mm [inch]) -
Page 14: Installing Device
Quick Start Guide Installing Device 3.3.1 Installation Method Installation method 3.3.2 Detaching the Enclosure Detach the enclosure 3.3.3 Installing SD Card (Optional) Pull the power plug off before installing or removing the SD card. Press and hold the RESET button for 10 s to reset the camera. ... -
Page 15: Attaching Device
Quick Start Guide Install SD card (1) Install SD card (2) 3.3.4 Attaching Device Make sure the mounting surface is strong enough to hold at least three times of the weight of the device and bracket. -
Page 16: Installing Waterproof Connector (Optional)
Quick Start Guide Cable going through the mounting surface Cable going through the side cable tray 3.3.5 Installing Waterproof Connector (Optional) This part is needed when there is waterproof connector in the package and the device is used outdoors. -
Page 17: Adjusting Lens Angle
Quick Start Guide Install waterproof connector 3.3.6 Adjusting Lens Angle Adjust lens angle... - Page 18 Quick Start Guide...
