Following situations can bring pause during auto cutting
A) external pause of input port is valid
B) for plasma cutting, choose "arc voltage check" in PARAMETER to cause pause when arc
breaks.
C) Choose 'torch collision check' in PARAMETER, and controller's input port has signal,
it will pause
After pause, there are some options as below,
[0] Forward: idle run to continue
[1] Back (backward): idle run backward along previous track
This option is usually used for arc break and flame break, near the break point, choose
proper position to pierce and cut again, speed forward and backward is set in SPEED
interface.
[2] HolePoin (pierce point): input the pierce number, you can choose "ToThePoint/Local
Run". "ToThePoint" is move to the pierce point from current position; It's for giving
up current section, restart from the specified pierce point. "Local Run" is to make torch
position as pierce point. It's for changing new plate, continue to cut from selected pierce
point.
[3] SpeedSet: set speed parameters (IdleSped (speed of idle running (no load), CutSpeed
(running speed), ManSpeed (speed of manual operation), BackSped (speed of backward
operation))
[4] Zoom In: zoom in the figure
[5] Zoom Out: zoom out the figure
[6] Idle Run: analog cutting at idle run speed. There is no output control. Speed adjustment,
torch lifting and other operation are valid. External input is valid (emergent stop, limit
position, etc.)
[7] ContMove (move continuously): move continuously after press direction buttons, press
reverse direction button or Pause button to stop
[8] BackRefe (backference): back to workpiece reference point
[F1]: Exit: controller automatically records a break point, and continue to cut by the option
of "find break point"
Note: after moving torch, press [Start] again, the controller will tip (Back/Cut Back/Continue)
to choose different cutting mode. This function is for changing nozzles, temporary edge
pierce, transfer cutting and other special situations.

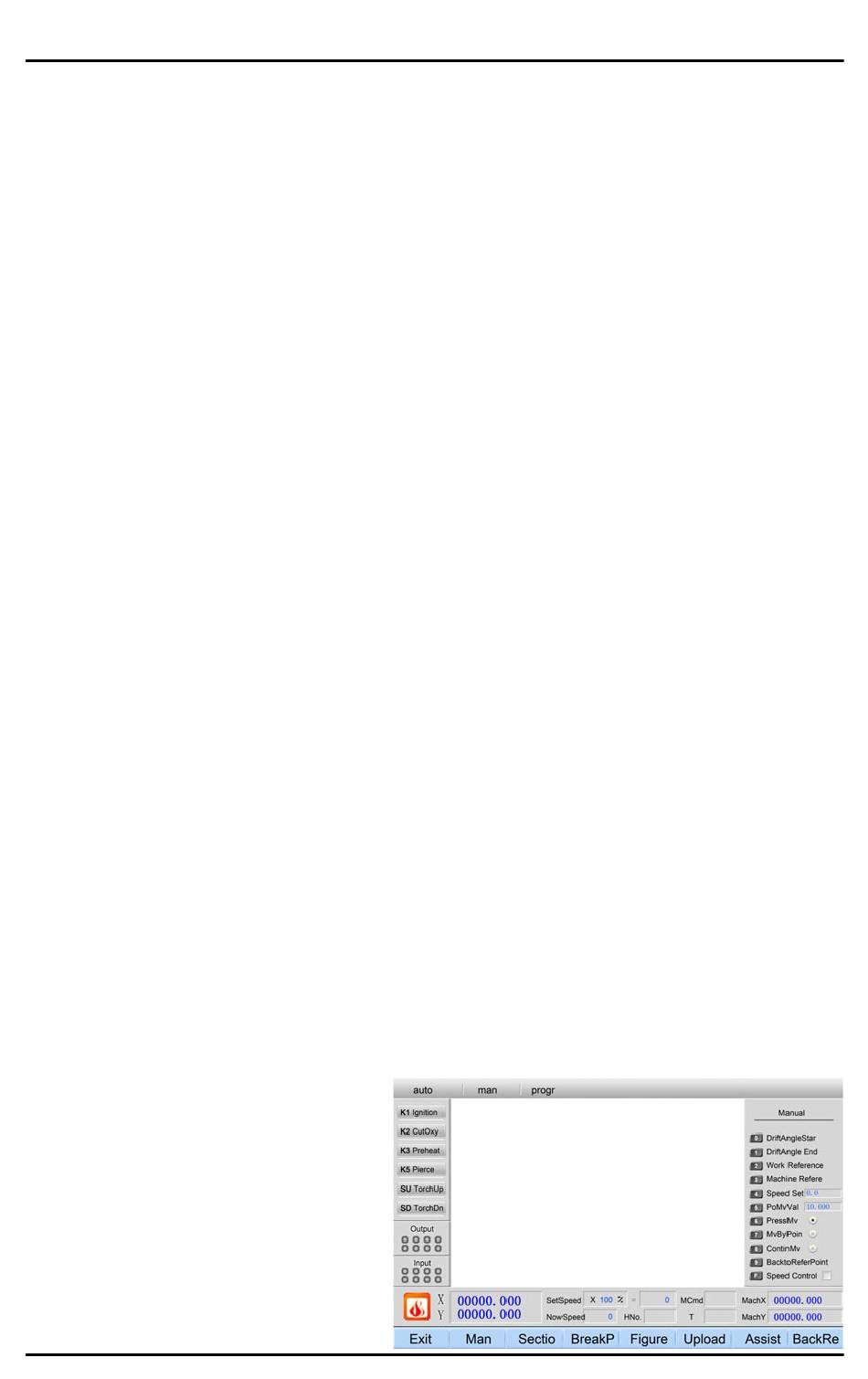

2.2 Enter Man (manual) interface

2.2.1 [0] DriftAngleStar (drift angle start
point)/[1] DriftAngle End (drift angle
end point): start point and end point of
steel plate calibration (choose a longer
side of steel plate), press [0] to set start
point, move torch to another point,
press [1] to automatically calculate
steel plate calibration angle, and
automatically rotate figure.
