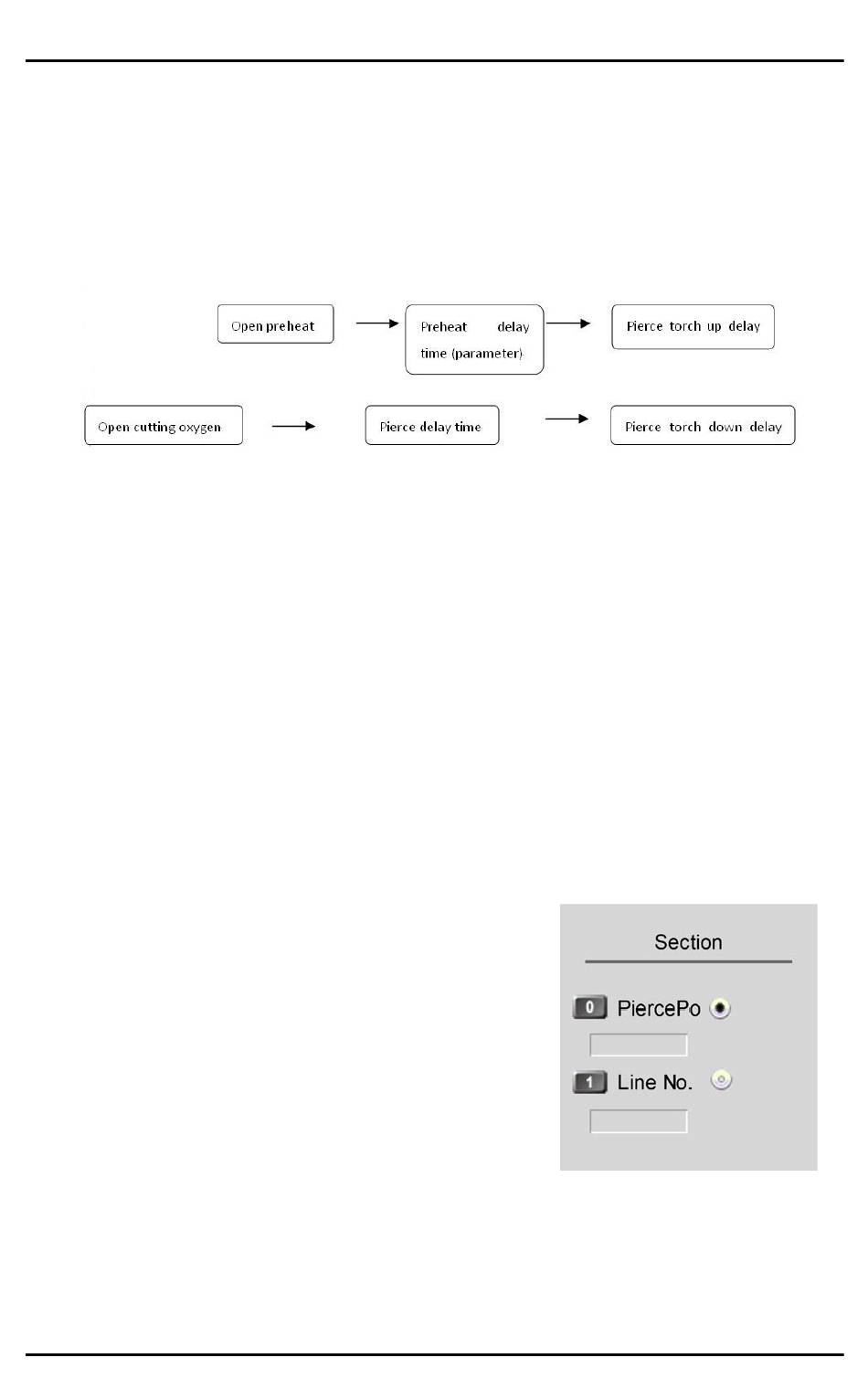

If preheat time is not enough, press [Pause] before preheat delay time is over, delay time
will increase. If preheat is ok, press [Start] to over preheat delay time, and automatically
save the preheat time as parameter.
Note: please check torch height before pierce, after the initial height should meet the
demand of torch down delay time, the height is preheat height.
If preheat delay time open
press [Start] and [Pause] to change preheat delay time
After successful pierce, manual cutting is available (press direction buttons to start)
[Del] total off: close all outputs.
Torch up and down
Plasma
[K2] strike arc: open arc-strike output
[K5] pierce: run a complete pierce movement (M07), firstly torch down (torch down delay
time), then stop, open arc-strike output, torch height controller gets auto signal after pierce
delay time.
If choose pierce location valid, the torch will move down till receiving torch location switch
signal, then stop moving down, then moves up according to location delay time, then stop
and open arc-strike output, continue next movement.
If choose arc-strike signal check, then after opening arc-strike output, wait for arc-strike
successful input signal, after receiving signal, continue next movement.
2.3 Enter Section interface
2.3.1 [0] PiercePo (pierce point): cut according to pierce
number, and it tips the most number of pierce point, input
pierce number and press [Enter] to confirm.
There are two options, "move to the point" and "locally
cut".
"move to the point" is torch moves the selected pierce
point at G00 speed
"locally cut" is make current point as selected pierce
point, press [Start] to continue cutting.
2.3.2 [1] Line No. (line number of program): cut according to the line number of program,
and it tips max. line number, input program line number, press [Enter] to confirm.
There are two options, "move to the point" and "locally cut".
"move to the point" is torch moves the selected pierce point at G00 speed
"locally cut" is make current point as selected pierce point, press [Start] to continue
cutting.
