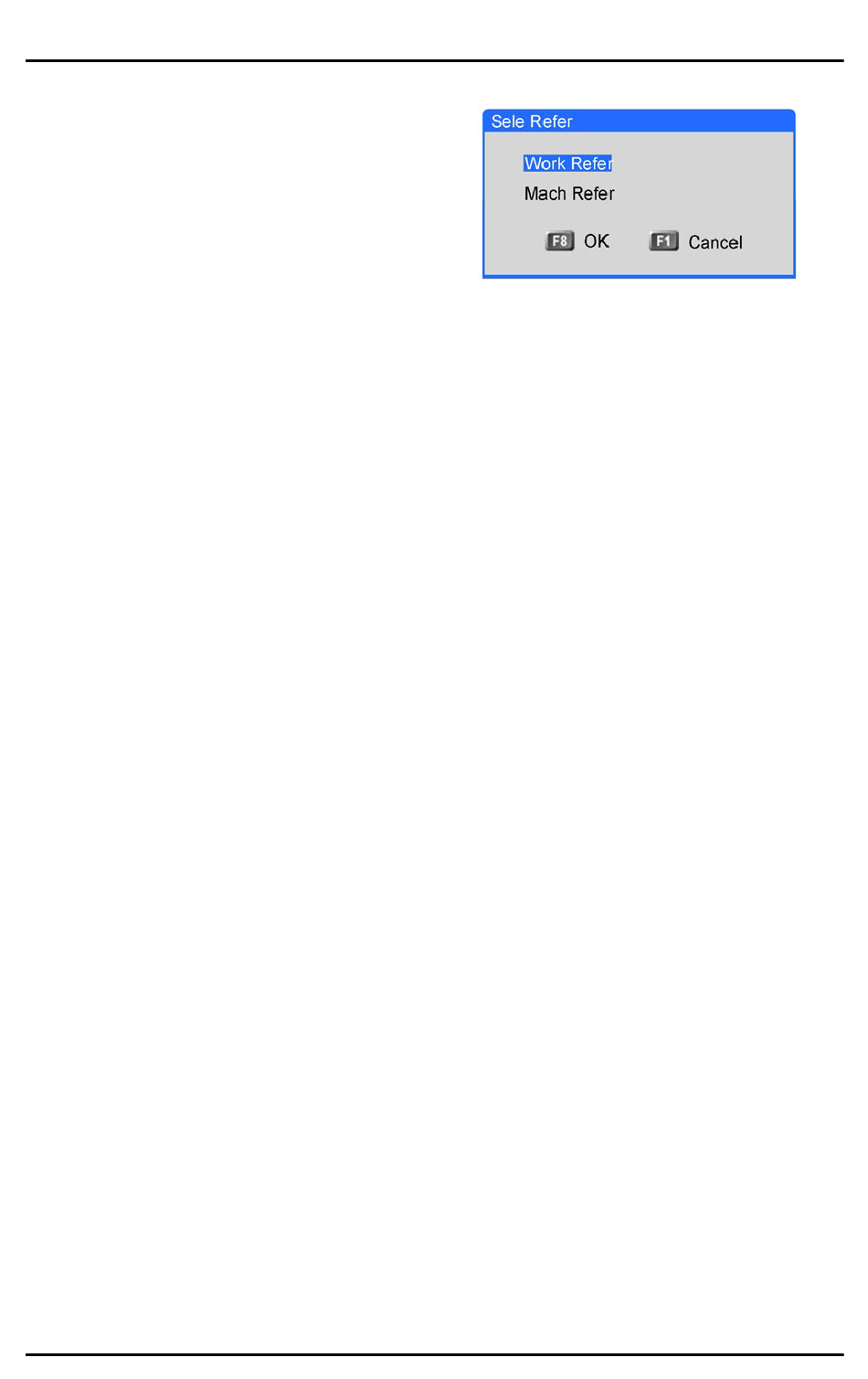

2.8 Enter BackRe (back to reference) interface
2.8.1 [Work Refer] (workpiece reference
point): torch back to workpiece reference
point.
2.8.2 [Mach Refer] (machine reference
point): torch back to machine reference
pont.
3.1 speed mode (multiplying power) and start of auto cutting
3.1.1 cutting speed
When cut, it's cutting limit speed*cutting multiplying power, auto multiplying power can
be adjusted by F+/F-, or press [0] to set speed, or press [F] and number keys of 0 ~ 9 to
adjust multiplying power from 10% to 100%. When no cut, above 3 methods are still valid
to adjust cutting speed
3.1.2 manual speed
When no cut, move the torch manually, manual limit speed*manual multiplying power, to
adjust manual multiplying power, the method is the same as auto multiplying power.
3.1.3 back speed
When pause to be backward or forward, it's cutting speed*back multiplying power, back
multiplying power is finished during backward and forward, by F+/F-.
3.1.4 start of auto cutting
1) before program starts
Choose proper cutting program, cutting speed (multiplying power), kerf width, rotation
angle and scale (don't set if no need), then move the torch to the cutting position (after
program starts, the torch will automatically move up (M70)) and others, then start auto
cutting program.
2) two methods to start auto cutting
a) press green [Start] key
b) press [K5] key, automatically cut after pierce
3.2 control and cutting position adjustment of auto cutting
3.2.1 after auto cutting starts, following key operations are valid
1) [Pause]: when flame preheat delay time, press [Pause] to increase delay time of 100s,
and to stop cutting, close cutting oxygen (plasma: close arc strike switch), close torch
height controller (M39). You can operate following after [Pause]: (1) backward/forward
along previous track, (2) adjust torch position, (3) exit
2) [Start]: when flame preheat delay time to press [Start], can skip preheat delay time and
record the time, also can skip torch up/down delay time, but don't record delay time
3) [F+], [F-] speed adjustment keys: increase or decrease speed multiplying power
4) [S↑], [S↓] control torch up/down
5) [F] and [0-9] adjust speed multiplying power from 10% to 100%
6) [Emergent stop]: it's an external key, when emergent stop is valid, all movement stop
and close output for emergent situation
