2.2.2 [2] Work Reference (workpiece reference point): make the current coordinate as
reference point of parameters.
2.2.3 [3] Machine Refere (machine reference point): make current machine position as
machine zero point, and machine
coordinate clears zero.
2.2.4 [4] Speed Set: set manual speed, press [ENTER] to confirm and input values.
2.2.5 [5] PoMvVal (increment value of point movement): set the increment value of point
movement, press [Enter] to confirm and save, at the same time you must choose [7]
MvByPoin (point movement), it's the mode of point movement.
2.2.6 [6] PressMv (move after press)/[MvByPoin] (point movement)/[8] ContinMv (move
continuously): [6] is to run motors when press X/Y direction buttons, vise versa; [7] is to
run the value of [5] when press X/Y direction buttons one time (value of [5] has the same
unit of coordinate value); [8] is to run motors when press X/Y direction buttons one time, if
press the reverse direction button of the same axis, motor stops; if press another axis, two
axis linkage; if stop one axis, press the reverse direction button of its moving direction; red
Pause button stops all movement, (pause during point movement, restart point movement,
increment value is still valid).
2.27 [BacktoReferPoint] (back to reference point): processing start point, not cutting start
point
2.28 [F] multiplying power adjustment: during cutting, press F, and then press any number
of 1 to 9 to adjust relative multiplying power. For example, press F and 1, current speed
becomes 10%, press F and 0, speed multiplying power is 100%.
Strong electricity in manual mode
Flame
Gas and preheat oxygen usually have two kinds of connection, 1 is single connection, gas
connects OH1, preheat oxygen connects OH7. One is common connection, both connect
OH1.
[K1] Ignition: ignite gas, turn on the torch, and turn off it after ignition delay time is over. If
gas (preheat oxygen) doesn't open, then firstly open gas, press Preheat or K4 (total shut)
close gas (preheat oxygen), if ignition fails, reopen.
[K2] Cutting: cutting oxygen, open cutting oxygen, press again to close
[K3] Preheat: open gas (OH1), press again to close. Usually a relay connects gas and preheat
oxygen solenoid valve.

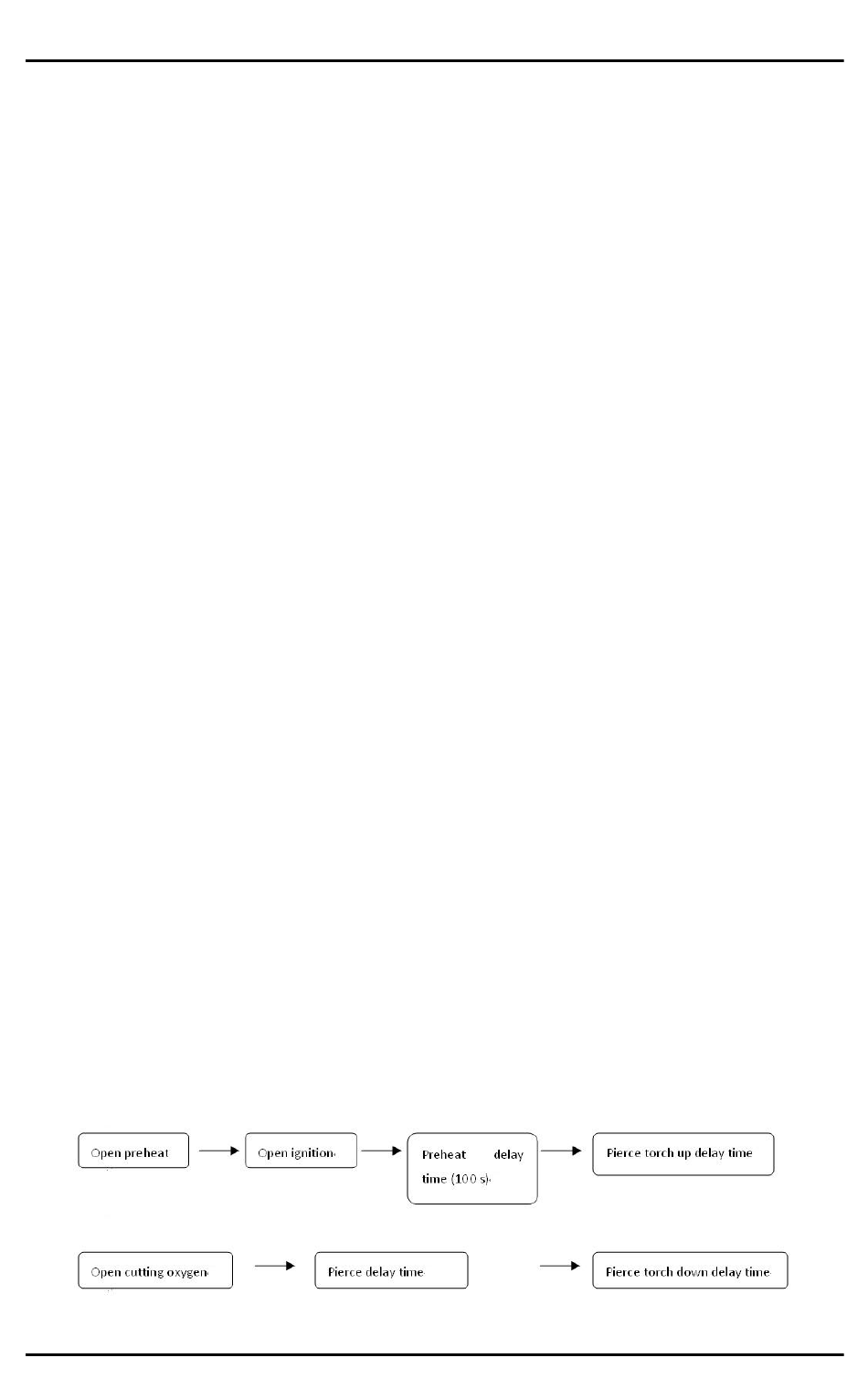

[K5] Pierce: without manually opening preheat in advance, controller will run a complete
pierce movement.
