2.6 Enter Upload interface

[DelDir] and other grey options, finish in Edit, Manage interface.before pull out U disk, change
to LoDisk (local disk) state.

2.7 Enter Assist interface

2.7.1 [0] Clear Length: clear total cutting length to zero. (the function is
coming soon)
2.7.2 [1] Clear Time: clear total cutting time to zero. (the function is
coming soon)
2.7.3 [Nest]: nest uploaded figure in grid way
[1] Line: the number of line, minimum is 1, press [Enter] to confirm.
[2] Column: the number of column, minimum is 1, press [Enter] to
confirm.
[3] LSpace (space of lines): controller automatically shows the distance
of lines, you can change.
[4] CSpace (space of columns): controller automatically shows the distance of lines, you can
change.
[5] Lcross (line cross): even line deviate right for odd line, default is 0.
[6] MaxWid (max. width): it works with [Lcross] (line cross), the number of parts is valid in
the width range of odd line. If the value of Lcross (line cross) is 0, this option is invalid.
[7] Submit: confirm above operations to form new figure, you can save it from Edit interface.
2.7.4 [3] Run Outline: start with program cutting point, move to workpiece reference point,
run around the outline to check whether cutting track is beyond the steel plate.
2.7.5 [4] Wentai: wentai is a kind of software for characters, used in advertisements.
2.7.6 [5] Clear coordi (clear coordinate): rapidly clear current coordinate.
2.7.7 [6] Reset: back to mechanical original point; when reset direction is 0, only clear current
machine coordinate, don't move machine; when reset direction is 1, machine moves along
machine coordinate positive direction, touch zero point switch of controller external input,
slow down to 0, machine touch zero point again along reverse direction, machine stop;
when reset direction is -1, machine moves along machine coordinate reverse direction,
touch zero point switch of controller external input, slow down to 0, machine touch zero
point switch along machine reverse direction, machine stop. The function requires the
machine to install original point switch.
2.7.8 [7] InitialCutPon: back to initial cutting point；
2.7.9 [8] Set X/Y: set current workpiece coordinate X/Y
page: 10
Microstep Website http://www.microstep.cc/eng
Beijing Flourishing Start Digital Technology Co., Ltd

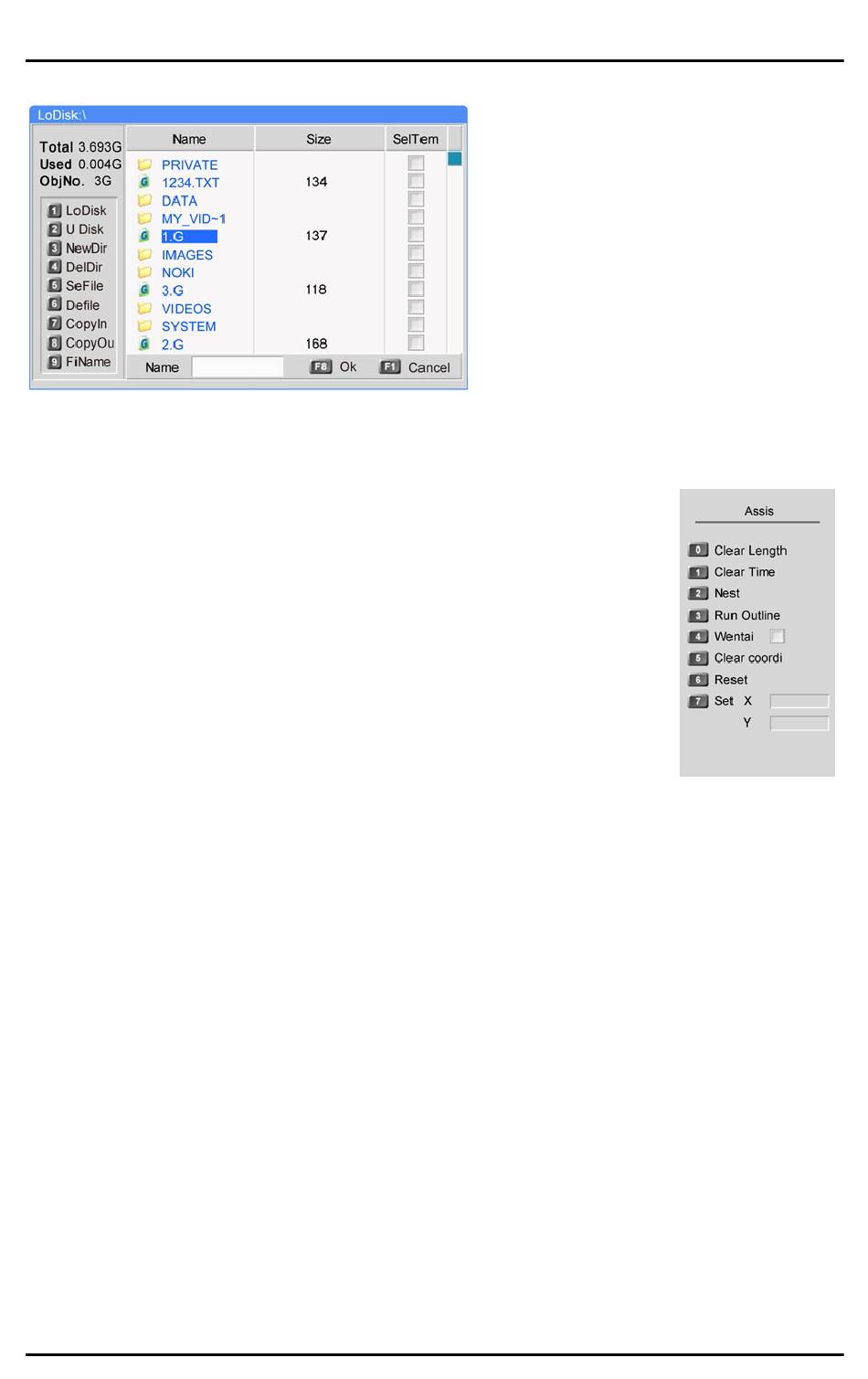

[1] LoDisk (local disk): upload program
from controller's inside disk;
[2] U Disk: upload program from U disk,
press [↑], [↓] or [PaUP], [PaDo] to choose
files, press [→] to enter files, press [←]
to exit files, press F8 or [Enter] to upload
program and ready to cut, press F1 to
cancel.
Note: 1. this interface is only for cutting
files upload, if operating [DewDir],
