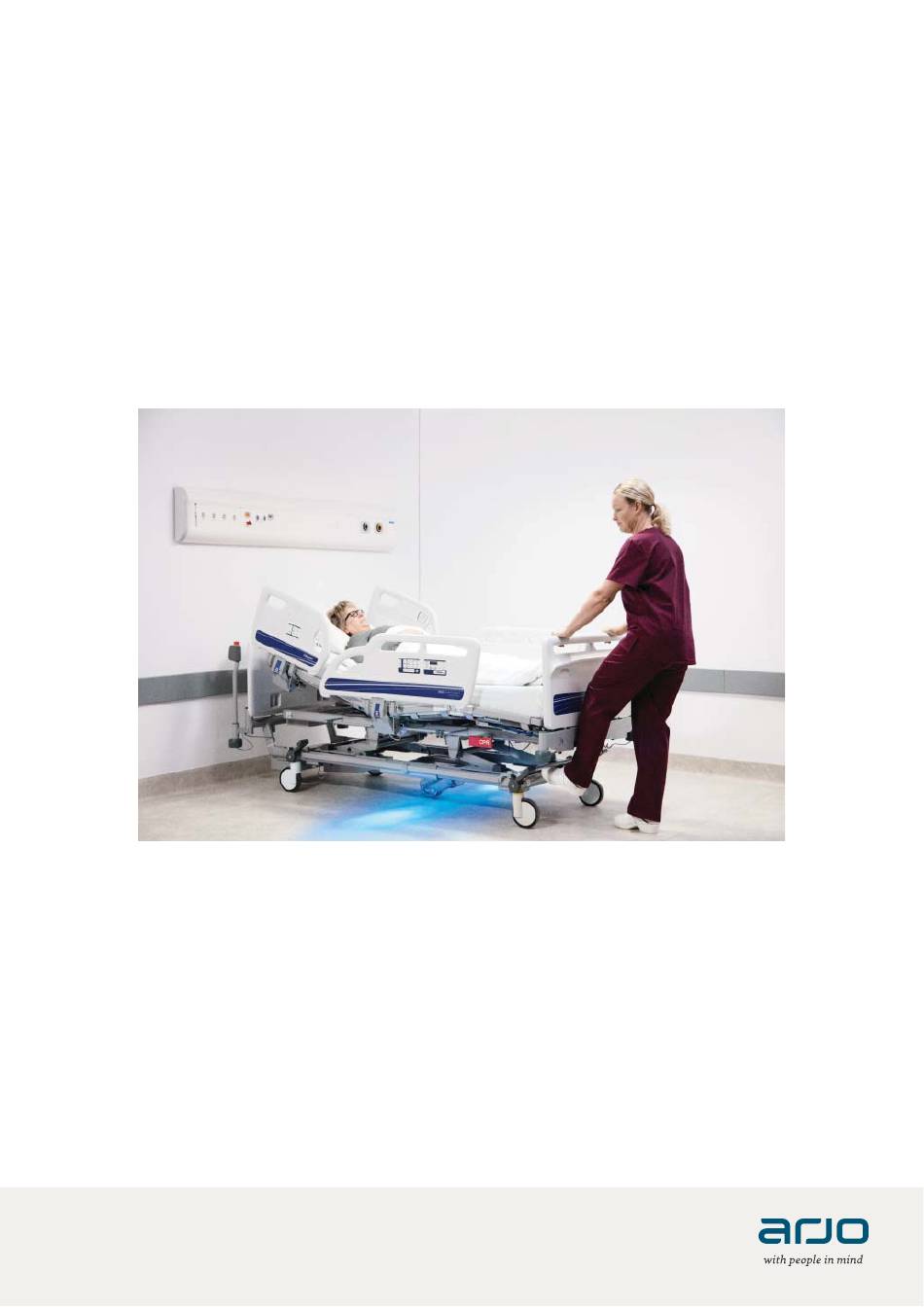

- Page 1 INSTRUCTIONS FOR USE IndiGo Intuitive Drive Assist 416260-EN Rev C · 04/2018...
- Page 2 © Arjo 2018. As our policy is one of continuous improvement, we reserve the right to modify designs without prior notice. The content of this publication may not be copied either whole or in part without the consent of Arjo.
-
Page 4: Table Of Contents
TABLE OF CONTENTS Foreword ............................5 Support ............................5 Defi nitions in this IFU ....................... 5 Safety Instructions ........................5 Introduction ..........................6 Product Overview........................6 Intended use for IndiGo Drive Assist ..................6 Before Using IndiGo ........................7 Using IndiGo ..........................7 IndiGo Activation / Deactivation and Brakes ................ -
Page 5: Foreword
Arjo equipment can affect safety. To minimize the risk of serious injury, Arjo will not be held responsible for any accidents, carefully read and follow all safety incidents or lack of performance that occur as a... -
Page 6: Introduction
INTRODUCTION These instructions contain information about IndiGo on Arjo beds. IndiGo works as an Intuitive drive assist when moving beds. IndiGo must be used by appropriately trained caregivers or porters with adequate product knowledge. Product Overview Fig. 1 1. Cover 2. -
Page 7: Before Using Indigo
BEFORE USING IndiGo IndiGo has the same safe working load as the bed to which it is fi tted. 1. Identify that the bed is equipped with IndiGo by locating the IndiGo emergency stop switch, the IndiGo cover and/or the IndiGo wheel. 2. -
Page 8: Emergency Stop Switch
EMERGENCY STOP SWITCH The IndiGo Intuitive Drive Assist comes equipped with Emergency Stop Switches located at both the foot and head ends of the bed. The emergency stop switch provides a gradual, slow stop rather than an immediate hard stop. When the emergency stop switch is activated, an electric brake is applied to reduce momentum and slow the bed down until stopped. -
Page 9: Move The Bed
Reset Emergency Stop Switch 1. Twist the emergency stop switch clockwise. Fig. 7 2. The switch will pop up and is now reset. Fig. 8 To reset the drive wheel: 1. Cycle the brake pedal down to the free position and then back up to the activated position. - Page 10 Maneuverability IndiGo replaces the bed's ordinary steer lock function with a drive wheel centered under the bed, which improves the maneuverability and control. The drive wheel effectively minimizes the space needed when taking corners or full 360° turns. See Fig. 12 and 13 Fig.
-
Page 11: Sleep Mode
To fully bene t from IndiGo: Keep a constant pressure while moving on at surfaces and up slopes. Pull gently to decelerate and lean backwards to stop (brake assistance). See Fig. 16 Control speed by a light constant pull while moving down slopes (brake assistance). -
Page 12: Light Indications
Light Indications Light Battery ACTION Action Status Full Battery During normal use, the battery will last for approximately 5000 m (3.10 miles) Low Battery (1 ash / 1.6 seconds) During normal use, the battery will last for approximately 900 m (0.56 20 % left Charge miles). -
Page 13: Cleaning And Disinfection
Check the emergency stop assemblies for signs of damage Check that applicable IndiGo labeling is present and legible If the result of any of these tests is unsatisfactory, do not use IndiGo. Contact Arjo or an Arjo-approved service agent. The procedure below must be carried out by suitably trained and qualifi ed personnel. -
Page 14: Troubleshooting
Failure / Error unanticipated way corrections as necessary. Deactivate IndiGo by placing pedal in brake position. Contact an Arjo approved service agent. Low battery Complete patient transport / moving the bed and connect power cord to wall outlet. Critical Low Battery... - Page 15 IndiGo. Failure / Error Complete patient transport / moving the bed or brake by placing pedal in brake position. Contact an Arjo approved service agent. Review LED error codes and implement corrections as necessary. No Blue Light Con rm charger status LED.
-
Page 16: Specifications
SPECIFICATIONS Li-Ion battery 25.2V Nominal Voltage, 4.3 Amp Capacity Battery Charge Time From Empty: ~4 hours Full battery achievable distance 5000m (3.10 miles) Low battery achievable distance 900m (0.56 miles) Critical battery time remaining 20 seconds Maximum speed for full assistance 5km/h (3mph) IndiGo Drive Wheel Non-marking... -
Page 17: Explanation Of Symbols Used
EXPLANATION OF SYMBOLS USED Transport and Storage Warning of possible hazard to system, patient or staff Humidity High and Low Limits Transport and Storage Caution Pressure High and Low Limits Important Operational Information Reference Number Date of Manufacturer Classi cation of degrees of IPXX protection provided by enclosures. -
Page 18: Fcc Compliance Statement
FCC COMPLIANCE STATEMENT: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation. -
Page 19: Electrical Magnetic Compatibility Information
ELECTRICAL MAGNETIC COMPATIBILITY INFORMATION The use of non-approved accessories may result in increased emissions or reduced immunity of the equipment. A list of approved accessories is included in the product Instructions for Use. When this equipment is used adjacent to other electronic devices, the user should observe the equipment to verify normal operation. - Page 20 Guidance and manufacturer’s declaration – electromagnetic emissions 70% of input voltage for 70% U 500ms (30% dip in U T ) for 25 cycles Mains power quality should be that of a 40% of input 40% U T typical commercial or hospital environment. Voltage dips, short voltage for (60% dip in U T )
- Page 21 Guidance and manufacturer’s declaration – electromagnetic immunity Field strengths from xed transmitters, such as base stations for radio (cellular / cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to xed RF transmitters, an electromagnetic site survey should be considered.
-
Page 23: Customer Contact Information
CUSTOMER CONTACT INFORMATION AUSTRALIA FRANCE POLSKA Arjo Australia Pty Ltd Arjo SAS Arjo Polska Sp. z o.o. 78, Forsyth Street 2 Avenue Alcide de Gasperi ul. Ks Piotra Wawrzyniaka 2 O’Connor CS 70133 PL-62-052 KOMORNIKI (Pozna ) AU-6163 Western Australia... - Page 24 At Arjo, we are committed to improving the everyday lives of people affected by reduced mobility and age-related health challenges. With products and solutions that ensure ergonomic patient handling, personal hygiene, disinfection, diagnostics, and the effective prevention of pressure ulcers and venous thromboembolism, we help professionals across care environments to continually raise the standard of safe and digni ed care.
