INSTRUCTIONS FOR USE

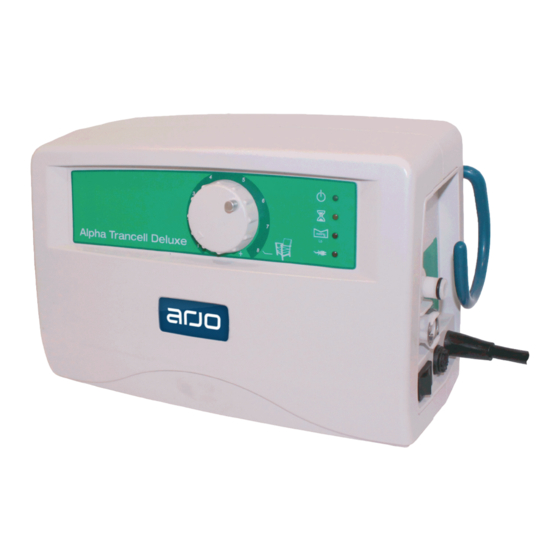

Alpha Trancell Deluxe
500934US-P_06 • 04/2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Alpha Trancell Deluxe and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Arjo Alpha Trancell Deluxe

Summary of Contents for Arjo Alpha Trancell Deluxe

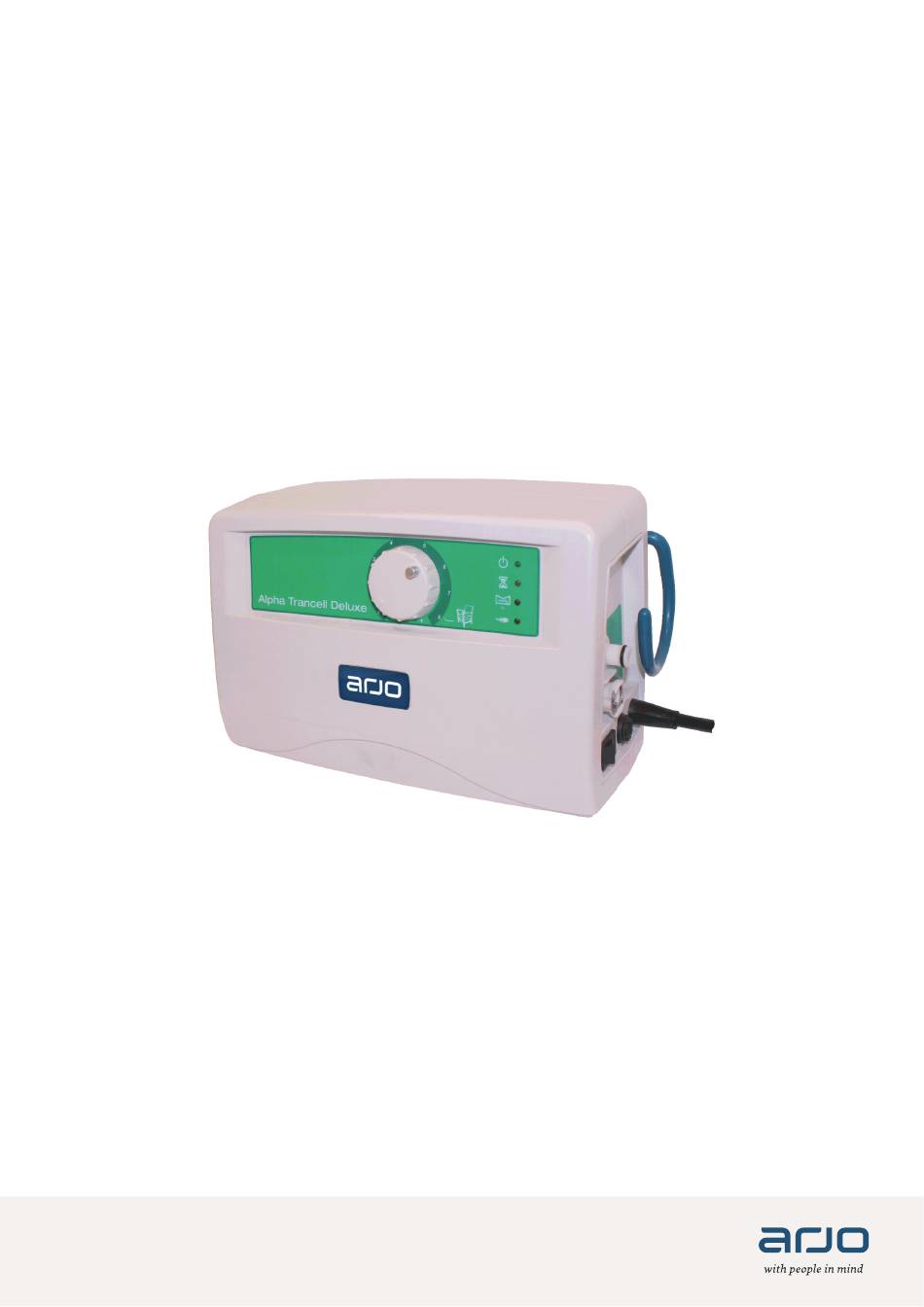

  • Page 1 INSTRUCTIONS FOR USE Alpha Trancell Deluxe 500934US-P_06 • 04/2019...
  • Page 2 Mandatory to read the Instructions for Use Design Policy and Copyright ® and ™ are trademarks belonging to the Arjo group of companies. © Arjo 2019. As our policy is one of continuous improvement, we reserve the right to modify designs without prior notice.

  • Page 3: Table Of Contents

    Alpha Trancell Deluxe Systems ........
  • Page 4 Technical Specification ..........17 Pump .

  • Page 5: General Safety

    • There is no Transport facility on the Alpha Trancell Deluxe seat cushion. • Only the pump and mattress combination as indicated by Arjo should be used. The correct function of the product cannot be guaranteed if incorrect pump and mattress combinations are used.
  • Page 6 Arjo for information on correct disposal. Expected Service Life The Alpha Trancell Deluxe pump has an expected service life of seven years. To maintain the condition of the pump, observe the service information. Do NOT use unapproved accessories or attempt to modify, disassemble or otherwise misuse the Alpha Trancell Deluxe system.

  • Page 7: Introduction

    The intended use of this product is to prevent and/or manage pressure ulcers for patients up to 120 kg (264 lb). The Alpha Trancell Deluxe system should be used as part of a prescribed plan of care (refer to “Indications” on page 5).

  • Page 8: Product Description

    Product Description Pump Unit Pressure Control Knob Power Indicator Wait Indicator Low Pressure Indicator Power Fail Indicator Suspension Hooks on Rear Case Tubeset Connections Fuse Holder Power:Connect / Power:Disconnect Switch Setting Up Instructions on Rear Case Alpha PREVENT Overlay Air Feed Tubes Pump Connectors Tube Protector Clip...
  • Page 9 Trancell II Overlay Rapid deflate tag Cover Air Feed Tubes Fixing Strap Cells Securing Apron Alpha Trancell Deluxe Overlay Rapid Deflate Top Cover Zips Transport Facility Cells Pump Connectors Corner Straps...
  • Page 10 Alpha Trancell Deluxe Mattress Replacement Rapid Deflate Top Cover Top Cover Zips Transport Facility Cells Pump Connectors Base Cover Foam Base Pad Straps Bottom Cover Zips Alpha Trancell Deluxe Seat Cushion Cover Straps Pump Connectors Cells...

  • Page 11: Clinical Applications

    2. Clinical Applications Indications The Alpha Trancell Deluxe systems are indicated for the prevention and/or management of pressure ulcers, when combined with an individualised, comprehensive pressure ulcer protocol: for example, repositioning, nutritional support, skin care. Selection should be based upon a holistic assessment of the patient’s individual care needs.

  • Page 12: Installation

    NOTE Trancell II overlays are supplied with separate connector adaptors to suit the Alpha Trancell Deluxe pump. Ensure these are fitted to the overlay pump connectors before use. When using the Trancell II mattress overlays, place protective cover over the mattress overlay and adjust fixing strap around overlay or bed mattress.
  • Page 13 Secure the seat cushion to the chair by using the fixing straps as shown in the following illustrations. Cautions • Do not use the Alpha Trancell Deluxe seat cushion without a foam cushion beneath it. • Always use the Alpha Trancell Deluxe seat cushion with the protective top cover.
  • Page 14 Position the protective cover over the seat cushion and ensure that the Alpha Trancell Deluxe logo is uppermost and at the front of the seat. To complete the...

  • Page 15: Controls And Indicators

    4. Controls and Indicators Controls Pressure Control This is situated on the front panel and is adjusted by the carer to suit the weight of the patient. Power:Connect/ This is situated on the side panel of the pump and is used to activate the unit and reset alarms.

  • Page 16: Operation

    NOTE If the operation of the pump changes during use, refer to “Troubleshooting Guide” on page 16 of this manual before calling a service engineer or contacting your local Arjo sales office WARNING Make sure that the mains power cable and mattress tubeset are positioned to avoid causing a trip or strangulation hazard, and are clear of moving bed mechanisms or other possible entrapment areas.
  • Page 17 Rotate the pressure control knob clockwise to increase and counterclockwise to decrease pressure. Initial Pressure Setting If you are using the Alpha Trancell Deluxe seat cushion, set the pressure control to the maximum position (8). If you are using a mattress, adjust the pressure for the appropriate patient weight.

  • Page 18: Rapid Deflate

    IMPORTANT • The Rapid Deflate facility is fitted to the Trancell II and Alpha Trancell Deluxe mattresses only. • In the event of a cardiac arrest, pull the Rapid Deflate tag firmly at the head end of the mattress and disconnect the tubeset connectors at the pump. Rapid Deflate Located at the head end of the mattress (on the same side as the tubeset) is a tag with a Rapid Deflate picture.

  • Page 19: Stopping Therapy

    • The Transport facility is fitted to the Alpha Trancell Deluxe mattress replacement and the mattress overlay only. • There is no Transport facility on the Alpha Trancell Deluxe seat cushion. Transport Mode The transport facility is located on the tubeset near the pump. The...

  • Page 20: Decontamination

    Facility or the country of use. If you are uncertain, you should seek advice from your local Infection Control Specialist. The Alpha Trancell Deluxe system should be routinely decontaminated between patients and at regular intervals while in use; as is good practice for all reusable medical devices.

  • Page 21: Routine Maintenance

    Arjo trained personnel to repair the system Service Period Arjo recommend that the Alpha Trancell Deluxe systems should be serviced after 12 months continuous running time, by an Arjo authorised service agent. Alpha Trancell Deluxe Pump...

  • Page 22: Troubleshooting Guide

    Check. See Pump not operating below. 4. No pump output. Check 5. Tubes not correctly fitted. Check. 6. Transport facility set to 90 degrees. (Alpha Trancell Deluxe only) Consistent Low Pressure 1. Rapid Deflate stopper not Check Alarm. inserted. Check 2.

  • Page 23: Technical Specification

    9. Technical Specification Pump Model: Alpha Trancell Deluxe Supply Voltage: 120 V Supply Frequency: 60 Hz Power Input: 14 VA Size: 248 x 160 x 116 mm (9.8 x 6.3 x 4.6”) Weight: 2.7 kg (6lb) Case Material: ABS Plastic...

  • Page 24: Pump Symbols

    Type BF Model number Power: Power: disconnect connect Mattress Information Part No. Description Cell Material Length Width Height AB037 Alpha Prevent 1850 TRA04 Trancell II Mattress Overlay 2006 Polyurethane ATD002DAR Alpha Trancell Deluxe OL 2040 ATD001DAR Alpha Trancell Deluxe MR 2040...

  • Page 25: Product

    Chlorine concentrations may vary from 250ppm to 10,000ppm depending on local policy and contamination status. If an alternative disinfectant is selected from the wide variety available, Arjo recommend that suitability for use is confirmed with the chemical supplier prior to use.

  • Page 26: Cleaning Symbols

    Wipe surfaces with cleaning Use solution diluted to 1000 ppm of solution, then wipe with a cloth Available Chlorine moistened with water and dry thoroughly Seat Information Alpha Trancell Deluxe Seat ATD003DAR Length: 470 mm Width: 455 mm Height: 50 mm ALT03...

  • Page 27: Electromagnetic Compatibility (Emc)

    EMI (electromagnetic interference) from external sources. Some procedures can help reduce electromagnetic interferences: • Use only Arjo cables and spare parts to avoid increased emissions or decreased immunity which can compromise the correct functioning of the equipment. • Ensure that other devices in patient-monitoring and/or life-support areas comply to accepted emissions standards.
  • Page 28 Guidance and manufacturer’s declaration – electromagnetic immunity Immunity test IEC 60601-1-2 test Compliance level Electromagnetic level environment – guidance Electrostatic ±2kV, ±4kV, ±8kV, ±2kV, ±4kV, ±8kV, Floors should be wood, concrete discharge (ESD) ±15kV air ±15kV air or ceramic tile. If floors are covered with synthetic material EN 61000-4-2 ±8kV contact...
  • Page 29 Guidance and manufacturer’s declaration – electromagnetic immunity Immunity test IEC 60601-1-2 test Compliance level Electromagnetic level environment – guidance Surge ±0.5kV, ±1kV, ±2kV, AC ±0.5kV, ±1kV, ±2kV, AC Mains power quality should be Mains Line to Ground Mains Line to Ground that of a typical commercial or hospital environment.
  • Page 30 Intentionally left blank...
  • Page 31 AUSTRALIA FRANCE POLSKA Arjo Australia Pty Ltd Arjo SAS Arjo Polska Sp. z o.o. 78, Forsyth Street 2 Avenue Alcide de Gasperi ul. Ks Piotra Wawrzyniaka 2 O’Connor CS 70133 PL-62-052 KOMORNIKI (Pozna ) AU-6163 Western Australia FR-59436 RONCQ CEDEX...
  • Page 32 At Arjo, we are committed to improving the everyday lives of people affected by reduced mobility and age-related health challenges. With products and solutions that ensure ergonomic patient handling, personal hygiene, disinfection, diagnostics, and the effective prevention of pressure ulcers and venous thromboembolism, we help professionals across care environments to continually raise...
